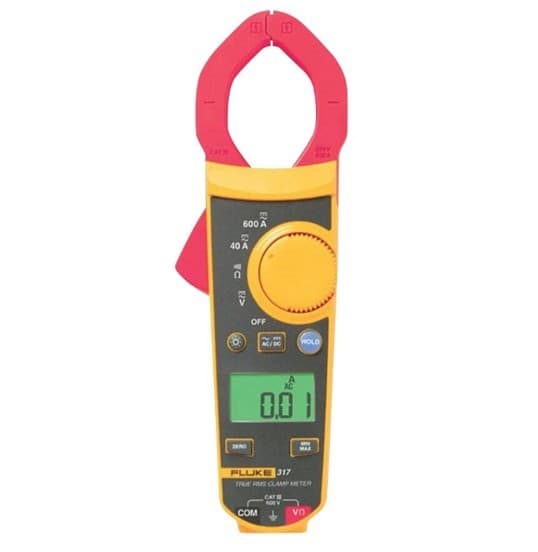

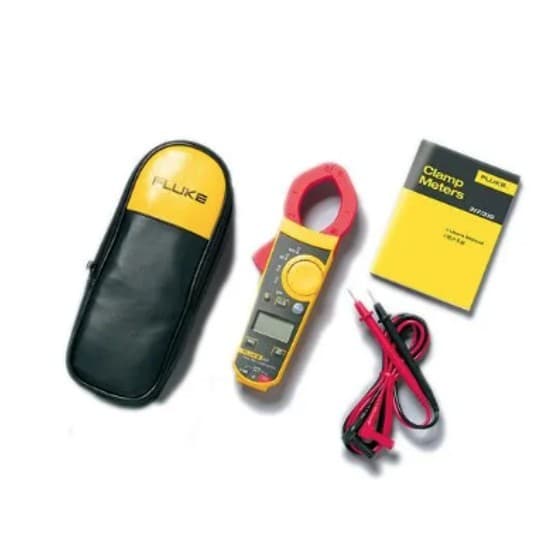

FLUKE-317-ETA Clamp Meters

igital display

6000 count resolution

Low battery Indication

Displays a signal when the batteries are below their required voltage

Power source

Three AAA IEC LR03 batteries

Clamp opening size

1.45 in (37 mm)

Jaw diameter

1.45 in (37 mm)

Dimensions (L x W x H)

9.21 in x 2.95 in x 1.37 in

(234.0 mm x 75.0 mm x 34.8 mm)

Weight

Approximately 13.5 oz (384 g) (batteries included)

Auto range

Available in Ohms

Safety

CE

EN/IEC 61010-1 and IEC 61010-2-032

Measurement Category: 600V CAT III

317 Electrical specifications

Current AC

Range

40.00 A, 600.0 A

Resolution

0.01 A, 0.1 A

Accuracy

1.6% ±6 digit (50-60 Hz) {40 A}

2.5% ±8 digit (60-500 Hz) {40 A}

1.5% ±5 digit (50-60 Hz) {600 A}

2.5% ±5 digit (60-500 Hz) {600 A}

Crest Factor add 2% into spec for CF > 2

3.0 Max @ 500 A, 2.5 Max @ 600 A

AC response

rms

Current DC

Range

40.00 A, 600.0 A

Resolution

0.01 A, 0.1 A

Accuracy

1.6% ±6 digit (40 A)

1.5% ±5 digit (600 A)

Voltage AC

Range

600.0 V

Resolution

0.1 V

Accuracy

1.5% ±5 digit (20-500Hz)

AC response

rms

Voltage DC

Range

600.0 V

Resolution

0.1 V

Accuracy

1% ±4 digit

Resistance

Range

400.0 Ω, 4000 Ω

Resolution

0.1 Ω, 1 Ω

Accuracy

1% ±5 digit

Continuity

≤ 30 Ω

Inrush

Integration time

N/A

Frequency

Range

N/A

Accuracy

N/A

Trigger Level

N/A
