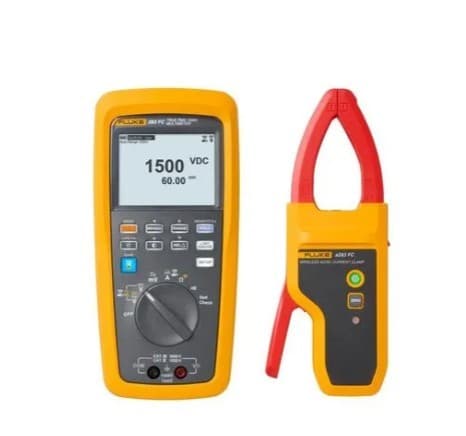

Fluke-283FC-PV Solar Digital Multimeter and Wireless Clamp Current Meter

function

period

Resolution

accuracy

AC volts [1]

6,000 V

0.001 V

1.0% + 3
(45 Hz to 500 Hz)

60.00 V

0.01 V

600.0 V

0.1 V

2.0% + 3
(500 Hz to 1 kHz)

1000 V

1 V

DC volts

6,000 V

0.001 V

0.09% + 3

60.00 V

0.01 V

600.0 V

0.1 V

1500 V

1 V

0.15% + 2

AC mV [1]

600.0 mV

0.1 mV

1.0% + 3 (45 Hz ~ 500 Hz)
2.0% + 3 (500 Hz ~ 1000 Hz)

DC mV

600.0 mV

0.1 mV

0.09% + 2

Continuing condition

600 Ω

1 Ω

Resistance

600.0 Ω

0.1 Ω

0.5% + 4

6.000 kΩ

0.001 kΩ

60.00 kΩ

0.01 kΩ

600.0 kΩ

0.1 kΩ

6.000 MΩ

0.001 MΩ

50.00 MΩ

0.01 MΩ

1.5% + 4

Electrical capacitance

1000 nF

1 nF

1.2% + 2

10.00 μF

0.01 μF

100.0 μF

0.1 μF

9999 μF

1 μF

10% normally.

frequency

99.99 Hz

0.01 Hz

0.1% + 2

999.9 Hz

0.1 Hz

9.999 kHz

0.001 kHz

99.99 kHz

0.01 kHz

AC VA (45~500Hz) [1]

360.0 VA

0.1 VA

2% + 1.0 VA

3.600 kVA

0.001 kVA

2% + 0.01 kVA

36.00 kVA

0.01 kVA

2% + 0.1 kVA

60.00 kVA

0.01 kVA

2% + 0.15 kVA

DC VA [1]

360.0 VA

0.1 VA

2% + 1.0 VA

3.600 kVA

0.001 kVA

2% + 0.01 kVA

36.00 kVA

0.01 kVA

2% + 0.1 kVA

90.00 kVA

0.01 kVA

2% + 0.25 kVA

MIN-MAX AVG

For direct current (DC) functions, the accuracy is in accordance with the accuracy value specified in the measurement characteristics, with a count accuracy of ± 12 for changes lasting longer than 350 ms (microseconds).

For AC (direct current) functions, the accuracy is in accordance with the accuracy value specified in the measurement characteristics, with a count accuracy of ± 40 for changes lasting longer than 900 ms (microseconds).

Environmental specifications

Operating temperature

-10 °C to 60 °C

Storage temperature

-30 °C to +70 °C

Humidity (no condensation)

0% to 90%, 10°C to 30°C

0% to 75%, 30°C to 40°C

0% to 45%, 40°C to 60°C

Warranty and protection

Electromagnetic compatibility

IEC 61326-1, IEC 61326-2-2, Portable, Group 1, Class A

Categories of overpressure levels

CAT III 1500 V, CAT IV 1000 V

Agency approval

ETL (AMER and EMEA), CSA (APAC), CE, UK CA

Drop test

Drop test from a height of 2 meters (6.5 feet).

Dust and water protection standards

IP52

Warranty

Limited lifespan

Mechanical and general specifications

Counting numbers

6000

size

22.5 cm x 10.5 cm x 5.7 cm (8.8 inches x 4.1 inches x 2.2 inches)

weight

0.7 kg (1.5 lbs)

Battery life

Typically > 150 hours, no backlight (3 AA alkaline batteries).

Typically > 100 hours when connected to a cordless clamp meter (3 AA alkaline batteries).

function

period

Resolution

accuracy

AC current (True-RMS) [2]

60 A

0.01 A

1.5% + 0.15 A, 45–500Hz

DC current [2]

60 A

0.01 A

1.5% + 0.15 A

General Specifications – Fluke a283 FC Cordless Clamp Meter

Operating temperature

-10 °C to 60 °C

Storage temperature

-30 °C to +70 °C

Humidity (no condensation)

0% to 90%, 5°C to 30°C

0% to 75%, 30°C to 40°C

0% to 45%, 40°C to 60°C

Warranty and protection

Electromagnetic compatibility

IEC 61326-1, IEC 61326-2-2, Portable, Group 1, Class A

Categories of overpressure levels

CAT III 1500 V, CAT IV 1000 V

Agency approval

ETL (AMER and EMEA), CSA (APAC), CE, UK CA

Drop test

Drop test from a height of 2 meters (6.5 feet).

Dust and water protection standards

IP52

Warranty

1 year

Mechanical and general specifications

size

226.0 x 91.0 x 42.0 mm (8.9 x 3.6 x 1.7 inches)

The opening of the forceps.

34 mm (1.34 inches)

weight

0.375 kg (13.2 oz)

Battery life

Typically > 80 hours (with 2 AAA alkaline batteries)

feature

LED signal

Displays the wireless connection and data transmission status.

Battery signal

Show battery status.

On/Off button

On/Off

Zero button

The function makes DC zero.
