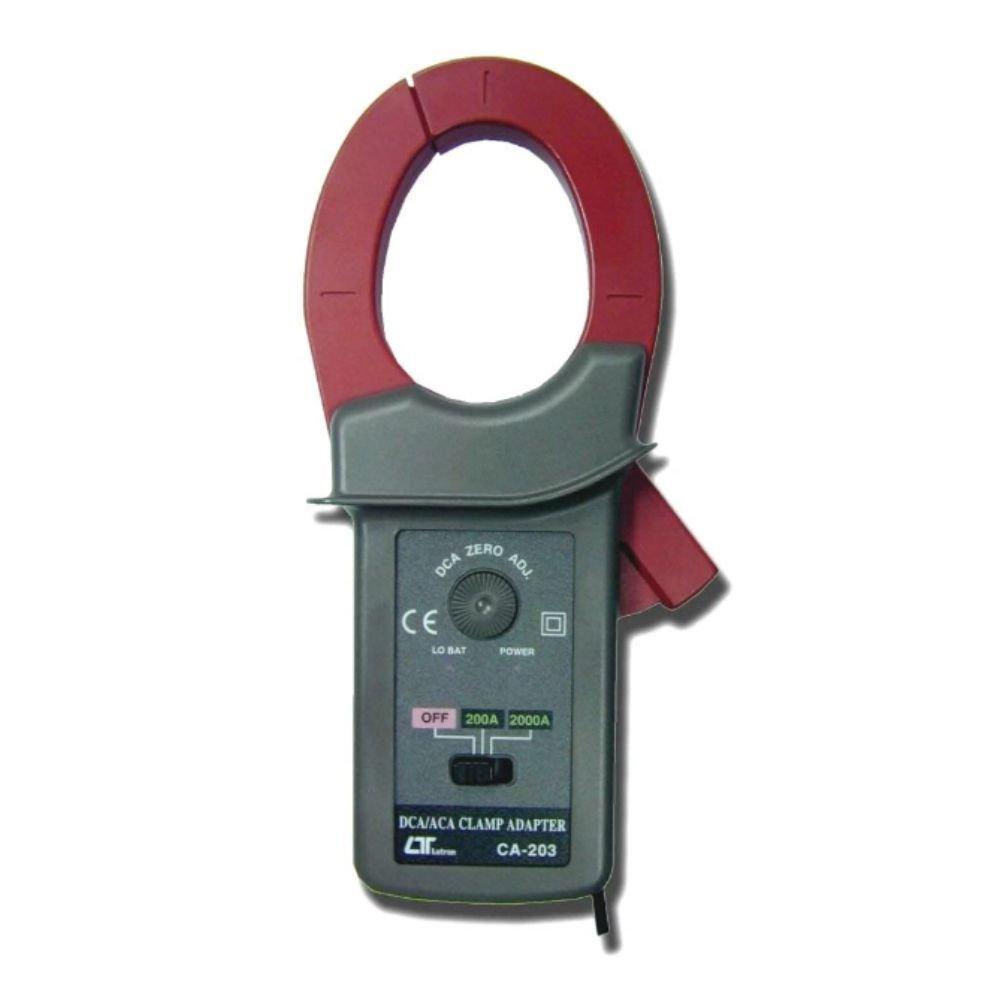

Lutron CA-203 อะแดปเตอร์แคลมป์ Clamp Adapter

Range

ACA

0 to 2,000 ACA,

2 ranges ( 200 ACA, 2,000 ACA ).

DCA

0 to 2,000 DCA,

2 ranges ( 200 DCA, 2,000 DCA )

Output

ACA

1 AC mV per 1 ACA

DCA

1 DC mV per 1 DCA

Accuracy

ACA

200 A ± ( 1.5 % + 1 DCA )

2,000 A ± ( 2 % + 5 ACA ) * Accuracy is tested under the range 1,500 A

DCA

200 A ± ( 1.5 % + 1 ACA )

2,000 A ± ( 2 % + 5 ACA ) * Accuracy is tested under the range 1,500 A

Measurements

ACA
DCA

Current ranges

2 ranges (200 ACA, 2,000 ACA)
2 ranges (200 DCA, 2,000 DCA)

Clamp frequency response

ACA frequency response is from 40 to 400 Hz, specification be tested on sine wave 50/60 Hz.

DCA zero adj.

External knob, adj. limited within approx. (30 to 50 DCA)

Range selection

Manual slide switch select

Operating Temperature

0 to 50 °C

Operating Humidity

Less than 80% RH.

Power Supply

006P, MN1604 (PP3) DC 9V battery or equivalent, recommend use the duty battery.

Power Consumption

Approx. 15 mA.

Dimensions

Meter : 210 x 64 x 33 mm
Jaw : 86 mm ( 3.4 inch ) - outside.

Current Sensor

Hall effect sensor.

Zero adjustment

External knob, adj. limited within approx. (30 to 50 DCA).

Battery

006P, MN1604 (PP3) DC 9V battery or equivalent, recommend use the alkaline or heavy duty battery.

Weight

414 g (with battery).

Max. Jaw Open Size

Jaw : 86 mm - outside.

Accessories Included

Operation manual : 1
