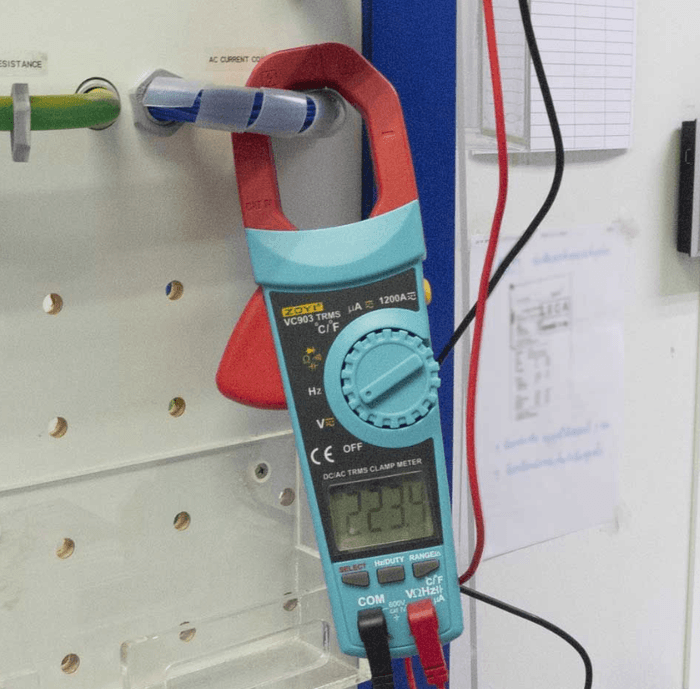

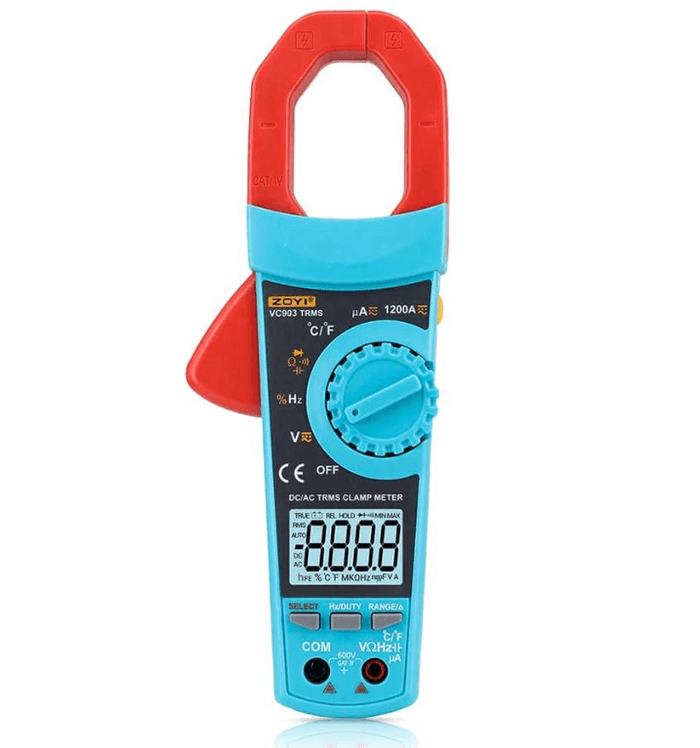

ZOYI VC903 แคลมป์มิเตอร์ (True RMS, AC Current, DC/AC Voltage)

VC903 | ฟังก์ชั่นการวัด

✔ Auto / Manual ranging

✔ True RMS

✔ Data hold

✔ Backlight

✔ Low battery alert

✔ Auto power off

✔ Flashlight

VC903 | ช่วงการวัด

DC Voltage

Range 600.0mV / 6.000V / 60.00V / 600.0V / 1000V Accuracy ±(0.5%+3)

AC Voltage

Range 600.0mV / 6.000V / 60.00V / 600.0V / 750V Accuracy ±(1.0%+3)

DC Current

Range 600.0μA / 6000μA Accuracy ±(1.2%+3)

Range 60.00A / 600.0A / 1200A Accuracy ±(2.0%+30)

AC Current

Range 600.0μA / 6000μA Accuracy ±(1.5%+3)

Range 60.00A / 600.0A / 1200A Accuracy ±(2.0%+30)

Resistance

Range 600.0Ω / 6.000kΩ / 60.00kΩ / 600.0kΩ / 6.000MΩ Accuracy ±(0.5%+3)

Range 60.00MΩ Accuracy ±(1.5%+3)

Capacitance

Range 9.999nF Accuracy ±(5.0%+20)

Range 99.99nF / 999.9nF / 9.999μF / 99.99μF / 999.9μF Accuracy ±(2.0%+5)

Range 9.999mF Accuracy ±(5.0%+5)

Frequency

Range 99.99Hz / 999.9Hz / 9.999kHz / 99.99kHz / 999.9kHz / 9.999MHz Accuracy ±(0.1%+2)

Duty Cycle

Range 1%-99% Accuracy ±(0.1%+2)

Temperature

Range -20℃~1000℃ / -4℉~1832℉ ±(2.5%+5)

VC903 | Power Supply

Battery DC 9V

VC903 | ขนาดสินค้า

Core Jaw ø 37mm (Max. ø 60mm)

Dimension / Weight 240 x 90 x 45mm / 400g

VC903 | อุปกรณ์ที่มาในชุด

• Battery DC 9V
• 2 x Test lead
• 1 x Standard user manual

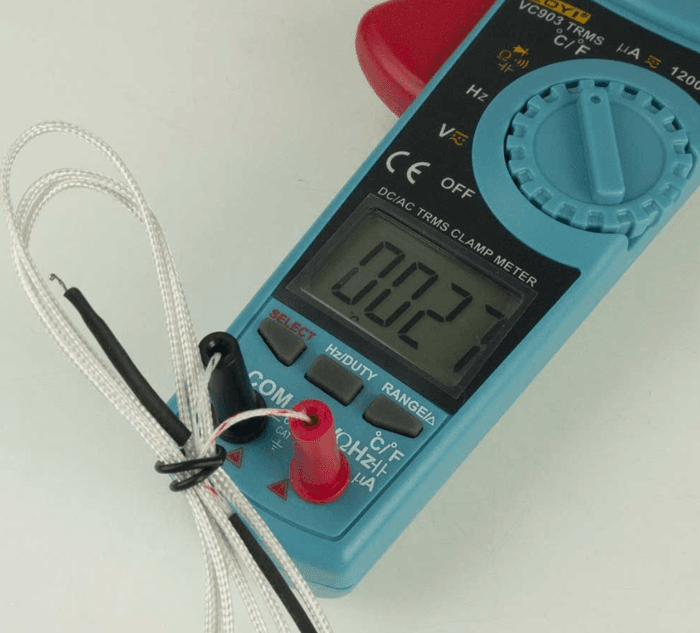

• 1 x Thermocouple probe
• 1 x Black soft case
