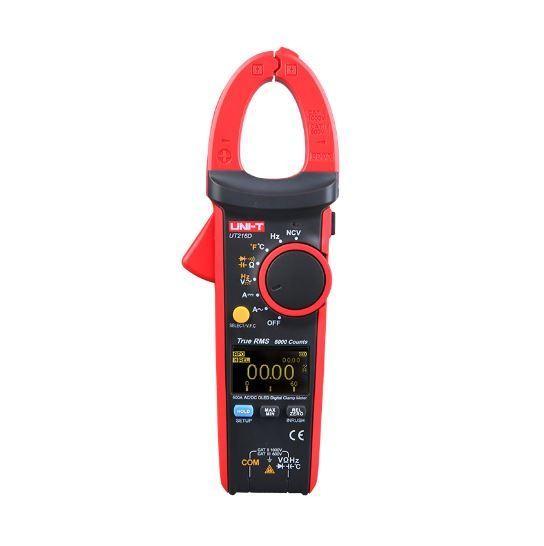

UT216 series digital clamp meters are designed for measuring high frequency currents (up to 400Hz) in server rooms, IT systems, etc. Its double injection design gives users a more comfortable grip and enhanced durability. UT216’s 6000 count display also provides more precise readings for users.
Index
UT216C ฟังก์ชั่นการวัด
วัดไฟฟ้า
UT216C จุดเด่น
- True RMS
- Auto range, 3 times/s sampling rate
- MAX/MIN/Relative modes
- Flashlight
- NCV, non-contact AC voltage testing.
UT216C ช่วงการวัด
Alternate Current 60A/600A ± (2.5%+5)
Direct Current 60A/600A ± (2.5%+5)
Alternate Voltage 6V/60V/600V/750V ±(1.2%+5)
Direct Voltage 600mV/6V/60V/600V/1000V ±(0.8%+1)
Resistance 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ ±(1%+2)
Capacitance 60nF/600nF/6μF/60μF/600μF/6mF/60mF ±(4%+5)
Frequency 10Hz ~ 1MHz ±(0.1%+4)
Temperature -40°C ~ 1000°C ±(2%+10)*
UT216C Power Supply
1.5V battery (R03) x 3
UT216C ขนาดสินค้า
Product net weight UT216A: 280g; UT216B/C/D: 231.7g
Product size 220mm x 75mm x 40mm
UT216C อุปกรณ์ที่มาในชุด
Batteries, test leads, point contact temperature probe (UT216C/UT216D)
UT216C ข้อมูลจำเพาะ
Standard individual packing Gift box, carrying bag, English manual
Standard quantity per carton 40pcs
