CLAMP LOGGER LR5051 เครื่องบันทึกแคล์มมิเตอร์ 2 แชนแนลCLAMP LOGGER LR5051 เครื่องบันทึกแคล์มมิเตอร์ 2 แชนแนลCLAMP LOGGER LR5051 เครื่องบันทึกแคล์มมิเตอร์ 2 แชนแนลCLAMP LOGGER LR5051 เครื่องบันทึกแคล์มมิเตอร์ 2 แชนแนลCLAMP LOGGER LR5051 เครื่องบันทึกแคล์มมิเตอร์ 2 แชนแนลCLAMP LOGGER LR5051 เครื่องบันทึกแคล์มมิเตอร์ 2 แชนแนล
HIOKI

CLAMP LOGGER LR5051 เครื่องบันทึกแคล์มมิเตอร์ 2 แชนแนล

รหัสสินค้า

LR5051

฿12,000.00

ภาพรวม

LR5051 เครื่องบันทึกแคลมป์มิเตอร์ 2 แชนแนล บันทึกข้อมูล 60,000 ค่า/ 1 แชนแนล ช่วงการวัด AC Current 500.0 mA to 1000 A AC rms Load Current of 50/60 Hz ยี่ห้อ Hioki, Japan **ในชุดไม่รวม Clamp Sensor (อุปกรณ์เสริมแยกจำหน่าย)**

Index

    LR5051 | ฟังก์ชั่นการวัด

    AC Current 2 channels (used with the optional current sensor; load current 2ch, leak current 2ch, or load/leak each 1ch)
    Caution: Current and leak current that occur intermittently cannot be measured.

    LR5051 | จุดเด่น

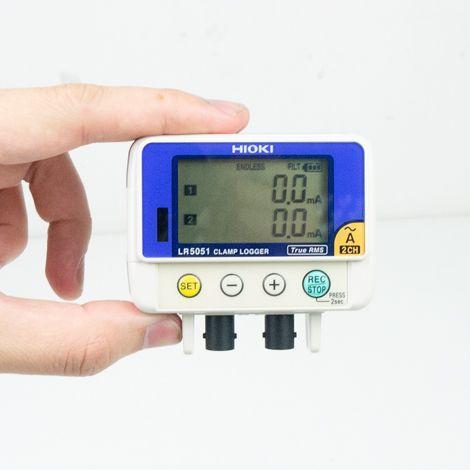

    • Easily mount the light-weight , pocket-sized loggers in tight spaces
    • Easy-to-see dual display
    • Transfer data to PC even during recording
    • Replace batteries while recording (30 second limit)
    • 3 times the memory capacity compared to predecessor (Record 60,000 data per channel)
    • Record without missing fluctuations in STAT mode
    • Measurement data is preserved even after the battery dies
    • Worry-free backup preserves recorded data even if a new measurement is started by mistake
    CLAMP LOGGER LR5051 เครื่องบันทึกแคล์มมิเตอร์ 2 แชนแนล


    LR5051 | ช่วงการวัด

    500.0 mA to 1000 A AC rms, 5 range (depends on current sensor in use)


    When Using 9669 : 1000 A range
    When Using CT6500 : 50.00 A/ 500.0 A range
    When Using 9695-02 : 5.000 A/ 50.00 A range
    When Using 9675 : 500.0 mA/ 5.000 A range
    When Using 9657-10 : 500.0 mA/ 5.000 A range

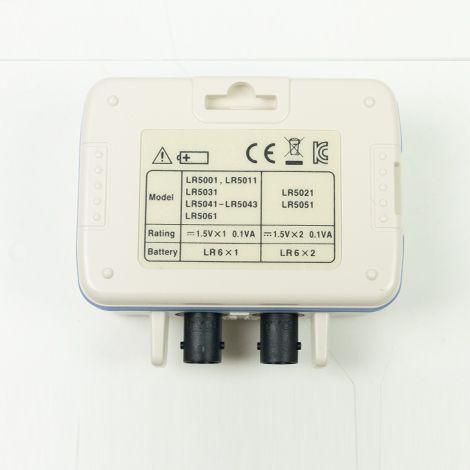

    LR5051 | Power Supply

    LR6 (AA) Alkaline battery ×2, Battery life: Approx. 1 year (Instantaneous recording, with 1-minute interval and auto power saving, at 20 °C), Approx. 1 month (Instantaneous recording, with 1-second interval at 20 °C)

    LR5051 | ขนาดสินค้า

    79 mm (3.11 in) W × 70 mm (2.76 in) H × 37 mm (1.46 in) D

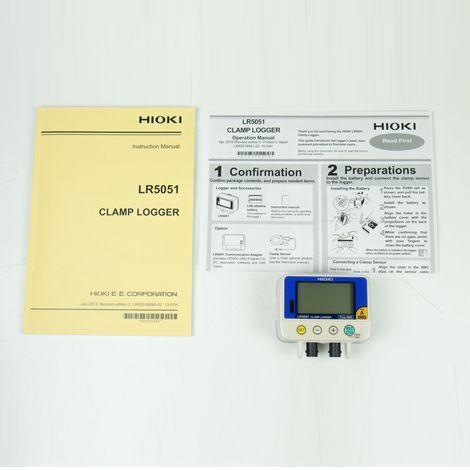

    LR5051 | อุปกรณ์ที่มาในชุด

    LR6 (AA) Alkaline battery (built-in internal) × 2

    Instruction manual × 1

    Operation guide × 1

    LR5051 | อุปกรณ์เสริม

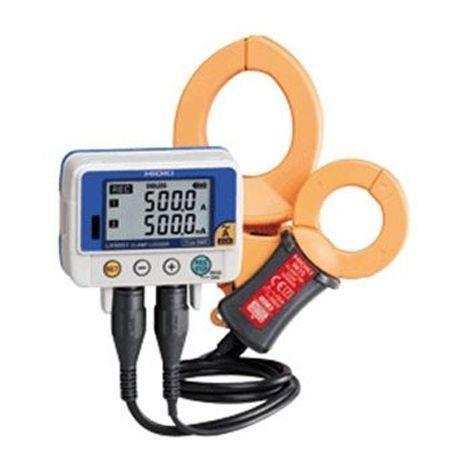

    Current sensors

    CLAMP ON LEAK SENSOR 9675

    CLAMP ON LEAK SENSOR 9657-10

    CLAMP ON SENSOR CT6500

    CLAMP ON SENSOR 9669

    CLAMP ON SENSOR 9695-02

    CONNECTION CABLE 9219


    For data acquisition to PC

    COMMUNICATION ADAPTER LR5091

    DATA COLLECTOR LR5092


    For fixing

    MAGNETIC STRAP Z5020

    LR5051 | ข้อมูลจำเพาะ

    Measurement items: AC Current 2 channels (used with the optional current sensor; load current 2ch, leak current 2ch, or load/leak each 1ch)
    Caution: Current and leak current that occur intermittently cannot be measured.

    Measurement range: 500.0 mA to 1000 A AC rms, 5 range (depends on current sensor in use)

    Basic accuracy: ±2.0% rdg. ±0.13% f.s. (main unit + current sensor accuracy, at 500.0 A range, 50/60 Hz)
    Note: Basic accuracy is typical value, only main unit accuracy: ±0.5 %rdg. ±5 dgt., must added clamp sensor accuracy, refer to the detailed catalog

    Storage capacity: Instantaneous value mode: 60,000 data/ch, Statistical value mode: 15,000 data/ch

    Recording interval: 1 to 30 sec., 1 to 60 min., 15 selections

    Recording modes: Instantaneous recording: at every recording interval
    Statistical value recording: Measure at one second intervals, and record the instantaneous, maximum, minimum, and average values within every recording interval

    Recording methods: One-time recording: Stop recording when the memory capacity is full
    Endless recording: Continue recording even when the memory capacity is full (old data is overwritten)
    Start: Logger button operation or scheduled time
    Stop: Logger button operation or scheduled time, or auto-stop when the memory capacity is full (at one-time recording)

    Other functions: Always backs up last recorded data; backs up recorded data and setting conditions when battery power is low; guarantees approx. 30 sec. of recording operation and clock while battery is replaced

    Interfaces: Infrared optical communications with LR5091, LR5092-20

    Power supply: LR6 (AA) Alkaline battery ×2, Battery life: Approx. 1 year (Instantaneous recording, with 1-minute interval and auto power saving, at 20 °C), Approx. 1 month (Instantaneous recording, with 1-second interval at 20 °C)

    Dimensions and mass: 79 mm (3.11 in) W × 70 mm (2.76 in) H × 37 mm (1.46 in) D, 165 g (5.8 oz)

    Included accessories: LR6 (AA) Alkaline battery (built-in internal) × 2, Instruction manual × 1, Operation guide × 1
