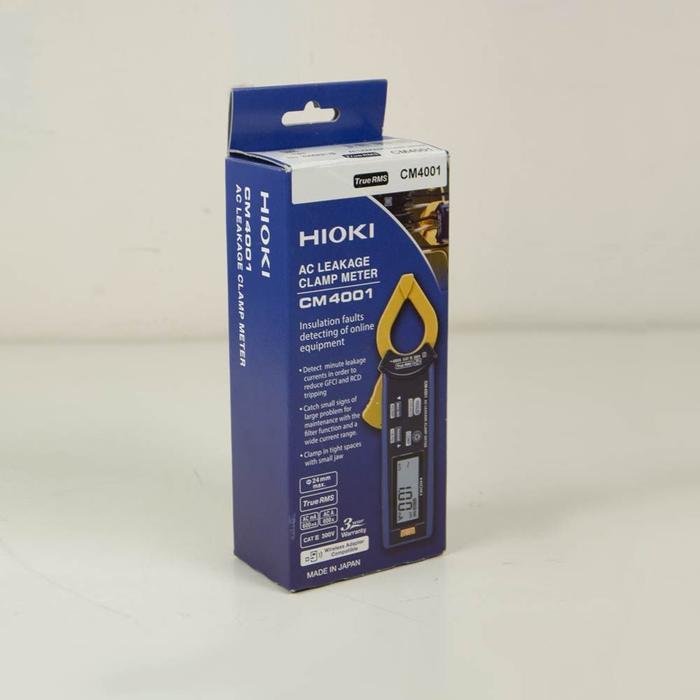

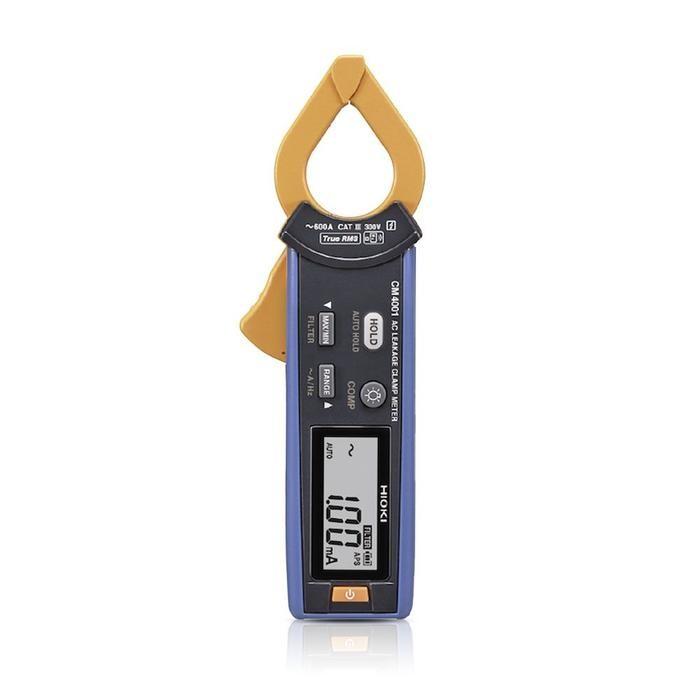

HIOKI CM4001 แคลมป์วัดไฟรั่ว AC Leakage Current 600A (True RMS)

CM4001 | ฟังก์ชั่นการวัด

AC Current

Frequency

Crest factor

Harmonic levels [With Z3210 installed]

CM4001 | จุดเด่น

Easily transfer measurement data to your smartphone or tablet by using our free app GENNECT Cross or to an Excel® file. (Wireless Adapter Z3210 is necessary)

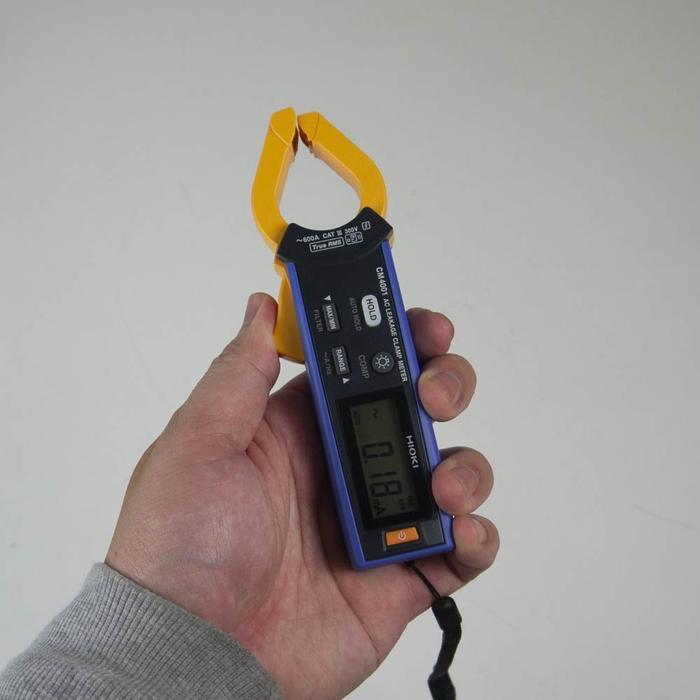

Slim jaws let you work with ease

Measure everything from leakage to load

Identify intermittent GFCI and RCD trips to prevent unplanned equipment downtime by testing for earth leakage current

Find issues faster with comparator function

CM4001 | ช่วงการวัด

AC Current range: 60.00 mA/ 600.0 mA/ 6.000 A/ 60.00 A/ 600.0 A, 5 ranges (40 Hz to 1 kHz, True RMS)
Basic accuracy (45-66 Hz): ±1.5% rdg ±5 dgt (60.00 mA to 6.000 A), ±2.5% rdg ±5 dgt (60.00 A to 600.0 A)
Guaranteed accuracy: from 0.60 mA to 600.0A

Frequency range: 40.0 Hz to 999.9 Hz

Crest factor: 4.5 (4000 counts or less)
3 (more than 4000 counts, 6000 counts or less)

Harmonic levels: [With Z3210 installed] Current harmonic levels up to 30th, Content factor, Total harmonic distortion ratio
*Harmonics can be displayed with our free app GENNECT Cross.

CM4001 | Power Supply

LR03 alkaline battery × 1; Continuous operating time: 32 hr. (without Z3210 installed), 16 hr. (with Z3210 installed and using wireless communications)

CM4001 | ขนาดสินค้า

37 mm (1.46 in) W × 160 mm (6.30 in) H × 27 mm (1.06 in) D, 115 g (4.1 oz.)

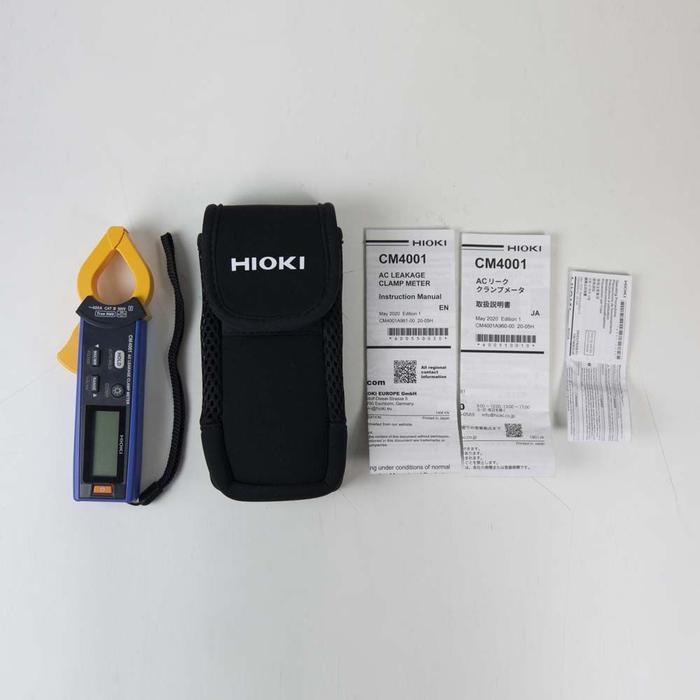

CM4001 | อุปกรณ์ที่มาในชุด

Carrying case × 1

Strap × 1

Instruction manual × 1

Operating Precautions × 1

LR03 alkaline battery × 1

CM4001 | อุปกรณ์เสริม

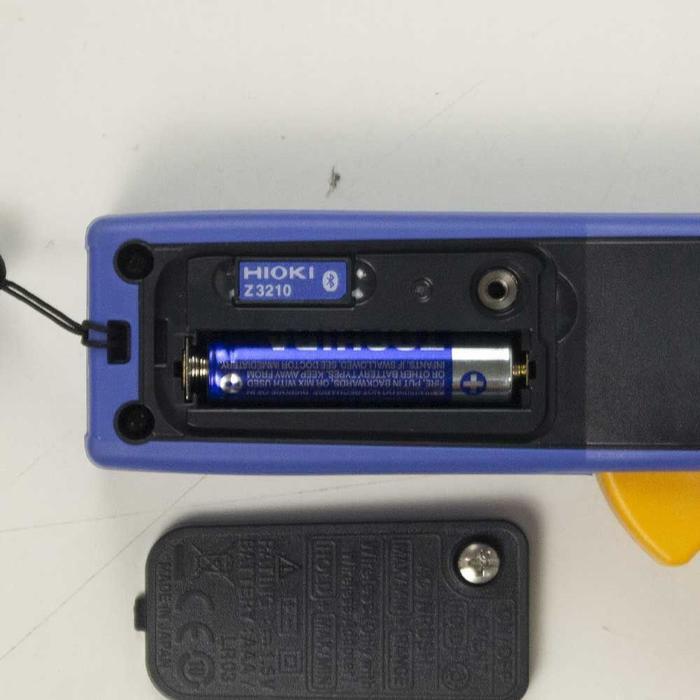

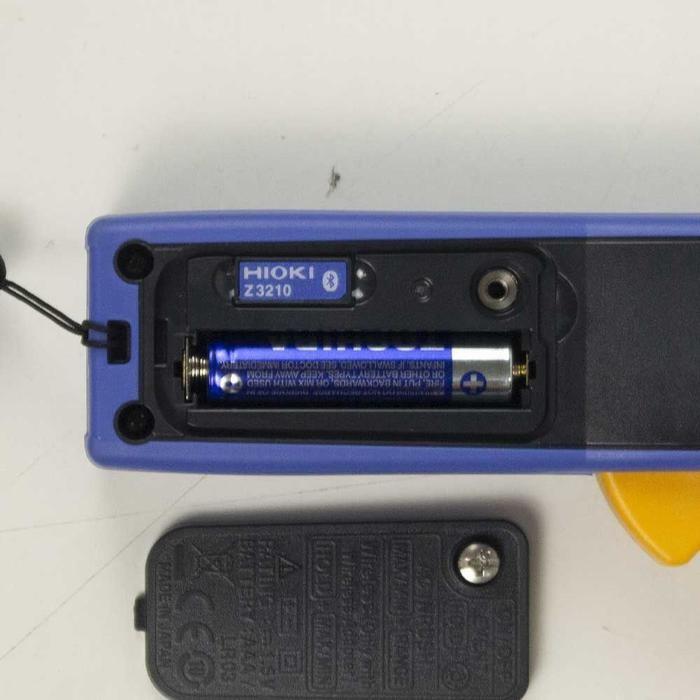

WIRELESS ADAPTER Z3210

CM4001 | ข้อมูลจำเพาะ

AC Current range: 60.00 mA/ 600.0 mA/ 6.000 A/ 60.00 A/ 600.0 A, 5 ranges (40 Hz to 1 kHz, True RMS)
Basic accuracy (45-66 Hz): ±1.5% rdg ±5 dgt (60.00 mA to 6.000 A), ±2.5% rdg ±5 dgt (60.00 A to 600.0 A)
Guaranteed accuracy: from 0.60 mA to 600.0A

Frequency range: 40.0 Hz to 999.9 Hz

Crest factor: 4.5 (4000 counts or less)
3 (more than 4000 counts, 6000 counts or less)

Filter function: Cut off frequency: 180 Hz ±30 Hz at filter ON (-3 dB)

Harmonic levels: [With Z3210 installed] Current harmonic levels up to 30th, Content factor, Total harmonic distortion ratio
*Harmonics can be displayed with our free app GENNECT Cross.

Other functions: Comparator function, record Max/Min/Avg value, backlight, data hold, auto power off, AC inrush function

Display: Display refresh rate: 5 times/s

Power supply: LR03 alkaline battery × 1; Continuous operating time: 32 hr. (without Z3210 installed), 16 hr. (with Z3210 installed and using wireless communications)

Core jaw diameter: φ 24 mm (0.94 in)

Dimensions and mass: 37 mm (1.46 in) W × 160 mm (6.30 in) H × 27 mm (1.06 in) D, 115 g (4.1 oz.)

Included accessories: Carrying case × 1, Strap × 1, Instruction manual × 1, Operating Precautions × 1, LR03 alkaline battery × 1
