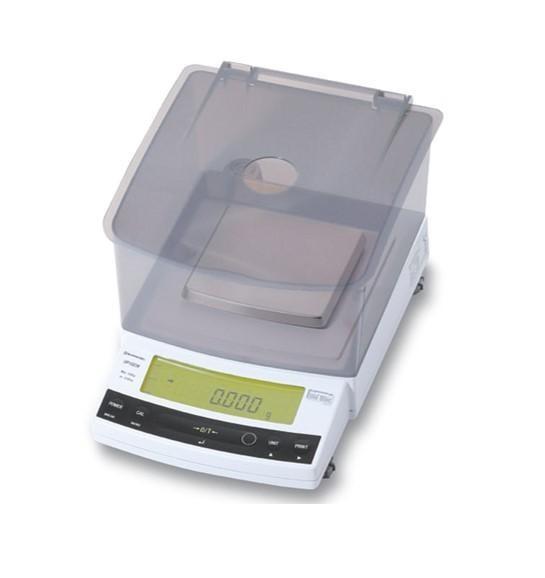

เครื่องชั่งน้ำหนักดิจิตอล 620g x 0.001g Pan size 108 x 105 mm หน้าจอ LCD Backlight, RS232C Interface ยี่ห้อ Shimadzu
UP623Y ฟังก์ชั่นการวัด
เครื่องชั่งดิจิตอล
UP623Y จุดเด่น
- High-speed weighing significantly improves efficiency of weighing operations.
- Using the highly impact-resistant UniBloc sensor minimizes downtime due to malfunctions.
Engineered with the impact-resistant UniBloc sensor, they pass endurance testing with one million cycles.*Engineered with the impact-resistant UniBloc sensor, they pass endurance testing with one million cycles.*
* Endurance Testing
Method: A 1-kg weight is moved on and off the pan at 1.5-second cycles.
Pass/fail criterion: Satisfies Shimadzu standards for routine inspections after the on-off cycles.
Note: Japan's Measurement Act specifies endurance testing to 100,000 cycles. UP series balances are tested to over ten times that level.
UP623Y ช่วงการวัด
620 g
UP623Y ขนาดสินค้า
Pan Size : Approx. 113 x 110 mm
Weight : Approx. 2.7 kg
UP623Y อุปกรณ์เสริม
Ionizer for Electronic Balance (Static Remover) STABLO-AP
Printer EP-100
Printer EP-110
RS-232C Cable 25P-9P (1.5 m)
USB–Serial Replacement Kit
Application Keyboard AKB-301
Windbreak Set (for large pan)
Glass Windbreak WBC-102
Large Size Windbreak WBC-502
In-Use Protective Cover (3 pcs) (For Large-Pan Models with 0.01 g Min. Display Value)
In-Use Protective Cover (5 pcs) (For Large-Pan Models with 0.1 g Min. Display Value)
In-Use Protective Cover (5 pcs) (For Small-Pan Model)
In-Use Protective Cover (5 pcs) (For Display and Key Part)
Animal Bucket Set (for Large Pan Models with 0.01 g Minimum Display Value)
Animal Bucket Set (for Large Pan Models with 0.1 g Minimum Display Value)
Speci¡c Gravity Measurement Kit SMK-101A (For Large Pan Model) (Up to approximately 2kg for weighing capacity)
Speci¡c Gravity Measurement Kit SMK-102 (For Small Pan Model)
Remote Display RDB-201
Remote Display RDB-202
Relay Output Interface IFB-RY1
RY1 Connection Cable
AC Adapter
UP623Y ข้อมูลจำเพาะ
Minimum display 0.001g
External Calibration Weight Range for Span Calibration 100 to 620g
Repeatability (at Weighing Capacity) ≦0.001g
Linearity ± 0.002g
Response Time*1 Approx. 1 sec.
Sensitivity Stability Against Temperature Range ± 3 ppm/°C (10 to 30°C)
