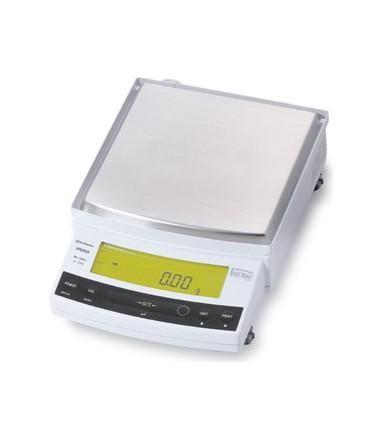

Shimadzu เครื่องชั่งดิจิตอล 1000 to 6200g / 0.01g หน้าจอ LCD พร้อม Backlight , RS232 Interface ยี่ห้อ Shimadzu, Japan
Index
UP6202Y | ฟังก์ชั่นการวัด
เครื่องชั่งดิจิตอล
UP6202Y | จุดเด่น
Printout with Data and Time
Leaves ISO-Compatible Calibration Record
LCD Screen with Backlight
Comparator Display
Comparator Output
Measuring Carats
Computer Connection Function
Piece Counting Function
Specific GravityMeasurement Function
UP6202Y | ช่วงการวัด
1000 to 2200 g
UP6202Y | Power Supply
AC adapter
UP6202Y | ขนาดสินค้า
Main body dimensions (mm) approx 190W X 317D X 81H
Pan Size Approx. 176 x 189 mm
Weight Approx. 2.9 kg
UP6202Y | อุปกรณ์ที่มาในชุด
Balance main body
Pan supporter cap
Pan
AC adapter
In-use protective cover
Instruction manual (incl. operation explanation sheet)
UP6202Y | อุปกรณ์เสริม
Ionizer for Electronic Balance (Static Remover) STABLO-AP
Printer EP-100
Printer EP-110
RS-232C Cable 25P-9P (1.5 m)
USB–Serial Replacement Kit
Application Keyboard AKB-301
Windbreak Set (*1)
Windbreak Set (for large pan) (*2)
Glass Windbreak WBC-102
Large Size Windbreak WBC-502
In-Use Protective Cover (3 pcs) (For Large-Pan Models with 0.01 g Min. Display Value)
In-Use Protective Cover (5 pcs) (For Large-Pan Models with 0.1 g Min. Display Value)
In-Use Protective Cover (5 pcs) (For Small-Pan Model)
In-Use Protective Cover (5 pcs) (For Display and Key Part)
Animal Bucket Set (for Large Pan Models with 0.01 g Minimum Display Value)
Animal Bucket Set (for Large Pan Models with 0.1 g Minimum Display Value)
Speci¡c Gravity Measurement Kit SMK-101A (For Large Pan Model) (Up to approximately 2kg for weighing capacity)
Speci¡c Gravity Measurement Kit SMK-102 (For Small Pan Model)
Remote Display RDB-201
Remote Display RDB-202
Relay Output Interface IFB-RY1
RY1 Connection Cable
AC Adapter (*3)
*1: Included standard with small pan models with 0.001 g minimum display value.
*2: Included standard with large pan models with 0.01 g minimum display value.
*3: Included standard with main unit.
UP6202Y | ข้อมูลจำเพาะ
Capacity 6200g
Minimum display 0.01g
Calibration range with external weights 1000 - 6200g
Repeatability (σ) [count] ≤1
Linearity [count] ±2
Ambient temperature and humidity 5 - 40°C 30 - 85%(No condensation)
Temperature coefficient of sensitivity [ppm/°C](10~30[°C]) ±3
Display LCD with backlight
Rated electric power supply DC 12V, 1A
Data I/O RS-232C, DATA I/O, AUX, KEY Connector
Pollution Degree* 2
Overvoltage Category* II
Altitude Up to 2000 m
Installation Site device may only used indoors
AC adapter (primary) AC100-240V,0.3A 50/60Hz May differ depending on the AC adapter.
Major functions and features ISO/GLP/GMP conformance
Other functions
Analog display, % display, PCS, User unit, Animal weighing, Specific gravity measurement S/W, Checkweighing
