เครื่องชั่งน้ำหนักดิจิตอล Analytical Balance 220g / 102g Built-in calibration weight RS232 Interface ยี่ห้อ Shimadzu, Japan
Index
AP225WD | ฟังก์ชั่นการวัด
เครื่องชั่งน้ำหนักดิจิตอล Analytical Balance
AP225WD | จุดเด่น
Smart Automatic Door™ Improve Work Efficiency
Touchless Sensors Enable Hygienic Operation
Adjustable Internal Windbreak Plate Improves Stability and Response
Equipped Standard with a STABLO™-AP Ionizer
High Speed - Fast weighing response
Stress Free - A variety of accessories and options suitable for semi-micro measurements
Save Your Operation

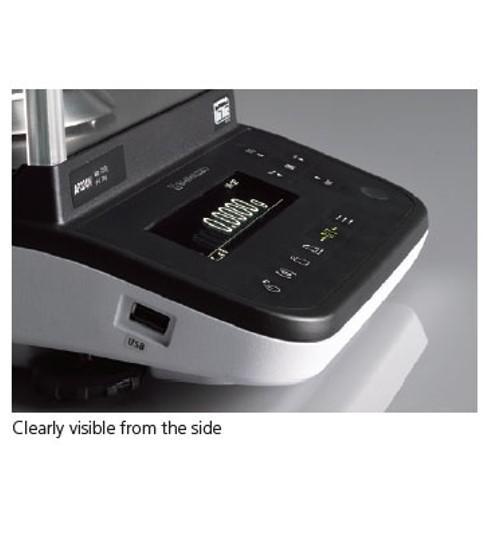

Easy-to-Read Organic EL Display
AP225WD | ช่วงการวัด
Capacity 220 g / 102 g
Minimum Display 0.1 mg / 0.01 mg
AP225WD | Power Supply
AC100-240 V, 0.32 A 50/60 Hz (*7)
AP225WD | ขนาดสินค้า
Approx. W212 × D411 × H345 mm (power supply unit included)
Approx. 7.9 kg
AP225WD | อุปกรณ์ที่มาในชุด
-
AP225WD | อุปกรณ์เสริม
Static Electricity Remover STABLO-AP Ionizer
EP-100 Printer
EP-110 Printer (Multifunction Printer with Organic Liquid Crystal Display)
Label Roll Paper for EP-100/110 (10 Rolls)
Internal Windbreak Plate (Minimum Display 0.1 mg, for W/X/Y Series)
Internal Windbreak Plate Kit (Minimum Display 0.01 mg, for W Series)
SMK-601 Specific Gravity Measurement Kit
AP Holder (included standard with AP225W-AD/AP225W models)
AC Adapter (for W/X/Y Series)
AC Adapter (for W-AD Series Balances)
AC Adapter (for W-AD Series STABLO-AP Ionizers)
Display Protective Cover (Set of 5)
USB Cable Assembly (2m) with Core
RS-IO Adapter Cable (for Connecting EP-80/90)
AP225WD | ข้อมูลจำเพาะ
Calibration Weight Built-in(*1)
External Calibration Weight Range for Span Calibration (recommended weight value)
95 to 220.00090 g (200 g)
Repeatability (at weighing capacity) 0.1 mg / 0.05 mg
Repeatability (for Low Loads) 0.01 mg (for 5 g load)
Minimum Weight(*2) 20 mg(*3)
Linearity ±0.2 mg /±0.1 mg
Response Time for Trace Measurements(*4,5) 2 sec.
Response Time(*5) 2 sec./8 sec.
Funtions
USB Host (Type A)
USB Device (Type B)
Recipe Compounding
HPLC Buffer Solution Preparation
mol Conversion Function
Sample (Concentration) Preparation
Inspection Support Function
Clock-CAL
Internal Windbreak Plate Kit (optional)
Ionizer (optional)(*8)
Operational Temperature/ Humidity Range 5 to 40 °C at 20 to 85 % RH(*6)
Sensitivity Stability Against Temperature Range ±2 ppm/°C (10 to 30 °C)
Pan Size Approx. 91 mm dia.
Display OEL display (dot matrix)
Rated Electric Power Supply DC 12 V 1.0 A
Input/Output Terminal RS-232C (D-sub 9P plug) USB host (Type A) USB device (Type B) Ionizer
*1 Minimum display 0.01 mg models provide two internal weights as standard (see page 16 for details).
*2 Be compliant with USP Chapter 41. This is the tested value by the weight of the balance’s capacity of 5 % (or 5 grams’ weight).
The minimum weight value is affected by the installation environment, so it is necessary to measure it in the actual environment of use.
*3 The value is the result of a test with the internal windbreak plate.
*4 The response time for displaying 90 % of the added sample amount value in trace measurements (from 1 mg).
*5 The response time value is typical.
*6 Non-condensing.
*7 Depending on the attached AC adapter.
*8 Specifications of the ionizer are shown on the back cover.
