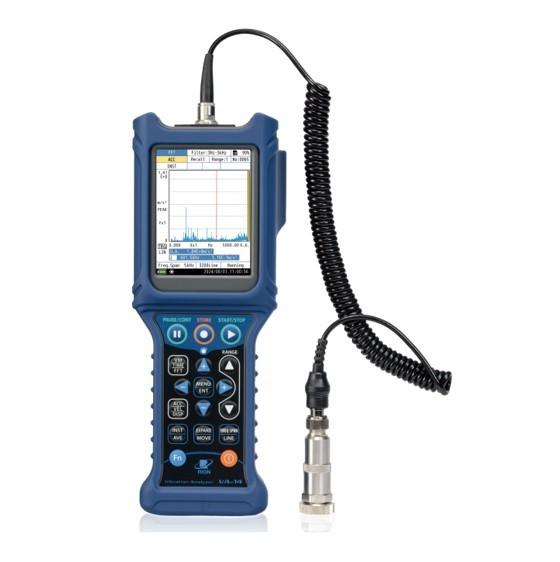

RION VA-14 เครื่องวิเคราะห์การสั่นสะเทือน Vibration Analyzer

10, 31.6, 100, 316, 1 000, 3 160, 10 000 m/s（² rms）

31.6, 100, 316, 1 000, 3 160, 10 000, 31 600 mm/s（rms）

0.89, 2.83, 8.94, 28.3, 89.4, 283, 894 mm（EQ P‒P）

1, 3.16, 10, 31.6, 100, 316, 1 000 m/s（² rms）

3.16, 10, 31.6, 100, 316, 1 000, 3 160 mm/s（rms）

0.089, 0.283, 0.89, 2.83, 8.94、28.3, 89.4 mm（EQp-p）

0.1, 0.316, 1, 3.16, 10, 31.6, 100 m/s（2 rms）

0.316, 1, 3.16, 10, 31.6, 100, 316 mm/s（rms）

0.0089, 0.0283, 0.089, 0.283, 0.89, 2.83, 8.94 mm（EQp-p）

0.02 m/s² to 141.4 m/s² (rms)

(limited by maximum continuous measurement acceleration of PV-57ｴ)

700 m/s²

0.2 mm/s to 141.4 mm/s（rms）（at 159.15 Hz input）

0.02 mm to 40.0 mm（EQ P‒P）（at 15.915 Hz input）

1 Hz to 20 kHz

3 Hz to 3 kHz

3 Hz to 500 Hz

1 kHz to 20 kHz

Pre-filter Vibration severity（ Velocity RMS values with a frequency

range of 10 Hz to 1 kHz, in accordance with ISO 2954:2012.

Corresponds to a velocity high-pass filter (HPF） at 10 Hz and a

low-pass filter（ LPF） at 1 kHz（ －3 dB point）

1 Hz（ acceleration only）, 3 Hz, 10 Hz, 1 kHz（ －10% point）

Cutoff slope －18 dB/oct

1 kHz, 5 kHz, 20 kHz（ －10% point） Cutoff slope －18 dB/oct

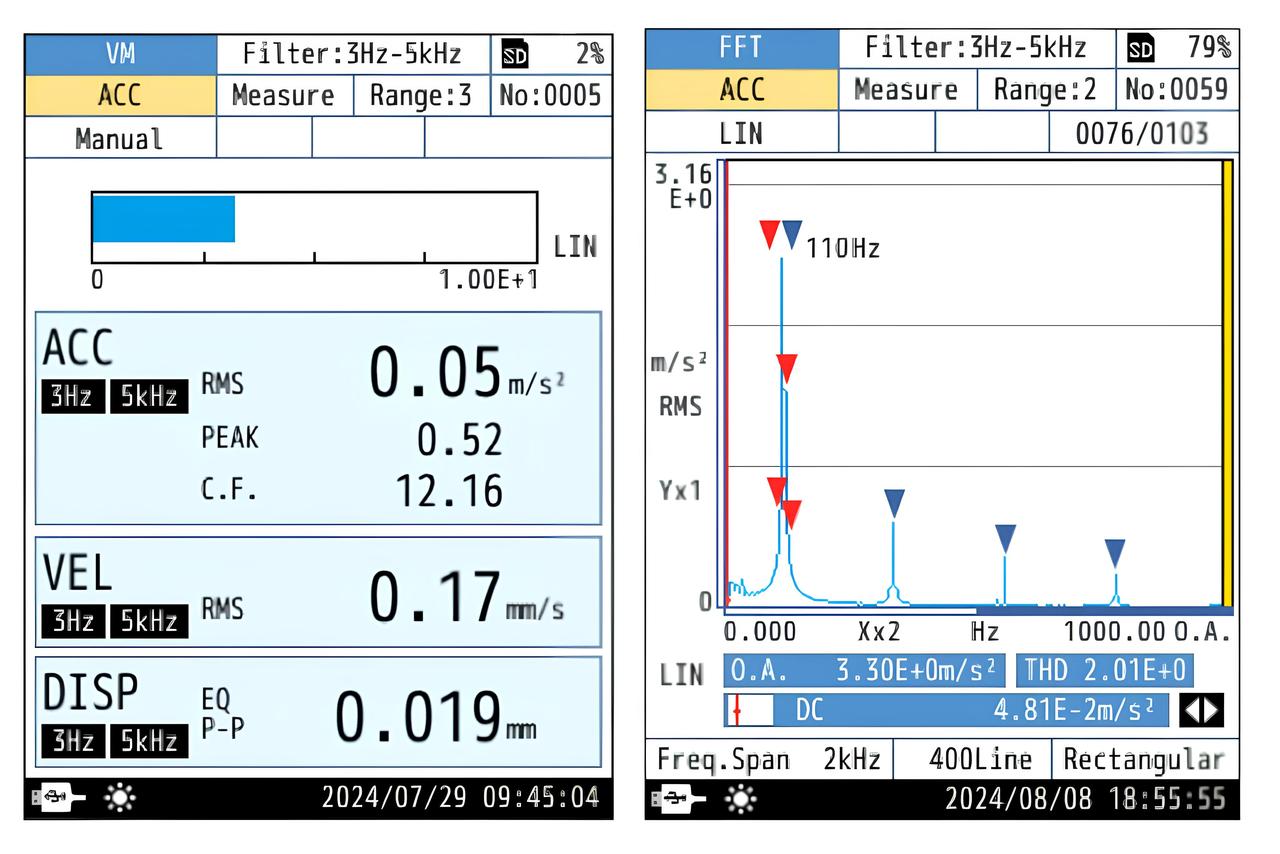

m/s2 RMS, PEAK, crest factor

mm/s RMS, EQPEAK (PEAK*1)

mm, μm RMS, EQPEAK, EQ P‒P (p-p*1)

Time waveform

ACC, VEL, DISP, Acceleration envelope curve

Spectrum

ACC, VEL, DISP, Acceleration envelope curve

Instantaneous value, linear average, maximum value, exponential average

(Linear average and maximum value should be able to be calculated and saved simultaneously.)

Maximum 2 048 times

External trigger, Level trigger

Steps of 1/8 of full scale on one-sided amplitude

＋/－

1/8 frame

Calculation is carried out constantly, regardless of the trigger condition

Calculation is carried out every time the trigger condition is met.

Calculation is carried out only once when the trigger condition is met.

3.5-inch TFT-LCD monitor

In FFT analysis mode and time waveform（ TIME） mode screens,

the cursor position is controlledvia the touch panel.

LED（ lights up in red to indicate overload）

SD cards（ max. 32 GB）

Measurement values and setting conditions are saved to a memory card.

Up to 1,000 data sets can be saved under one store name,

and up to 1,000 store names can be saved.

--

Up to 200 hours of continuous data can be saved under a single

store name. Up to 1,000 store names can be saved.

Up to 10 setting configurations can be saved in the device’s internal

memory. Up to 1,000 configurations can be saved on an SD card.

When operating in Vibration meter (VM) mode, the Auto store mode

allows recording of vibration waveforms for up to 200 hours.*1

Screen capture can be saved as BMP files.

Measurement data can be read from memory card and redisplayed on screen.

Settings are memorized when power is turned off and can be restored at next power-on

Settings can be retrieved and changed via communication commands.

Enables the transferring of data by making the computer

recognize the SD card as a removable disk.

Setting retrieval and modification, as well as measurement

SD card can be accessed to retrieve data using FTP function

－10 ℃ to +50 ℃, 10% to 90% RH（ no condensation）

－20 ℃ to +70 ℃, 90% RH or less
