RION VT-06 เครื่องวัดความหนืด (Viscotester)RION VT-06 เครื่องวัดความหนืด (Viscotester)RION VT-06 เครื่องวัดความหนืด (Viscotester)RION VT-06 เครื่องวัดความหนืด (Viscotester)RION VT-06 เครื่องวัดความหนืด (Viscotester)RION VT-06 เครื่องวัดความหนืด (Viscotester)RION VT-06 เครื่องวัดความหนืด (Viscotester)
Rion

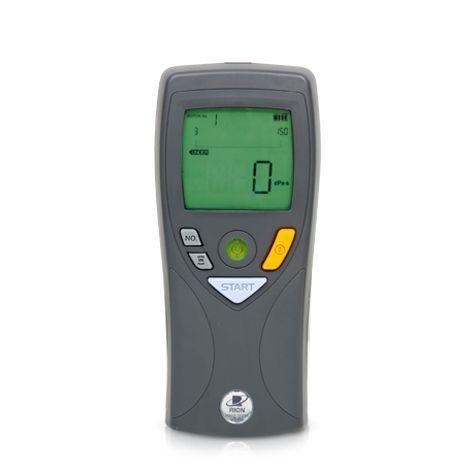

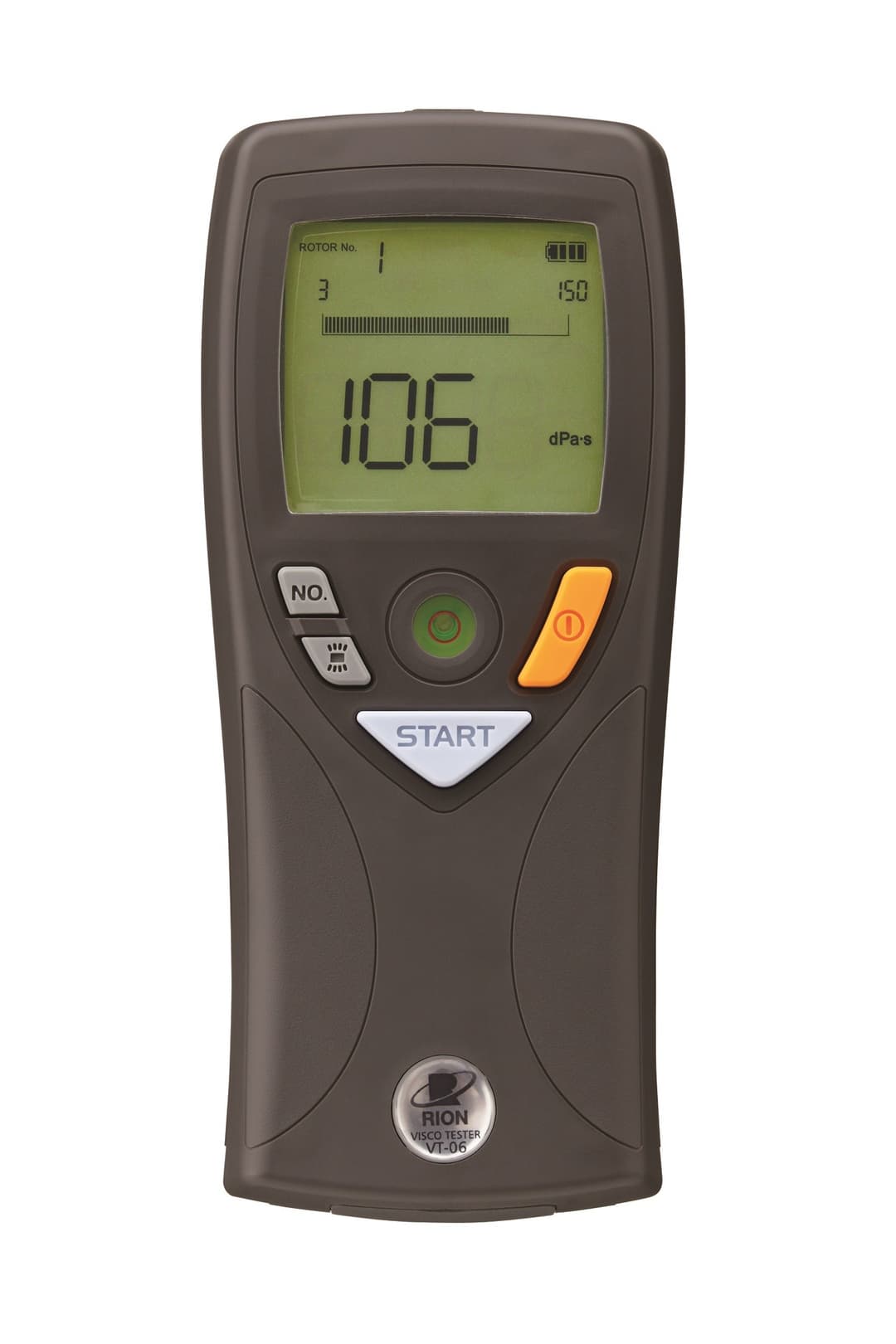

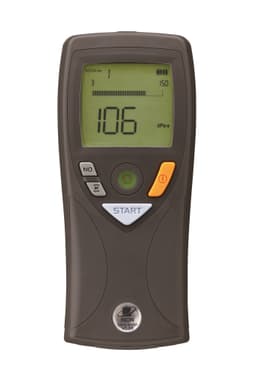

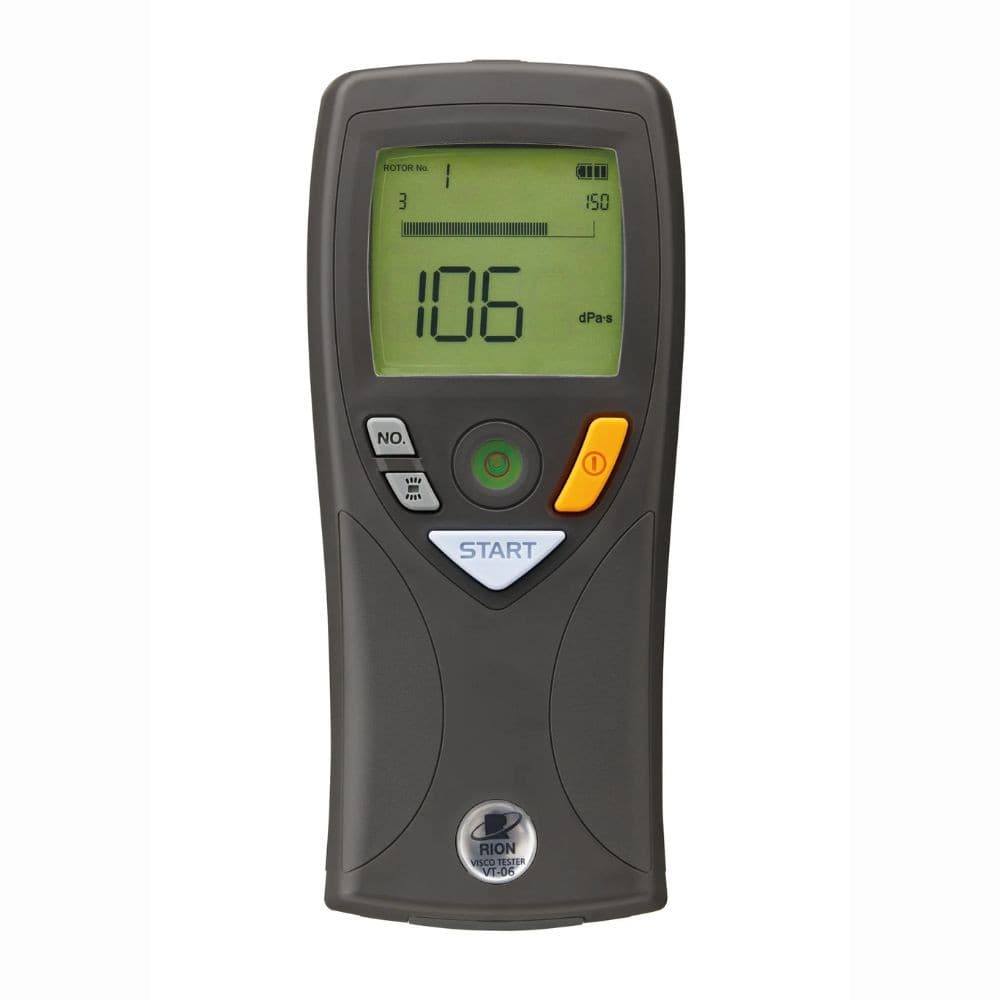

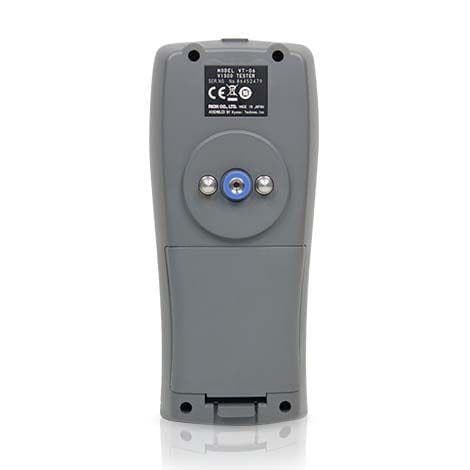

RION VT-06 เครื่องวัดความหนืด (Viscotester)

รหัสสินค้า

VT-06

฿56,300.00(ไม่รวมภาษี)

จำนวน

สินค้าในคลัง3

ภาพรวม

VT-06 เครื่องวัดความหนืด (Viscometer) แบบ Portable แสดงผลความหนืดหน่วย dPa•s ช่วงการวัด 0.3 to 4,000 dPa•s ใช้วัดความหนืดของสารต่างๆ ทีเป็นอาหารได้ สามารถใช้งานได้ทั้งแบตเตอรี่ และ AC adapter ยี่ห้อ RION, Japan

เพิ่มคำถาม

VT-06 | ฟังก์ชั่นการวัด

วัดความหนืด

VT-06 | จุดเด่น

VT-06 ถูกออกแบบมาสำหรับการใช้งานการควบคุมคุณภาพในกระบวนการผลิตของผลิตภัณฑ์อุตสาหกรรม เช่น ปิโตรเคมี, สี, กาว และ งานด้านอาหาร

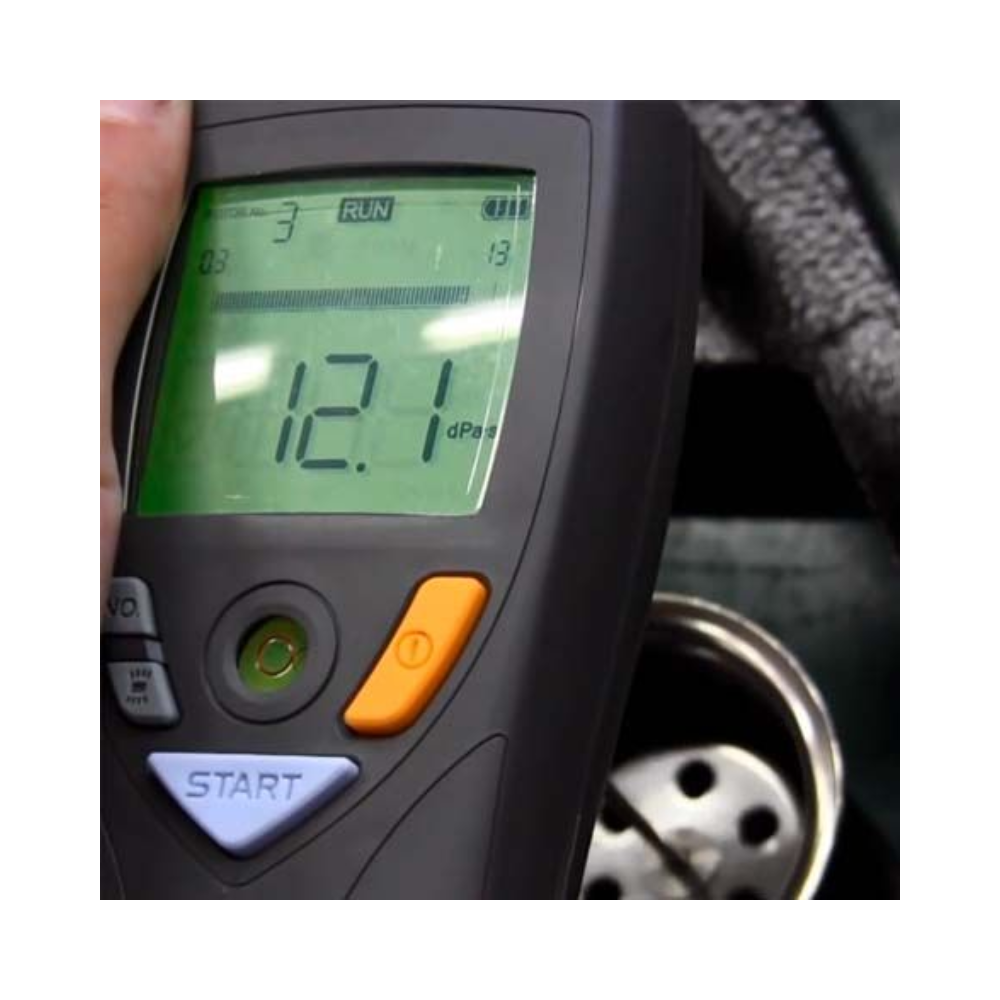

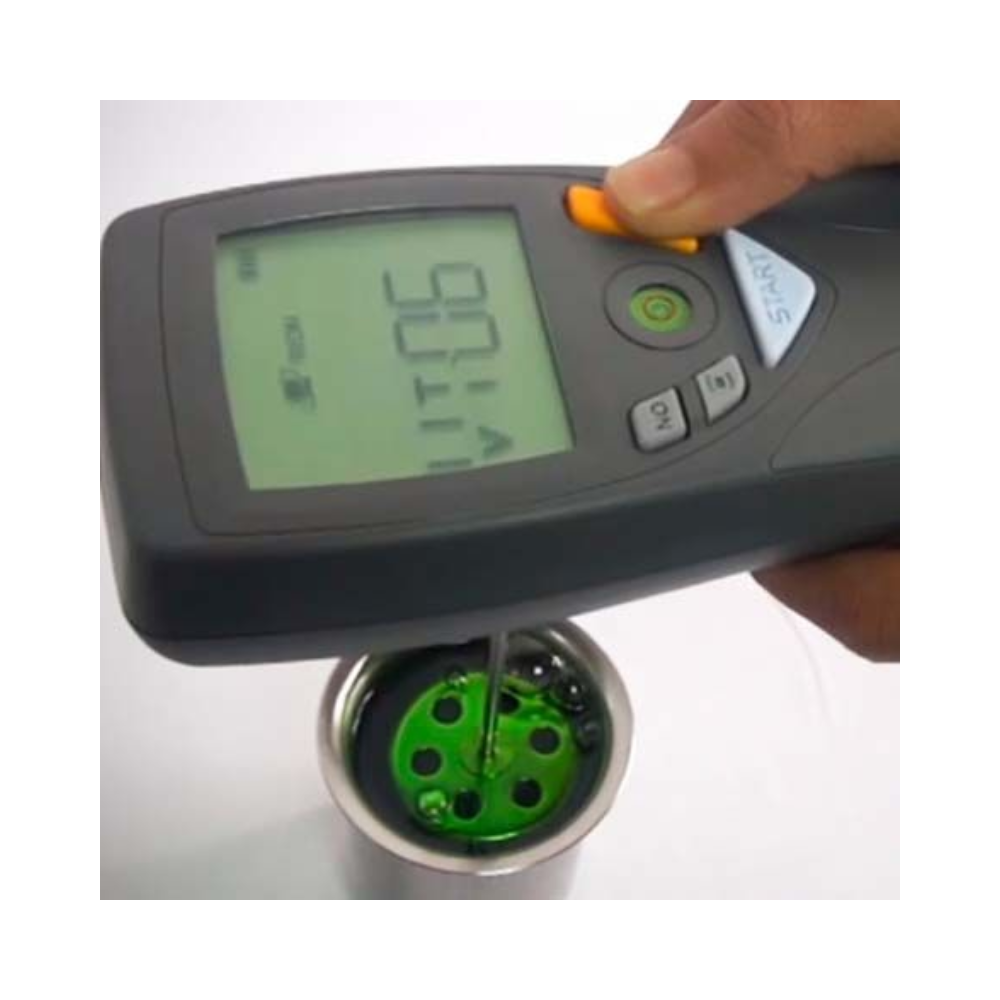

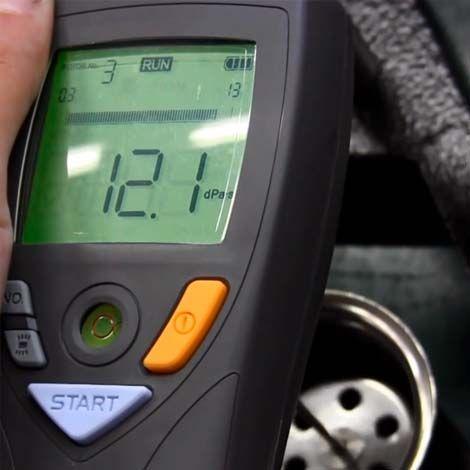

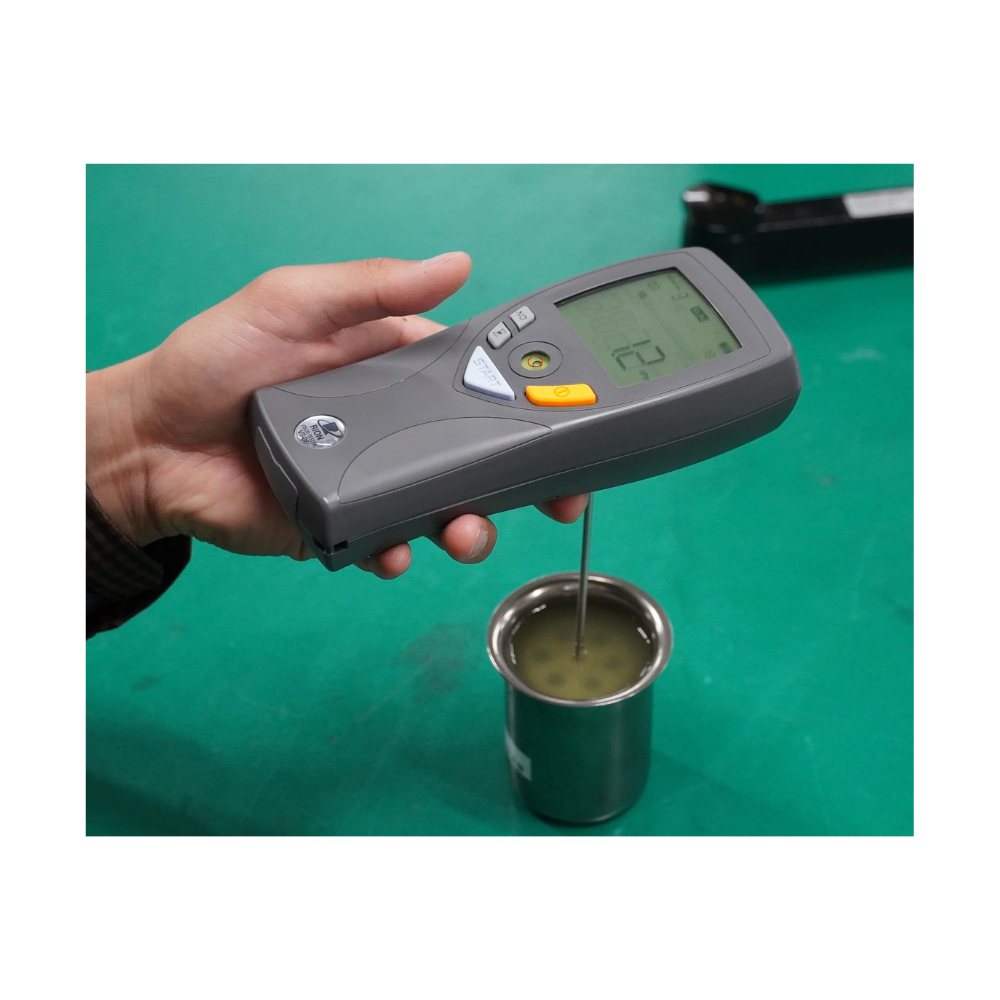

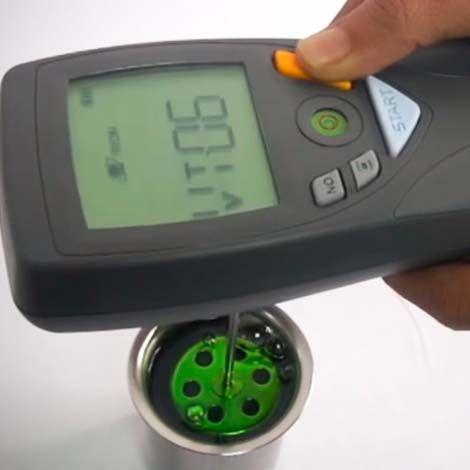

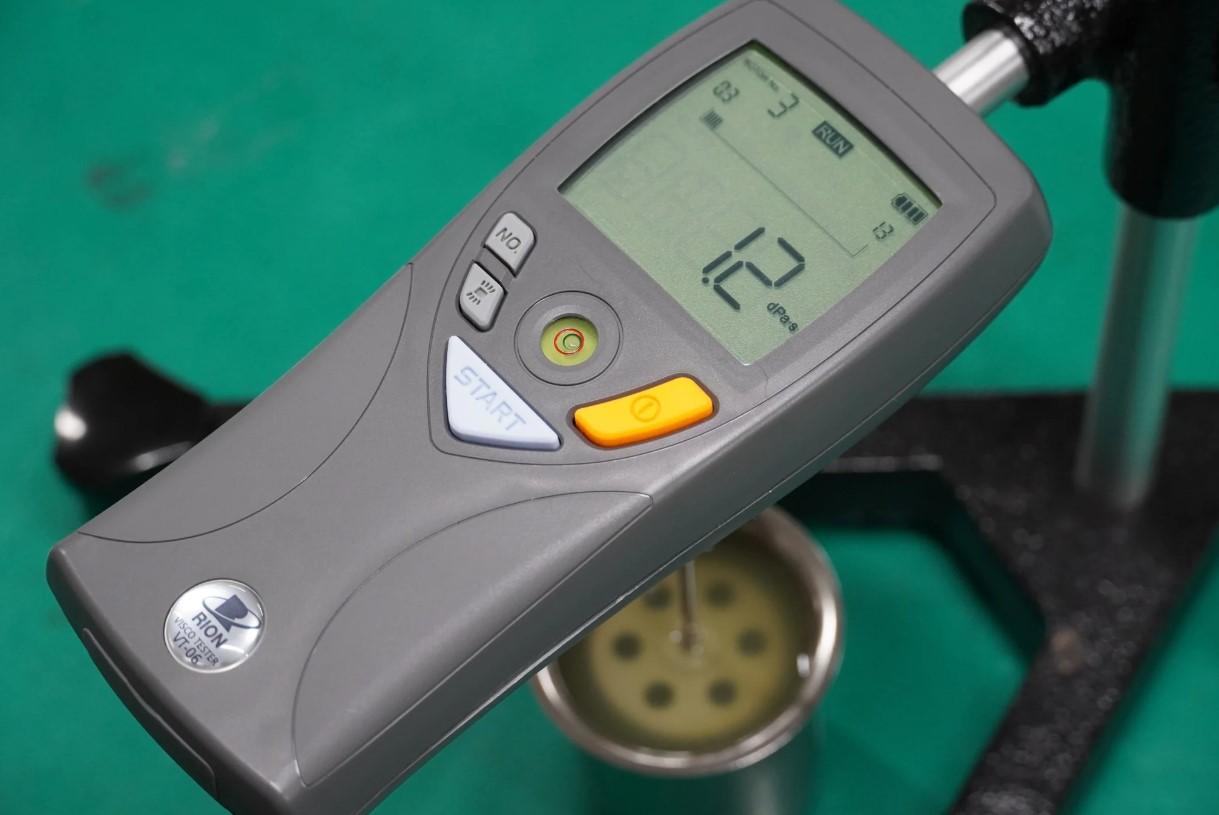

ด้วยการวัดความหนืดที่ครอบคลุมหลากหลาย การใช้งานง่ายเพียงแค่จุม Rotors ลงในของเหลว จะเกิดค่าความต้านทานต่อการเคลื่อนที่ของ Rotors เกิดค่าความหนืด Viscosity (torque) ทำให้ค่าการวัดที่ตรงและ แม่นยำ

ตัวเครื่อออกแบบมาให้มีน้ำหนักเบาและกะทัดรัดทำให้พกพาสะดวกและ ใช้งานได้ด้วยมือเดียว
สามารถใช้งานได้ทั้ง Batteries หรือ AC adapter

VT-06 | ช่วงการวัด

Range

No. 1 rotor: 3 to 150 dPa.s (with JIS 300 mL beaker)
No. 2 rotor: 100 to 4000 dPa.s (with JIS 300 mL beaker)
No. 3 rotor: 0.3 to 13 dPa.s (with No. 3 cup)


Sample fluid capacity

No. 1 and No. 2 rotor: (with JIS 300 mL beaker) approx. 300 mL
No. 3 rotor: (with No. 3 cup) approx. 150 mL

Clearance between rotor end and cup bottom: about 15 mm


Measurement accuracy

 ±10 %±1 digit of indicated value
reproducibility ±5%

VT-06 | Power Supply

IEC LR6 (size AA) alkaline batteries, nickel-hydride rechargeable batteries
AC adapter VA-05J

VT-06 | ขนาดสินค้า

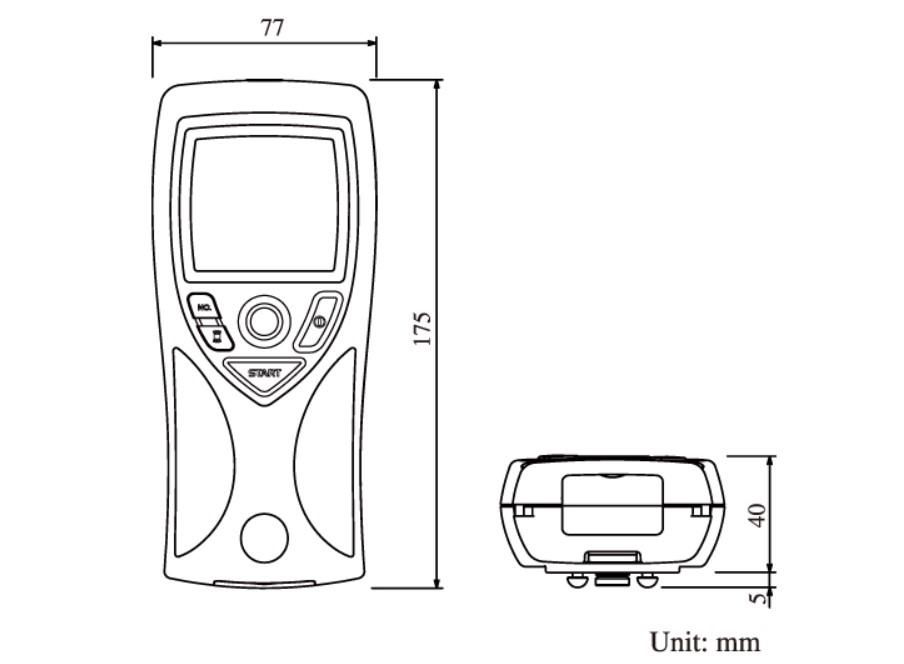

175 (H) × 77 (W) × 40 (D) mm (without protruding parts)
Approx. 260 g (without batteries)


Supplied accessories

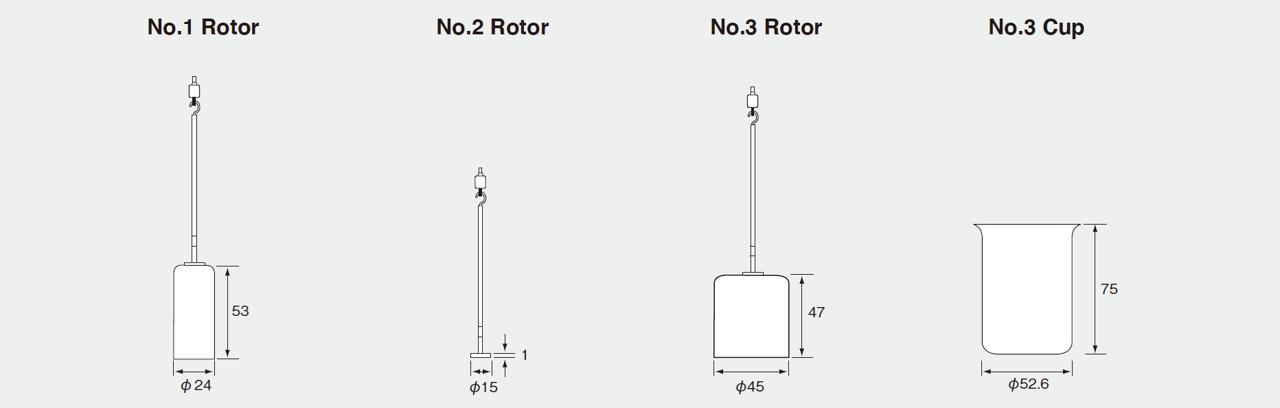

No. 1 rotor (dia. 24 × 53 × 166 mm) x 1
No. 2 rotor (dia. 15 × 1 × 113 mm) x 1
No. 3 rotor (dia. 45 × 47 × 160 mm) x 1
No. 3 Cup (dia. 52.6 × 75 mm)  x 1
Extension rod (900 mm・300× 3)  x 1
IEC LR6 (size AA) alkaline batteries x 4


RION VT-06 เครื่องวัดความหนืด (Viscotester)

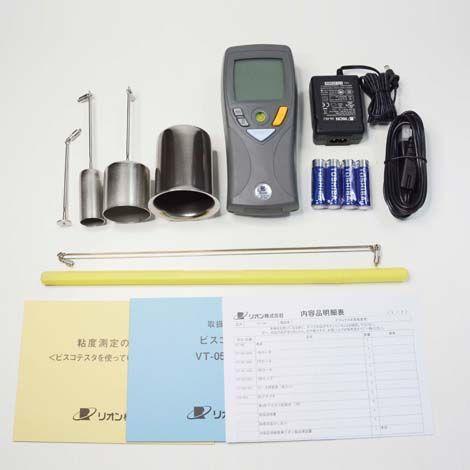

VT-06 | อุปกรณ์ที่มาในชุด

  • ตัวเครื่อง
  • No.1 rotor (Ø24 x 53 x 166mm)
  • No.2 rotor (Ø15 x 1 x 113mm)
  • No.3 rotor (Ø45 x 47 x 160mm)
  • No.3 cup (Ø52.6 x 75mm)
  • Extension rod (900mm 300x3)
  • แบตเตอรี่ Alkaline x 4
  • AC Adapter
  • คู่มือ

VT-06 | อุปกรณ์เสริม

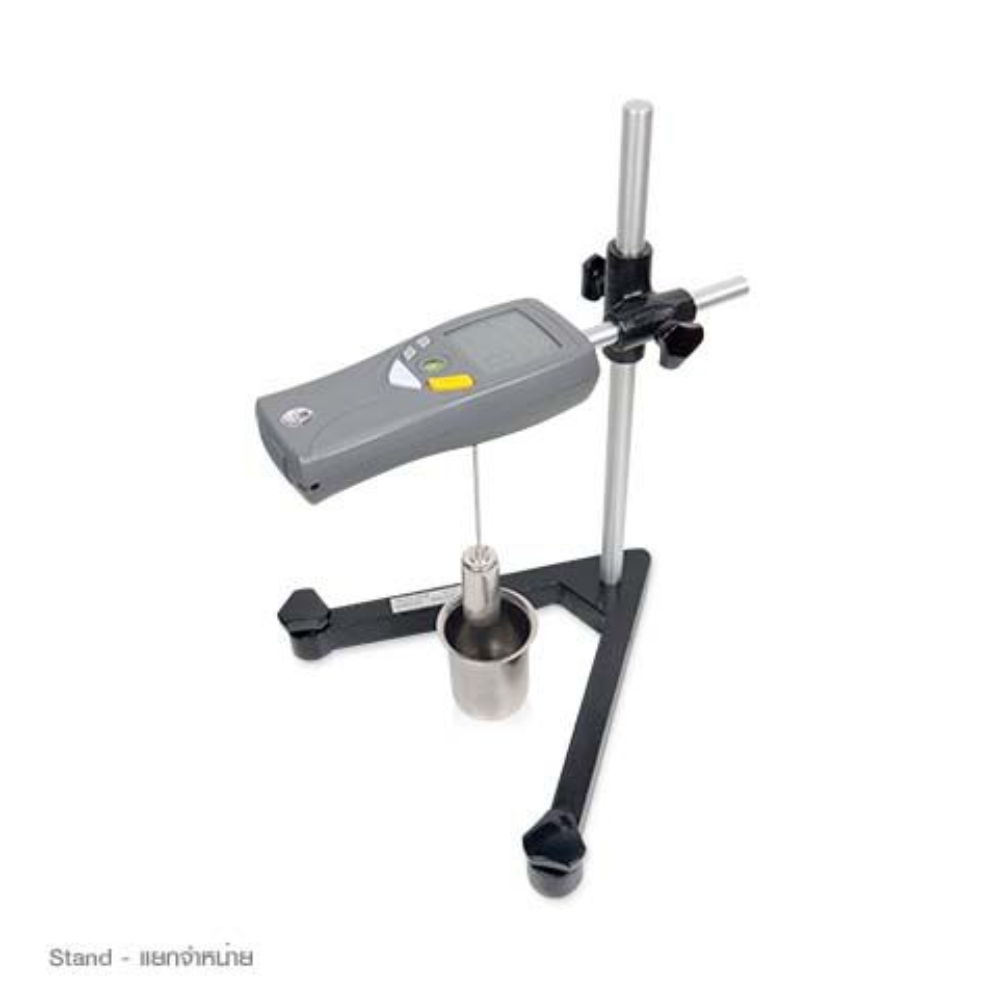

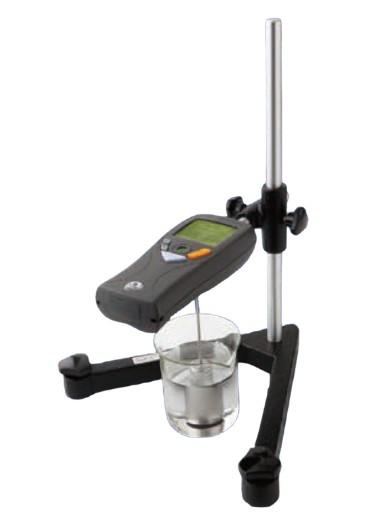

  • VA-04 Stand
  • VA-05J Adapter (อะไหล่สำรอง)

VT-06 | ข้อมูลจำเพาะ

Range

No. 1 rotor: 3 to 150 dPa.s (with JIS 300 mL beaker)
No. 2 rotor: 100 to 4000 dPa.s (with JIS 300 mL beaker)
No. 3 rotor: 0.3 to 13 dPa.s (with No. 3 cup)


Sample fluid capacity

No. 1 and No. 2 rotor: (with JIS 300 mL beaker) approx. 300 mL
No. 3 rotor: (with No. 3 cup) approx. 150 mL

Clearance between rotor end and cup bottom: about 15 mm


Measurement accuracy

 ±10 %±1 digit of indicated value
reproducibility ±5%

Rotor speed

62.5 rpm

Rotor speed

62.5 rpm

Power supply

IEC LR6 (size AA) alkaline batteries, nickel-hydride rechargeable batteries
AC adapter VA-05J

Dimensions / Weight

175 (H) × 77 (W) × 40 (D) mm (without protruding parts)
Approx. 260 g (without batteries)

Supplied accessories

No. 1 rotor (dia. 24 × 53 × 166 mm) x 1
No. 2 rotor (dia. 15 × 1 × 113 mm) x 1
No. 3 rotor (dia. 45 × 47 × 160 mm) x 1
No. 3 Cup (dia. 52.6 × 75 mm)  x 1
Extension rod (900 mm・300× 3)  x 1
IEC LR6 (size AA) alkaline batteries x 4
