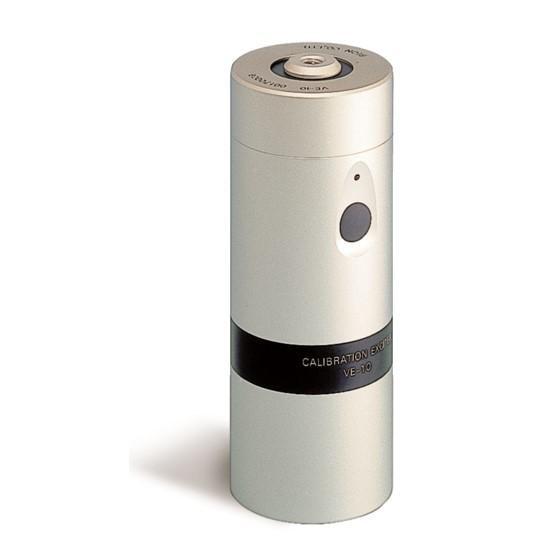

The VE-10 is a portable vibration exciter designed for calibration of vibration pickup, vibration meter, vibration measurement system, etc. ยี่ห้อ RION, Japan
VE-10 ฟังก์ชั่นการวัด
Calibration Exciter
VE-10 จุดเด่น
The VE-10 is a portable vibration exciter designed for calibration of vibration pickup, vibration meter, vibration measurement system, etc.
The VE-10 generates a sinusoidal vibration of 10 m/s2 (rms) in acceleration, 10 mm/s (rms) in velocity, 10 μm (rms) in displacement.
It is also compatible with JCSS calibration and can issue internationally acceptable JCSS calibration certificates.
VE-10 ช่วงการวัด
Frequency: 159.2 Hz ±1% for - 10 to + 55 C
Acceleration: 10 m/s2(RMS) ±3% for 10 to 40 C + 5 % for - 10 to + 55 C
Velocity: 10 m/s(RMS) ±4% for 10 to 40 C ±6% for - 10 to + 55 C
Displacement: 10 um(RMS) ±5 % for 10 to 40 C ±7% for - 10 to + 55 C
VE-10 Power Supply
IEC 6LR61 (9 V)battery X 1
VE-10 ขนาดสินค้า
70g
51mm dia x 134(H)mm.
VE-10 อุปกรณ์ที่มาในชุด
Mounting adapter X1
M6 screw X1
M6-UNF screw X1
Leather case x 1
6LR61 alkaline battery X1
VE-10 ข้อมูลจำเพาะ
Oscillator: Sinusoidal wave oscillator
Transverse Amplitude: Less than 5 % of main axis ampli-tude
Total Harmonic Distortion:
Less than 3 % for 20 to 60 g load
Less than 5 % for 10 to 70 g load
Operation Mode: Auto-stop mode (approx. one minute operation),Manual mode
Operating Conditions:
Temperature; -10 to + 55 C
Humidity; O to 90 % RH
Battery Life: More than 600 operations for auto-stop mode
