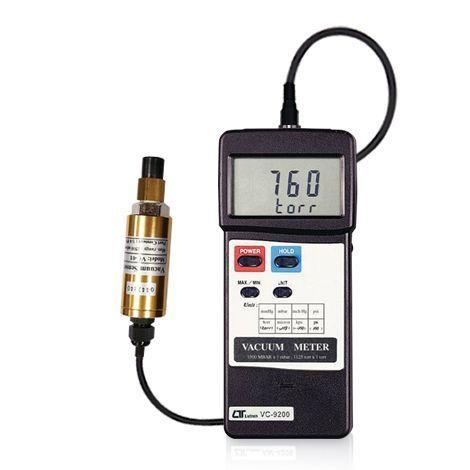

Lutron VC-9200 เครื่องวัดสูญญากาศ
LUTRON

Lutron VC-9200 เครื่องวัดสูญญากาศ

รหัสสินค้า

VC-9200

฿14,600.00(ไม่รวมภาษี)

จำนวน

สินค้าใกล้หมดแล้ว

ภาพรวม

Lutron VC-9200 เครื่องวัดสูญญากาศ วัด Absolute vacuum และ absolute pressure ช่วงการวัดตั้งแต่ 1 to 1500 mbar หน่วยการวัด torr, mmHg, micron, mbar, KPa, Pa, inch Hg, psi ยี่ห้อ Lutron, Taiwan

เพิ่มคำถาม

VC-9200 | ฟังก์ชั่นการวัด

เครื่องวัดสูญญากาศ (Vacuum Meters)

VC-9200 | จุดเด่น

รุ่น Heavy Duty ออกแบบมาเพื่อใช้งานกับการวัดความเป็นสูญญากาศในท่อลม ท่อน้ำมัน ท่อของเหลว

วัด Absolute vacuum และ absolute pressure

ช่วงการวัดตั้งแต่ 1 to 1500 mbar

หน่วยการวัด torr, mmHg, micron, mbar, KPa, Pa, inch Hg, psi

ฟังก์ชั่น REC (Min/Max), Hold ค้างหน้าจอ, ปิดเครื่องอัตโนมัติ

Data output: RS232 interface

Pressure port connector: ข้อต่อขนาด 1/4"

VC-9200 | ช่วงการวัด

mbar

Max. range 1500 mbar

Resolution  1 mbar

Accuracy ( 23±5 ℃)  ± 1 % F. S. ( F.S. : full scale )


KPa

Max. range 150.0 KPa

Resolution  0.1 KPa

Accuracy ( 23±5 ℃)  ± 1 % F. S. ( F.S. : full scale )


Pa

Max. range 150,000 Pa

Resolution  100 Pa

Accuracy ( 23±5 ℃)  ± 1 % F. S. ( F.S. : full scale )


torr

Max. range 1125 torr

Resolution  1 torr

Accuracy ( 23±5 ℃)  ± 1 % F. S. ( F.S. : full scale )


mm Hg

Max. range 1125 mm Hg

Resolution  1 mm Hg

Accuracy ( 23±5 ℃)  ± 1 % F. S. ( F.S. : full scale )


micron

Max. range 1125,000 micron

Resolution  1000 micron

Accuracy ( 23±5 ℃)  ± 1 % F. S. ( F.S. : full scale )


inch Hg

Max. range 44.30 inch Hg

Resolution  0.02 inch Hg

Accuracy ( 23±5 ℃)  ± 1 % F. S. ( F.S. : full scale )


psi

Max. range 21.75 psi

Resolution  0.01 psi

Accuracy ( 23±5 ℃)  ± 1 % F. S. ( F.S. : full scale )

Note : Included linearity, hysteresis and repeatability

VC-9200 | Power Supply

006P DC 9V battery(heavy duty).

VC-9200 | ขนาดสินค้า

Meter : 180 x 72 x 32 mm ( 7.1 x 2.8 x 1.3 inch ) / 220 g/0.48 LB.

Sensor probe : 90 mm x 30 mm Dia. / 175 g/0.39 LB.

VC-9200 | อุปกรณ์ที่มาในชุด

ตัวเครื่อง

เซนเซอร์

กระเป๋า

VC-9200 | อุปกรณ์เสริม

USB Cable (USB-01)

RS232 Cable (UPCB-02)

Data Acquisition Software (SW-E816)

VC-9200 | ข้อมูลจำเพาะ

Display  61 mm x 34 mm supper large LCD display. 15 mm ( 0.6" ) digit size.

Display units  8 kind display units : torr, mm Hg,micron, mbar, KPa, Pa, inch Hg, psi.

Circuit  Microprocessor LSI circuit.

Function  Data hold, memory ( max., min.)

Sensor probe

* Separate probe, easy operation.

* Heavy duty sensor uesed for vacuum measurement of air, oil gas liquid.

Data hold   By push button.

Data record  Record maximum & minimum readings.

Data output  RS 232 PC serial interface.

Sampling time  Approx. 0.8 second.

Power off  Auto shut off, saves battery life, or manual off by push button.

Operating temperature  0 to 50 ℃ ( 32 to 122 ℉ ).

Operating humidity  Less than 80% R.H.

Power current  Approx. DC 6.0 mA.

Pressure Port Connector  1/4" PS
