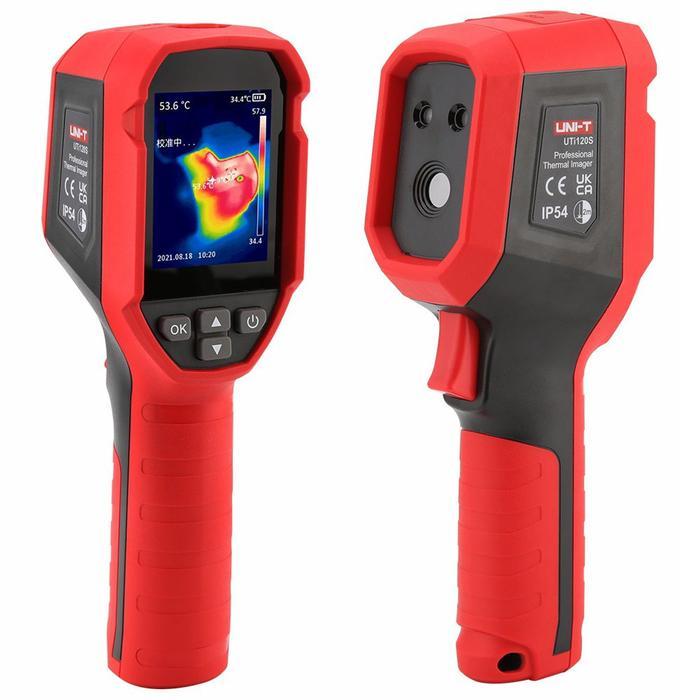

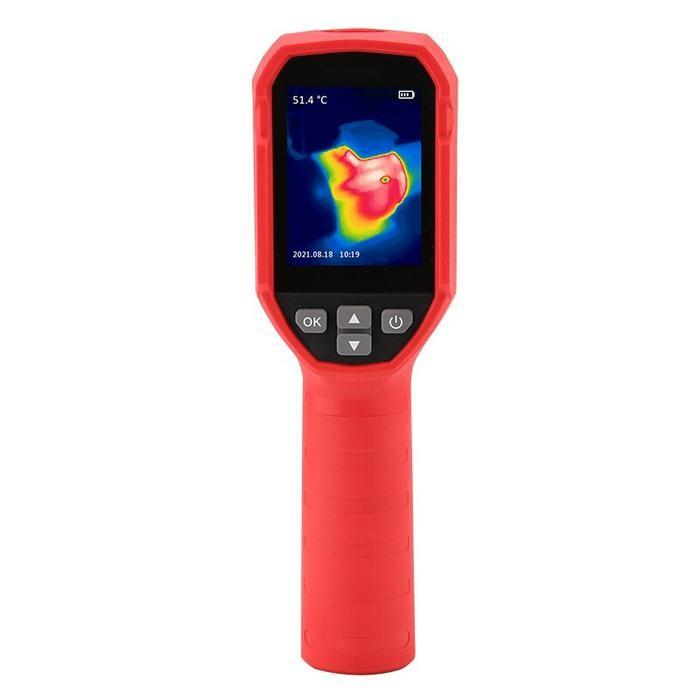

UNI-T UTi120S Thermal Imaging Camera

UTi120S ฟังก์ชั่นการวัด

กล้องถ่ายภาพความร้อน Thermal Camera

UTi120S จุดเด่น

• Temperature measurement mode:central point, high and low temperaturetracking
• Photo storage: 16GB TF card
• High and low temperature alarm: image, buzzer, LED flashing
• Laser indicator/LED lighting Three anti-fall design: IP54 / 2m anti-fall
• PC Analysis Software
• Six color palettes available
• the emissivity is adjustable

UTi120S ช่วงการวัด

Temperature range : -20~400℃
Resolution : 0.1°C
Accuracy : ±2°C or ±2%, whichever is greater (-10°C -400°C room temperature 25°C)

UTi120S Power Supply

Li-ion 3.7V/2600mAh 18650

UTi120S ขนาดสินค้า

Product size (LxWxH) : 197 x 72 x 60 mm
Product weight : 310g

UTi120S อุปกรณ์ที่มาในชุด

User manual, Type-C USB cable, 32GB Micro SD card

UTi120S ข้อมูลจำเพาะ

1. Sensor: Uncooled infrared focal plane thermal imaging sensor
   Pixel size: 17 pm
   Infrared spectrum bandwidth: 8-14pm
   Thermal imaging sensitivity: <60mK
   Field of view (FOV): 50°(H) x 38°(V)
   Spatial resolution (IFOV): 7.6 mrad
   Rate: 25Hz
   Minimum imaging distance: 0.1m
   Focus: Focus-free
2. Emissivity: 0.95 (default) 0.01 – 0.99
   Temperature display: Center point temperature, high/low-temperature tracking
   Palettes: lava, rainbow HC, black hot , white hot, iron, Rainbow
   Display type: 2.4″ TFT LCD
   Display resolution: 320 x 240
3. Buttons: 4 buttons (power, up, down, OK) 1 trigger
   Laser: 4(Class 2)
   LED Light: 4
   Temperature alarms: LCD, LED, buzzer
   Image storage: Micro SD Card
   Image format: BMP
   PC analysis software: 4
   USB communication: Type-C USB
4. Operating time: Continuous operating time >9h
   Charging time: s2.5h
   Charging voltage/current: 5V 12A
   Power on speed: Os (wake up) / 5s (power on)
   Auto power off: 5min/10min/30min(default)/off
   Operating temperature: 0 – 50°C ( 32 -140°F )
   Storage temperature: -20 – 60°C ( -4 – 140°F )
   Operating humidity: < 85%RH ( Operating humidity )
   IP rating: IP54
   Drop-proof : 2m
