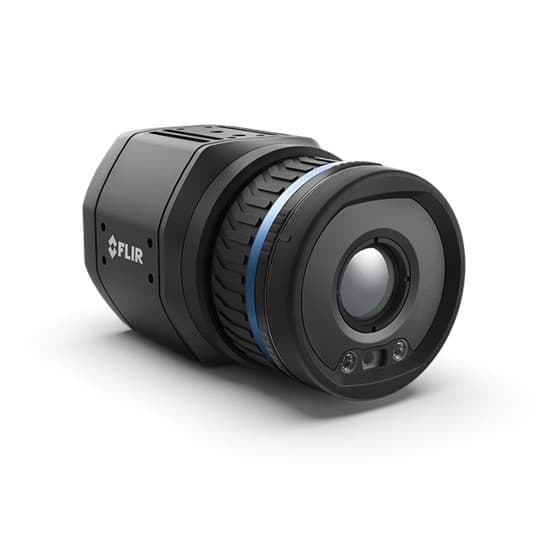

FLIR-A500 กล้องถ่ายภาพความร้อนแบบติดตั้ง Fixed-Mount Thermal Camera (Standard Configuration)

464 × 348

17 µm

17 µm

7.5–14.0 µm

Uncooled microbolometer

16-bit

Lens dependent: <30 mK to <40 mK

30 Hz

-20°C to 120°C (-4°F to 248°F); 0°C to 650°C (32°F to 1202°F); 300°C to 1500°C (572°F to 2732°F)

One-shot contrast, motorized, manual

2.x Macro, 6°, 14°, 42°, 80°

Standard: Gigabit Ethernet (RTSP, GigE Vision) to workstation running included Research Studio Software
Professional: Gigabit Ethernet (RTSP, GigE Vision) or Wi-Fi stream to workstation running included Research Studio Software

24° × 18°

MSX®, Picture-in-picture, blending, and fusion

Standard: 24°
Professional: 24°, 2.0x Macro

Automatic

Included

2.0x Macro: 18 mm (0.71 in) 24°: 0.15 m (0.49 ft) 24° with Macro Mode: 17 mm (0.67 in) 42°: 0.15 m (0.49 ft) 14°: 1.0 m (3.28 ft) 6°: 5.0 m (16.4 ft) DFOV (24°/14°): 0.18 m (0.59 ft) and 1.0 m (3.28 ft)

DFOV (24°/14°), 6°, 14°, 42°, 80°

Standard: Optional accessory
Professional: 1280 × 960

0.82 kg (1.8 lb)

±2°C (±3.6°F) or ±2% of reading for ambient temperature 15°C to 35°C (59°F to 95°F), object temperature above 0°C (32°F)

-20°C to 120°C (-4°F to 248°F); 0°C to 650°C (32°F to 1202°F); 300°C to 1500°C (572°F to 2732°F)

On any selected measurement function; digital in; internal camera temperature

Yes: common output includes e-mail, EtherNet/IP, Modbus TCP, RESTful API, and ONVIF (advanced only)

Yes

Yes

Yes

Visual, IR, MSX®

FSX®, histogram equalization (IR only)

With, without

YUV411

H.264/MPEG4/MJPEG

Visual

No

YUV411

H.264/MPEG4/MJPEG

Wired; Wi-Fi*

1000 Mbps, IEEE 802.3

Power over Ethernet, PoE IEEE 802.3af class 3

Include EtherNet/IP, Modbus TCP, and MQTT

Standard: Gigabit Ethernet (RTSP, GigE Vision)

M12 Male 12-pin A-coded (shared with ext. power)

2× opto-isolated, Vin (low) = 0–1.5 V, Vin (high) = 3–25V

3× opto-isolated, 0–48 VDC, max. 350 mA (derated to 200 mA at 60°C). Solid-state opto relay, 1× dedicated as fault output (NC)

GigE Vision ver. 1.2, Client API GenICam compliant, TCP/IP socket-based (FLIR proprietary)

M12 8-pin X-coded, female

Yes

Power over Ethernet, PoE IEEE 802.3af class 3

Standard: Optional feature

123 mm × 77 mm × 77 mm (4.84 in × 3.03 in × 3.03 in)

18-56 VDC, 8 W max

24/48 V DC 8 W max

Power over Ethernet or External

IEC 60529, IP54, IP66 with accessory

UNC ¼″-20 on 2 sides 4× M4 on 4 sides

–-20°C to 50°C (-4°F to 122°F): • -20°C to 40°C (-4°f to 104°F) (in free air) • 40°C to 50°C (104°F to 122°F) (mounted on cooling plate accessory) • Maximum camera case temperature: 65°C (149°F)

IEC 60068-2-27, 25 g

IEC 68-2-1 and IEC 68-2-2, -40°C to 70°C (-40°F to 158°F) for 16 hours

IEC 60068-2-6, 0.15 mm at 10–58 Hz and 2 g at 58–500 Hz, sinusoidal IEC 61373 Cat 1 (Railway)
