Fluke-561 | ฟังก์ชั่นการวัด
เครื่องวัดอุณหภูมิอินฟราเรด
Fluke-561 | จุดเด่น
เหมาะสำหรับการวัดอุณหภูมิเฉพาะจุด หรือ จากระยะไกล
Distance:Spot 12:1
Emissivity ปรับค่าได้ 3 ค่า : low (0.3), medium (0.7). high (0.95)
สามารถใช้งานร่วมกับ Type K thermocouple
Fluke-561 | ช่วงการวัด
-40 ถึง 550 °C (-40 ถึง 1022 ° F)
Display resolution 0.1°C (0.1°F) of reading
Display accuracy [assumes ambient operating temperature of 23°C (73°F) to 25°C (77°F)]
±1.0% of reading ±1% of reading or ±1°C (±2°F), whichever is greater below 0°C / 32°F, ±1°C (±2°F) ±0.1°/1°
Fluke-561 | Power Supply
2 AA batteries (alkaline or NiCD)
Fluke-561 | ขนาดสินค้า
17.69 cm (6.965 in) H x 16.36 cm (6.441 in) L x 5.18 cm (2.039 in) W
0.322 kg (0.7099 lb)

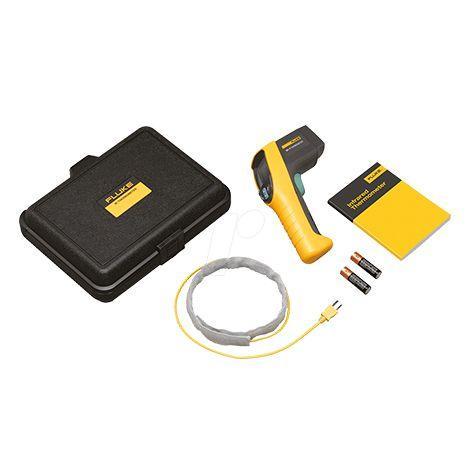

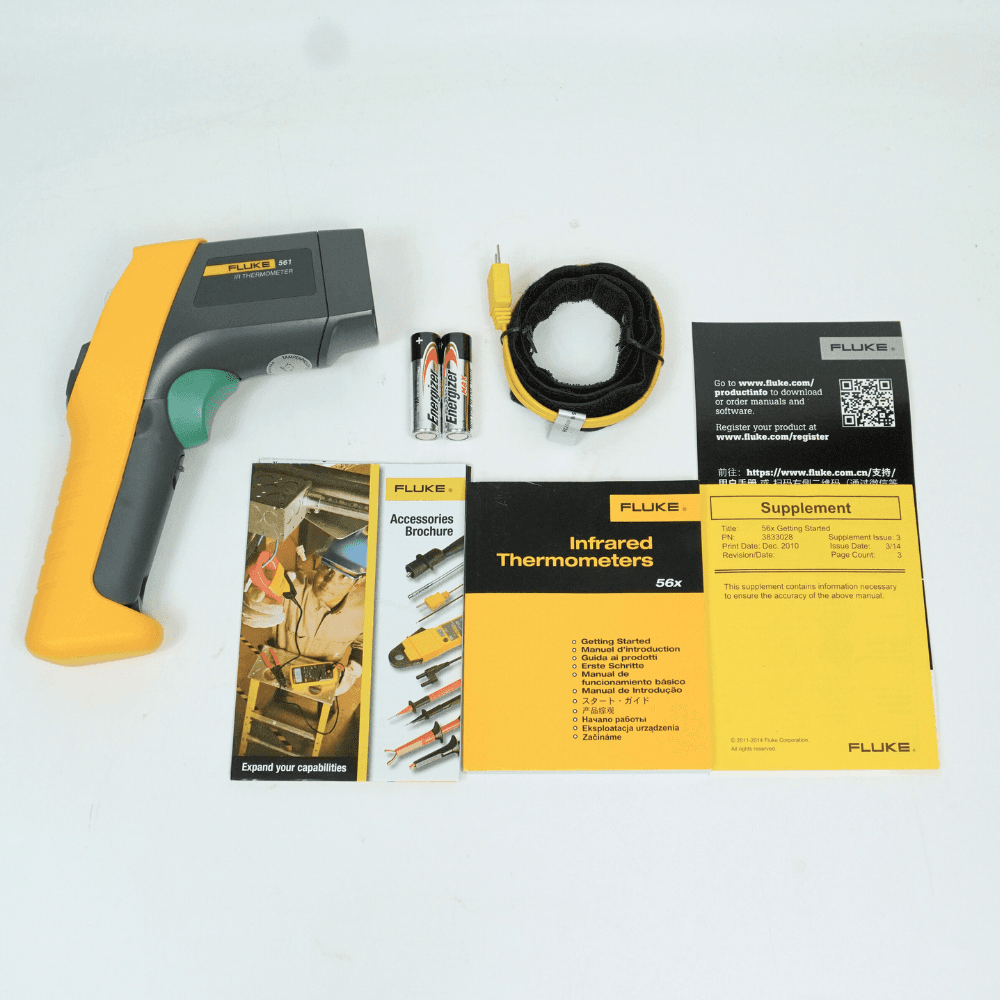

Fluke-561 | อุปกรณ์ที่มาในชุด
ตัวเครื่อง
type K thermocouple
hard carrying case
Fluke-561 | อุปกรณ์เสริม
80PJ-1 Bead Probe
80PK-1 Bead Probe (Type K)
80PK-25 Piercing Probe
80PK-27 SureGrip™ Industrial Surface Temperature Probe
80PK-3A Surface Probe
80PK-8 Pipe Clamp Temperature Probe
H6 Infrared Thermometer Holster
Fluke-561 | ข้อมูลจำเพาะ
Temperature -40 to 550°C (-40 to 1022°F)
Display resolution 0.1°C (0.1°F) of reading
D:S (distance to spot size) 12:1
Easy emissivity selector
Adjustable with three settings:
Low (0.3), medium (0.7). high (0.95)
Display accuracy [assumes ambient operating temperature of 23°C (73°F) to 25°C (77°F)]
±1.0% of reading ±1% of reading or ±1°C (±2°F), whichever is greater below 0°C / 32°F, ±1°C (±2°F) ±0.1°/1°
Response time 500 mSec (95% of reading)
Repeatability ±0.5% of reading or ±1°C (±2°F), whichever is greater
Spectral response 8 µm to 14 µm
Laser sighting Single point laser
Laser shutoff Laser turns off above ambient temperature of 40°C (104°F)
Laser power Class 2(II) operation; Output < 1 mW, wavelength 630-670 nm
Relative humidity 10% to 90% RH non-condensing, at < 30°C (86°F)
Power, battery life 2 AA batteries (alkaline or NiCD)
Battery life 12 hours
Display hold 7 seconds
Backlit display Yes, LCD with dual temperatures (current and MAX/MIN/DIF/KTC), low battery, F/C indicator, and Scan/Hold options
Operating temperature 0°C to 50°C (32°F to 120°F)
Storage temperature -20°C to 65°C (-25°F to 150°F)
MAX, MIN, DIF temperatures Yes
Thermocouple Type K mini adapter input Yes, compatible with industry standard K type probes with mini-connector. Displays to the thermometer temperature range.
Thermocouple Type K fabric hook-and-loop fastener pipe probe
Yes, with a temperature range of 0°C to 100°C (32°F to 212°F) and accuracy of ±2.2°C (±4°F)
HVAC measurement guide Yes
