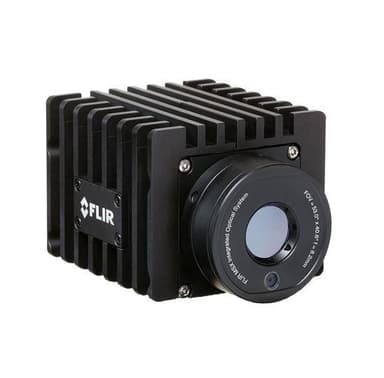

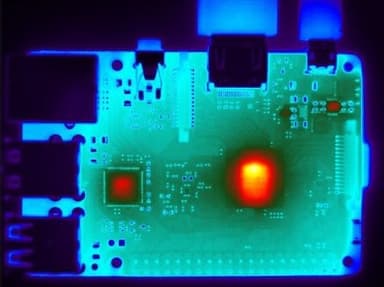

T300390 Image Streaming configuration (FLIR A50/A70)

Image Streaming configuration

• Designed for use with FLIR’s A50 or A70 Thermal Camera Cores

• Provides camera control capabilities

• Image streaming over Ethernet

• Analytics

• Compatible with software applications designed for raw thermal data collection

• GigE Vision and GenICam compatible: enables camera control and visual/ thermal streaming into third-party machine vision applications

• Full support for compressed radiometric streaming using FLIR Atlas SDK (Advanced Configuration ONLY)

• Simple integration using non-proprietary industry-standard connectivity

• Optimise process control and quality assurance to improve yield, product quality, efficiency, and cost-effectiveness

อุปกรณ์ที่มาในชุด

Unit x1

ข้อมูลจำเพาะ

Image & Optical Data Advanced Configuration

IR resolution 464 × 348 (A50), 640 × 480 (A70) Visual Resolution 1280 × 960 pixels (optional) Thermal Resolution

A70: 29°: <45 mK, 51°: <45 mK, 95°: <60 mK A50: 29°: <35 mK, 51°: <35 mK, 95°: <45 mK Focus Fixed, adjustable with included focus tool Spatial Resolution (IFOV)

A50: 29°: 1.2 mrad/pixel, 51°: 2.1 mrad/pixel, 95°: 4.0 mrad/pixel A70: 29°: 0.84 mrad/pixel, 51°: 1.5 mrad/pixel, 95°: 2.9 mrad/pixel FOV Options 29°, 51°, 95° Detector Pitch A50: 17 µm, A70: 12 µm Spectral Range 7.5–14.0 µm Frame Rate 30 Hz

Ethernet Communication GigE Vision, GenICam (SFNC 2.4) Connector Types M12 8-pin X-coded, female; RP-SMA, female Ethernet Interface Wired, Wi-Fi (optional) Ethernet Power Power over Ethernet, PoE IEEE 802.3af class 3 Ethernet Protocols

IEEE 1588, SNMP, TCP, UDP, SNTP, RTSP, RTP, HTTP, ICMP, IGMP, sftp (server), FTP (client), SMTP, DHCP, MDNS (Bonjour), uPnP Ethernet Standard IEEE 802.3 Ethernet Type 1000 Mbps

Digital Input/Output

Connector Type M12 Male 12-pin A-coded (shared with external power) Digital Input 2× opto-isolated, Vin (low) = 0 to 1.5 V, Vin (high) = 3 to 25 V Digital Output

3× opto-isolated, 0 to 48 V DC, max. 350 mA (derated to 200 mA at 60°C). Solid-state opto relay, 1× dedicated as fault output (NC)

Power

Power Consumption

7.5 W at 24 V DC typical, 7.8 W at 48 V DC typical, 8.1 W at 48 V PoE typical External Power Operation 24/48 V DC 8 W max External Voltage Allowed range 18 V to 56 V DC Power Connection M12 12-pin A-coded, male (shared with Digital I/O)
