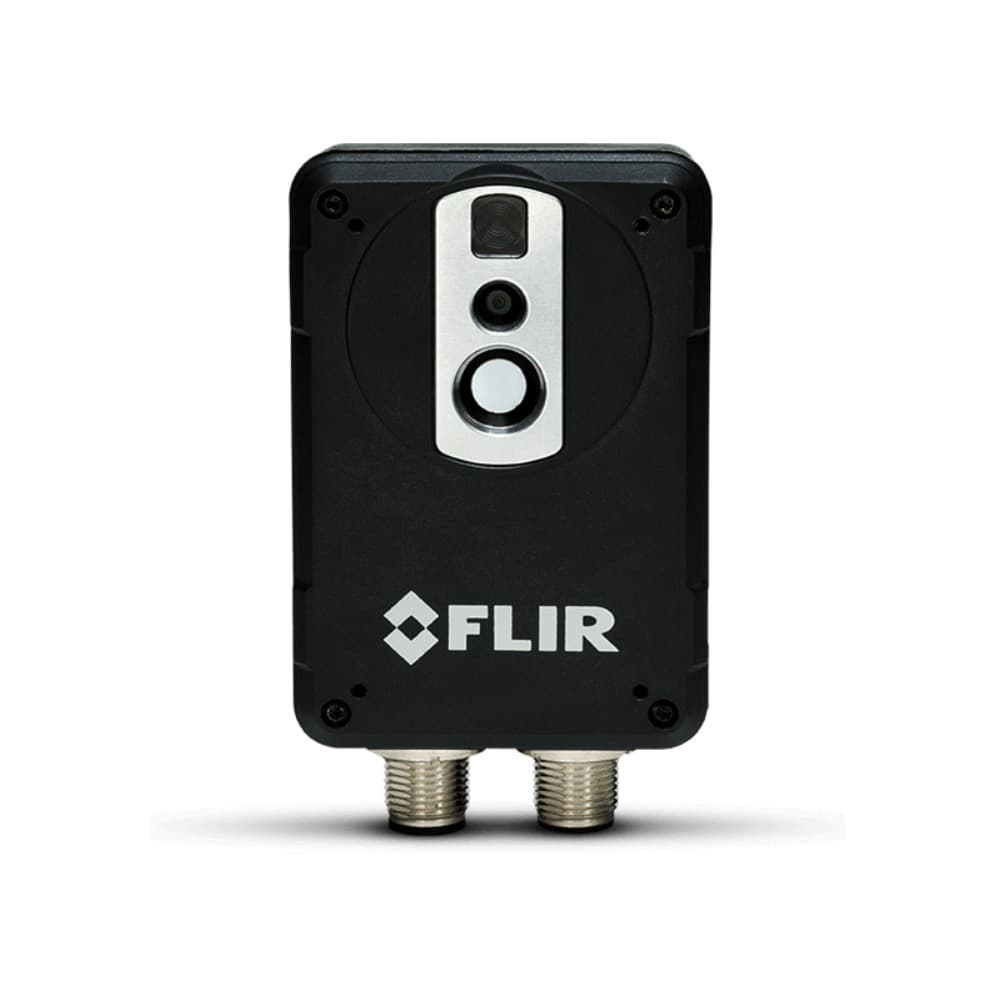

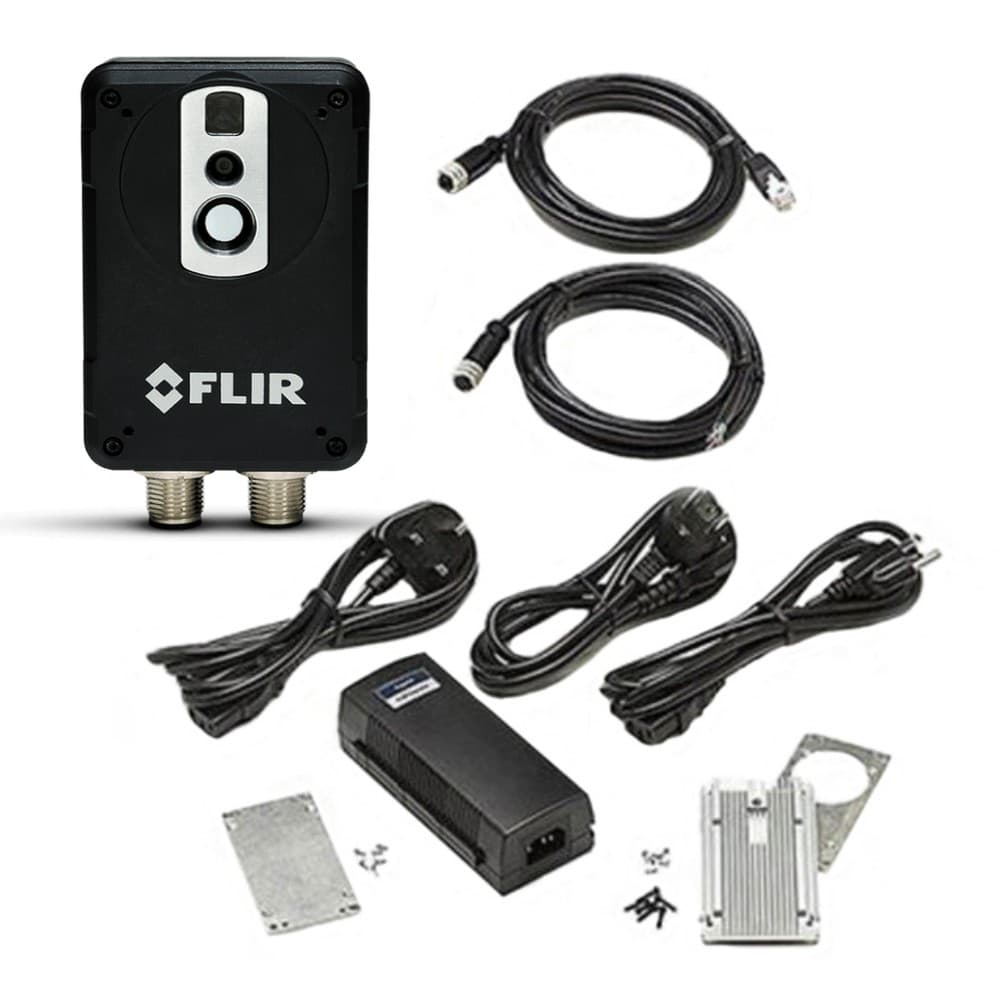

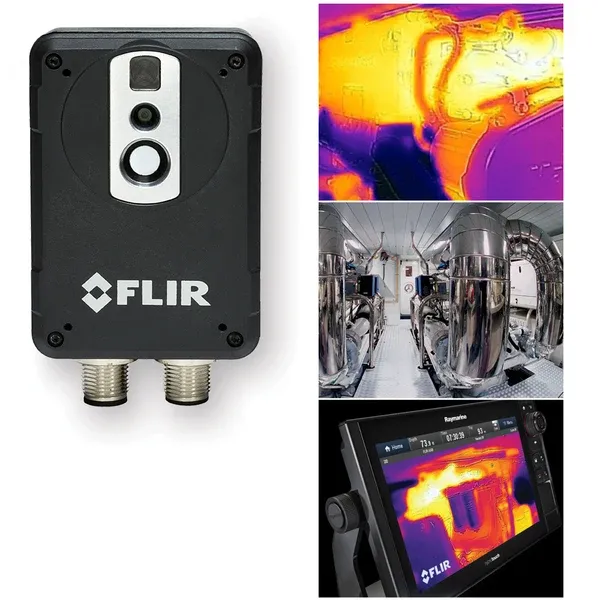

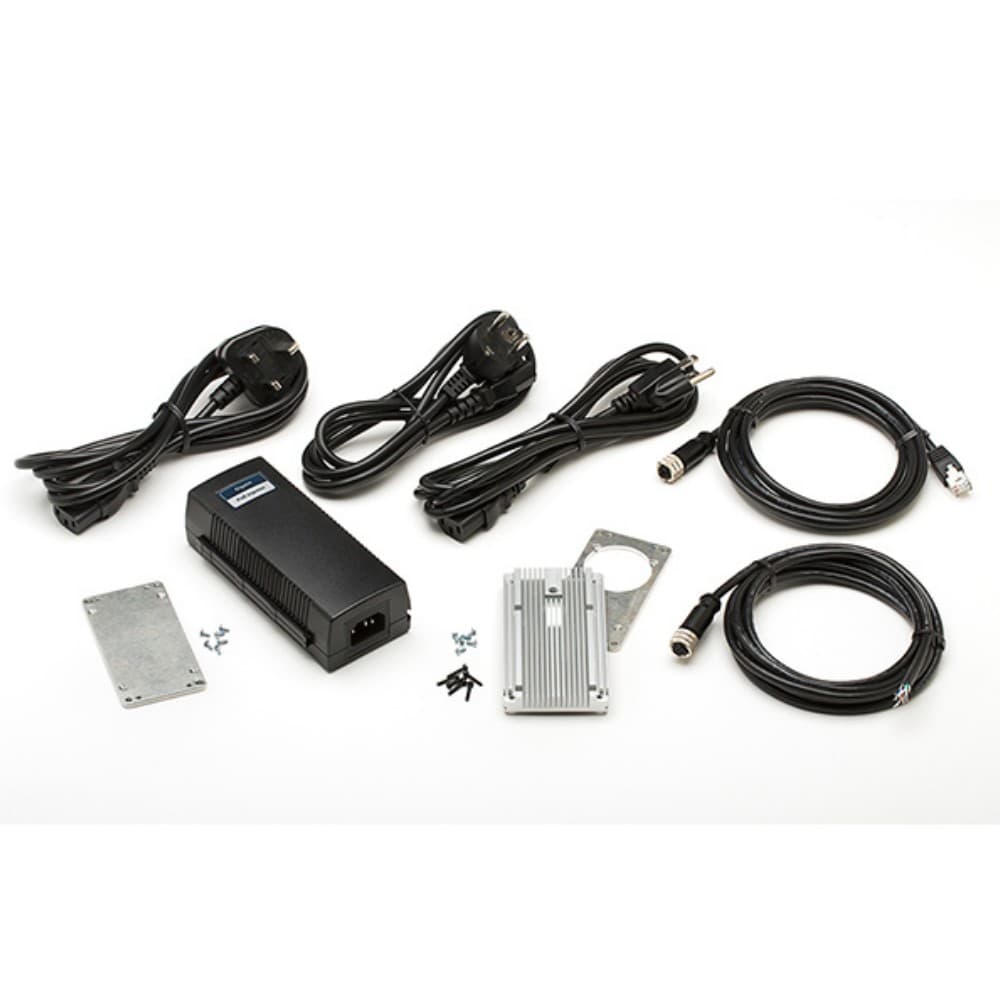

FLIR AX8-KIT กล้องถ่ายภาพความร้อนแบบต่อเนื่อง พร้อมชุดอุปกรณ์เสริม

Measurement

Object temperature range

–10 to +150°C

Accuracy

±2°C (±3.6°F) or ±2% of reading (+10 to +100°C@ +10 to +35°C ambient)

External power operation

12/24 VDC, 2 W continuously/ 4.7 W absolute max

External power, connector type

M12 8-pin A-coded (Shared with digital I/O)

Voltage

Allowed range 10.8–30 VDC

Power supply rating

Class 2 / LPS

Imaging and optical data

IR resolution

80 × 60 pixels

Thermal sensitivity/NETD

< 0.10°C @ +30°C (+86°F) / 100 mK

Field of view (FOV)

48° × 37°

Depth of field

0.1 m (0.33 ft.), infinity

Focal length

1.54 mm (0.061 in.)

Imaging and optical data

Spatial resolution (IFOV)

11.1 mrad

F-number

1.1

Image frequency

9 Hz

Focus

Fixed

Detector data

Detector type

Focal plane array (FPA), uncooled microbolometer

Spectral range

7.5–13 µm

Detector pitch

17 µm

Detector time constant

Typical 12 ms

Visual camera

Built-in digital camera

640 × 480

Digital camera, FOV

Adapts to the IR lens

Sensitivity

Minimum 10 lux without illuminator

Measurement

Object temperature range

–10 to +150°C (14 to +302°F)

Accuracy

±2°C (±3.6°F) or ±2% of reading (+10 to +100°C @ +10 to +35°C ambient)

Measurement analysis

Spotmeter

6

Area

6 boxes with max./min./average

Automatic hot/cold detection

Max./min. temperature value and position shown within box

Measurement presets

Yes

Atmospheric transmission correction

Automatic, based on inputs for distance, atmospheric temperature and relative humidity

Optics transmission correction

Automatic, based on signals from internal sensors

Emissivity correction

Variable from 0.01 to 1.0

Reflected apparent temperature correction

Automatic, based on input of reflected temperature

External optics/windows correction

Automatic, based on input of optics/window transmission and temperature

Measurement corrections

Global object parameters

Alarm

Alarm functions

Automatic alarms on any selected measurement function. A maximum of 5 alarms can be set.

Alarm output

Digital out, store image, file sending (FTP), email (SMTP), notification
