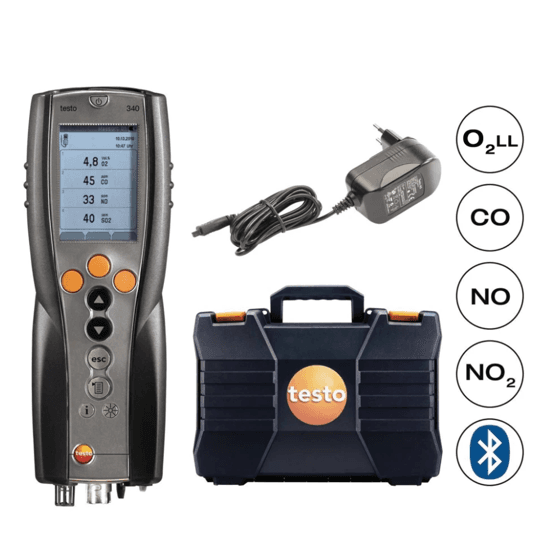

Testo-340 Flue gas analyzer for use in industry
TESTO-340
Testo-340
การควบคุมการปล่อยมลพิษในอุตสาหกรรม: เครื่องวิเคราะห์ก๊าซไอเสีย testo 340 มอบเทคโนโลยีระดับมืออาชีพ ใช้งานง่าย และตอบโจทย์การใช้งานจริงไว้ในเครื่องเดียว เครื่อง testo 340 ประสิทธิภาพสูงนี้ติดตั้งเซนเซอร์ O₂ มาให้ และสามารถเพิ่มเซนเซอร์อื่นได้สูงสุดอีก 3 ตัว
คำถามที่พบบ่อย
มีข้อสงสัยเกี่ยวกับสินค้า/บทความ สอบถามชุมชนหรือผู้เชี่ยวชาญของเรา
Feature
Customisable Gas Sensors – Supports up to four configurable gas sensors for flexible and on-site replacements.
True NOx Measurement – Comes with O2 LL, CO, NO, and NO2 sensors, allowing precise total NOx calculations.
Extended Measurement Range - Accurately measures high gas concentrations without sensor overload.
Designed for Industrial Use – Built for robust and demanding industrial applications.
Seamless Data Management – Transfer and analyse measurement data easily on a PC or notebook.
Specifications
Differential Pressure - Piezoresistive | Measuring range -200 to 200 hPa |
|---|---|
Accuracy ±1.5 % of mv (Remaining Range) ±0.5 hPa (-49.9 to 49.9 hPa) | |
Resolution 0.1 hPa | |
Absolute Pressure | Measuring range +600 to +1150 hPa |
|---|---|
Accuracy ±10 hPa | |
Resolution 1 hPa | |
Flue gas O₂ | Measuring range 0 to 25 Vol.% |
|---|---|
Accuracy ±0.2 Vol.% | |
Resolution 0.01 Vol.% | |
Reaction time t₉₀ < 20 s | |
Flue gas CO (with H₂-compensation) | Measuring range 0 to 10000 ppm |
|---|---|
Accuracy ±10 % of mv (2001 to 10000 ppm) ±10 ppm or ±10 % of mv (0 to 200 ppm) ±20 ppm or ±5 % of mv (201 to 2000 ppm) | |
Resolution 1 ppm | |
Reaction time t₉₀ < 40 s | |
Flue gas COlow (with H₂-compensation) | Measuring range 0 to 500 ppm |
|---|---|
Accuracy ±5 % of mv (Remaining Range) data corresponds to 20°C ambient temperature. Additional temperature coefficient 0.25% of reading/K. ±2 ppm (0 to 39.9 ppm) | |
Resolution 0.1 ppm | |
Reaction time t₉₀ < 40 s | |
Flue gas NO | Measuring range 0 to 4000 ppm |
|---|---|
Accuracy ±10 % of mv (2000 to 4000 ppm) ±5 ppm (0 to 99 ppm) ±5 % of mv (100 to 1999 ppm) | |
Resolution 1 ppm | |
Reaction time t₉₀ < 30 s | |
Flue gas Nolow | Measuring range 0 to 300 ppm |
|---|---|
Accuracy ±2 ppm (0 to 39.9 ppm) ±5 % of mv (Remaining Range) | |
Resolution 0.1 ppm | |
Reaction time t₉₀ < 30 s | |
Flue gas NO₂ | Measuring range 0 to 500 ppm |
|---|---|
Accuracy ±10 ppm (0 to 199 ppm) ±5 % of mv (Remaining Range) | |
Resolution 0.1 ppm | |
Reaction time t₉₀ < 40 s | |
To avoid absorption, a maximum measurement duration of 2 hours should not be exceeded. | |
Flue gas SO₂ | Measuring range 0 to 5000 ppm |
|---|---|
Accuracy ±10 ppm (0 to 99 ppm) ±10 % of mv (Remaining Range) | |
Resolution 1 ppm | |
Reaction time t₉₀ < 40 s | |
To avoid absorption, a maximum measurement duration of 2 hours should not be exceeded. | |
Differential Pressure flue gas Draught - Piezoresistive | Measuring range -40 to +40 hPa |
|---|---|
Accuracy ±1.5 % of mv (Remaining Range) ±0.03 hPa (-2.99 to +2.99 hPa) | |
Resolution 0.01 hPa | |
Temperature | Measuring range -40 to +1200 °C |
|---|---|
Accuracy ±0.5 °C (0 to +99 °C) ±0.5 % of mv (Remaining Range) | |
Resolution 0.1 °C | |
Flue gas degree of effectivity, Eta (calculated) | Measuring range 0 to 120 % |
|---|---|
Resolution 0.1 % | |
Flue gas loss (calculated) | Measuring range 0 to 99.9 % |
|---|---|
Resolution 0.1 % | |
Flue gas dewpoint (calculated) | Measuring range 0 to 99.9 °Ctd |
|---|---|
Resolution 0.1 °Ctd | |
Flue gas CO₂ calculation (calculated from O₂) | Measuring range 0 to CO₂ max |
|---|---|
Accuracy ±0.2 Vol.% | |
Resolution 0.1 Vol.% | |
Reaction time t₉₀ < 40 s | |
General technical data | Weight 960 g |
|---|---|
Dimensions 283 x 103 x 65 mm | |
Operating temperature -5 to +50 °C | |
Product-/housing material TPE PC | |
Protection class IP40 | |
Connectable probes 1 x flue gas probe; 1 x temperature probe; 1 x differential pressure | |
Product colour Black | |
Battery life > 6h (Pumpe an, Displaybeleuchtung aus, bei 20°C) | |
Display type graphic Display | |
Display size 160 x 240 pixels | |
Display function Graphic display | |
Power supply Battery block 3.7 V / 2.4 Ah, Mains unit 6.3 V / 2 A | |
User defined fuels 10 user-defined fuels incl. test gas as fuel | |
Pump flow 0.6 l/min (regulated) | |
Hose length max. 7.8 m (corresponds to two probe hose extensions) | |
Max. pos. press./flue gas 50 mbar | |
Max. neg. press./flue gas -200 mbar | |
Maximum memory 100 folders | |
Storage per folder Max. 10 sites | |
Storage per site Max. 200 logs | |
Miscellaneous The max. number of logs is determined by the number of folders or sites | |
Interface Bluetooth®; USB; IR/IRDA interface; gas outlet; Mains connection; probe input/ probe inputs; Differential Pressure | |
Storage temperature -20 to +50 °C |
