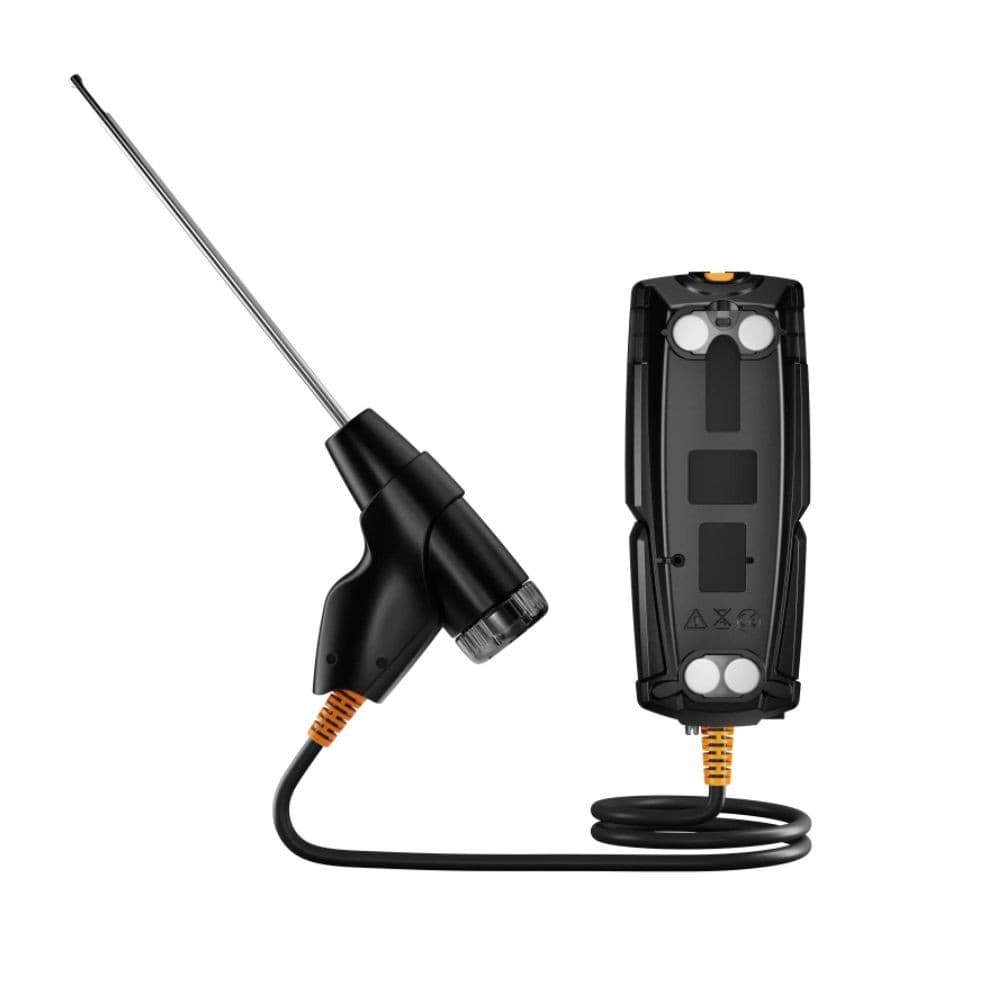

Order no. 0563 3104 ชุดตรวจวัดก๊าซ O2, CO, CO2, Draft & Pressure, Combustion efficiency & excess air, Undiluted CO, Ambient CO ฟังก์ชั่นการเชื่อมต่อกับ testo Smart App ผ่าน Bluetooth
Testo-310-KIT-ll | ฟังก์ชั่นการวัด
ตรวจวัดก๊าซ
Testo-310-KIT-ll | จุดเด่น

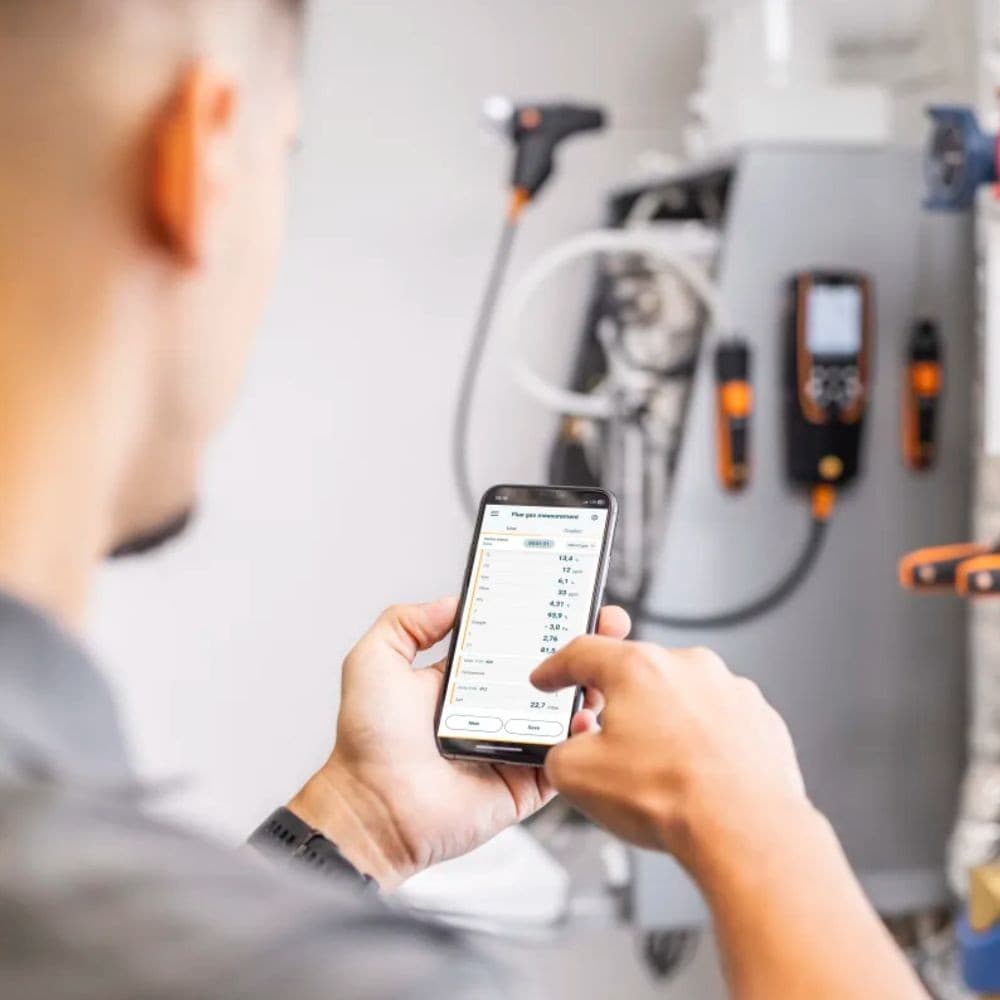

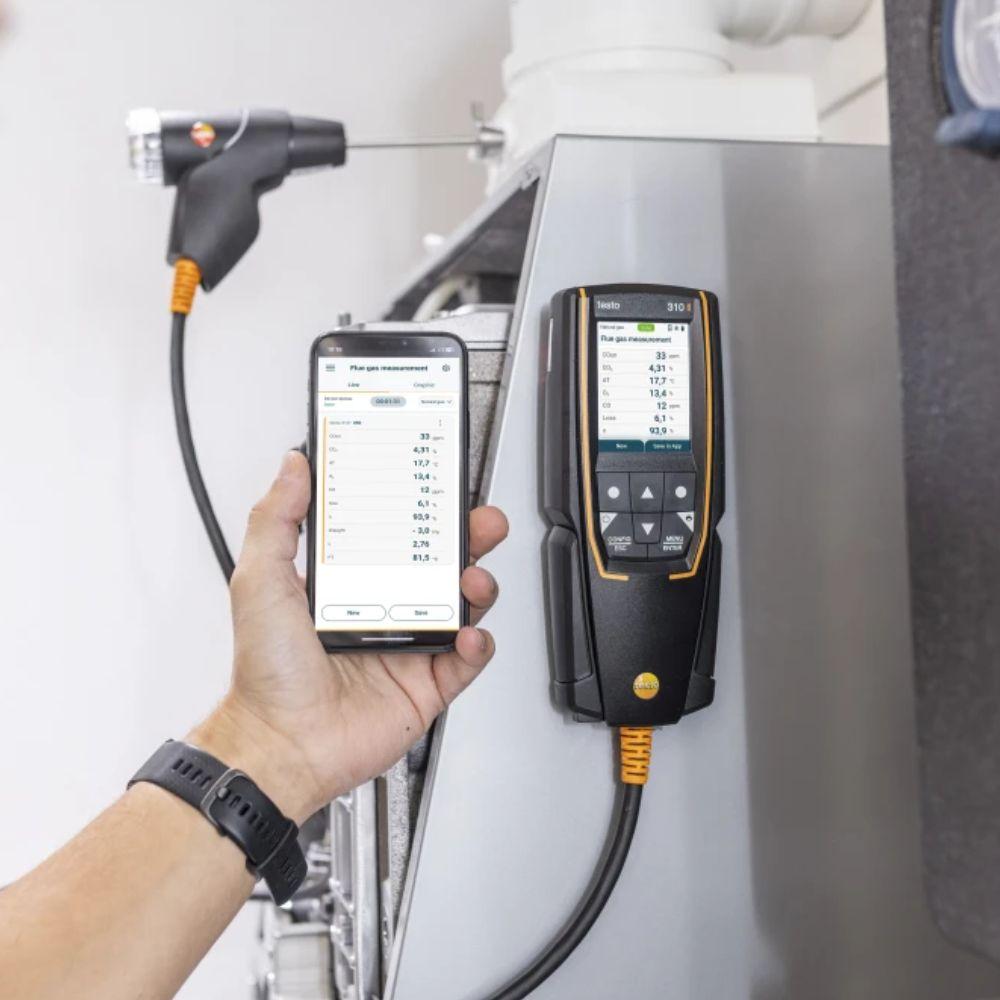

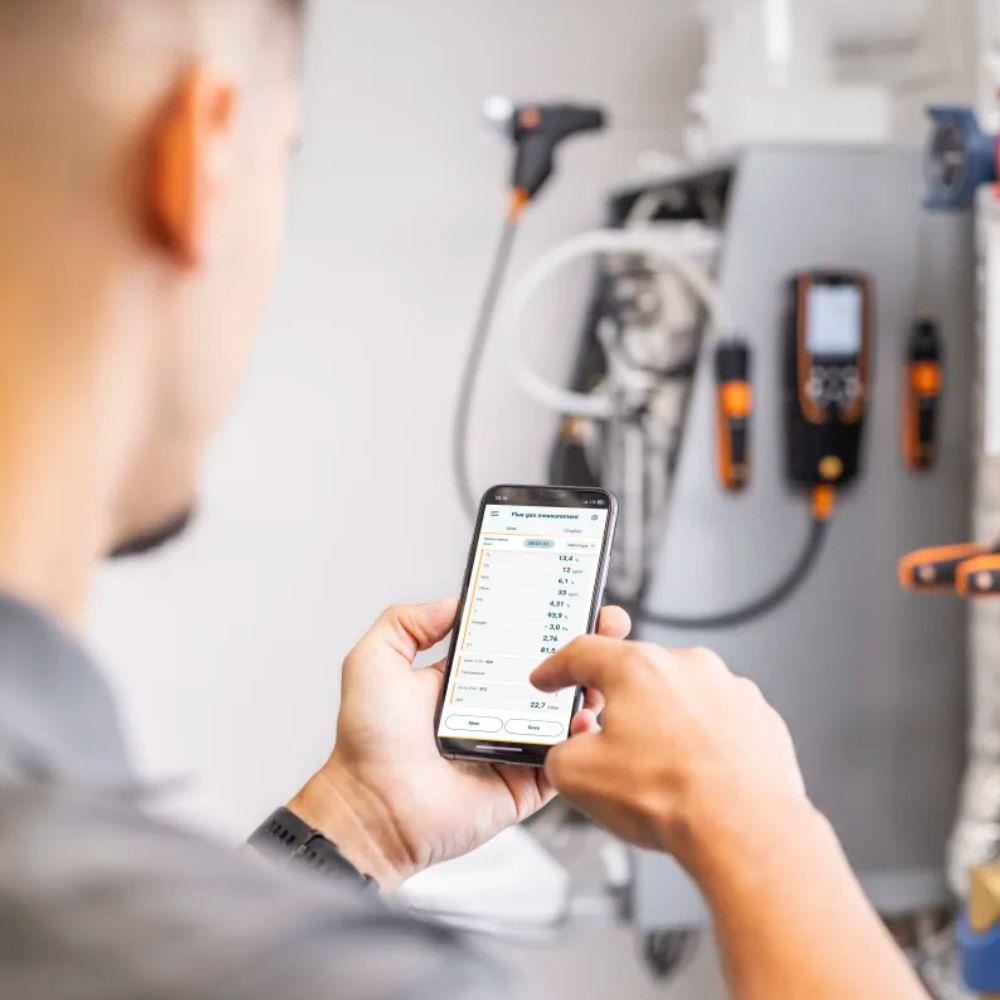

ฟังก์ชั่นการเชื่อมต่อกับ testo Smart App ผ่าน Bluetooth
Testo-310-KIT-ll | ช่วงการวัด
Temperature - Type K TC
Measuring range
-4° to 212 °F / -20 to +100 °C
Accuracy
±2 °F / ±1 °C
Resolution
0.1 °F / 0.1 °C
Reaction time
< 50 sec
Temperature - Type J TC
Measuring range
32° to 752 °F / 0 to +400 °C
Accuracy
±1.5 % of mv (> 212 °F) / ±1.5 % of mv (> 100 °C)
±1.8 °F (32° to 212 °F) / ±1 °C (0 to +100 °C)
Resolution
0.1 °F / 0.1 °C
Reaction time
< 50 sec
Flue gas O₂
Measuring range
0 to 21 Vol.%
Accuracy
±0.2 Vol.%
Resolution
0.1 Vol.%
Reaction time t₉₀
30 sec
Flue Gas Draft
Measuring range
-8 to +8 InH₂O / -20 to +20 hPa
Accuracy
±1.5 % of mv (Remaining Range)
±0.01 InH₂O (-1.20 to +1.20 InH₂O) / ±0.03 hPa (-3.00 to +3.00 hPa)
Resolution
0.01 InH₂O / 0.01 hPa
Efficiency (calculated)
Measuring range
0 to 120 %
Resolution
0.1 %
Flue Gas loss (calculated)
Measuring range
0 to 99.9 %
Resolution
0.1 %
Pressure measurement
Measuring range
-16 to +16 InH₂O / -40 to +40 hPa
Accuracy
±0.2 InH₂O / ±0.5 hPa
Resolution
0.1 InH₂O / 0.1 hPa
Flue gas CO (without H₂-compensation)
Measuring range
0 to 4000 ppm
Accuracy
±10 % of mv (2001 to 4000 ppm)
±20 ppm (0 to 400 ppm)
±5 % of mv (401 to 2000 ppm)
Resolution
1 ppm
Reaction time t₉₀
60 sec
Ambient CO
Measuring range
0 to 4000 ppm
Accuracy
±10 % of mv (2001 to 4000 ppm)
±20 ppm (0 to 400 ppm)
±5 % of mv (401 to 2000 ppm)
Resolution
1 ppm
Reaction time
60 sec
Testo-310-KIT-ll | Power Supply
Battery: 1500 mAh, mains unit 5V/1A
Testo-310-KIT-ll | ขนาดสินค้า
Weight
Approx. 23 oz. / Approx. 660 g
Dimensions
8 x 3 x 2 in. / 201 x 83 x 44 mm

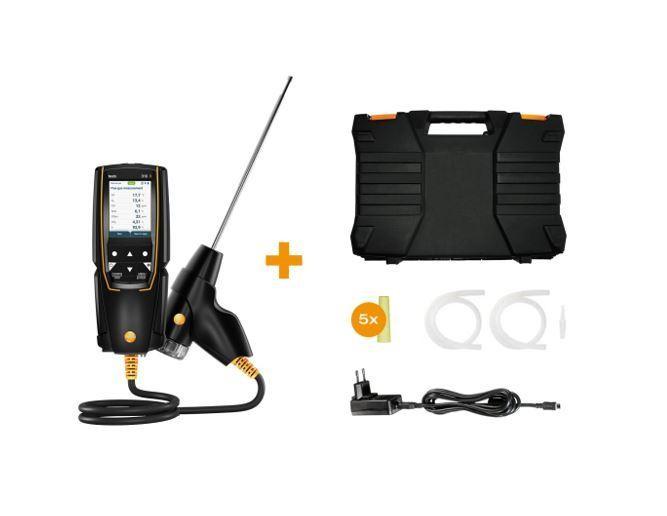

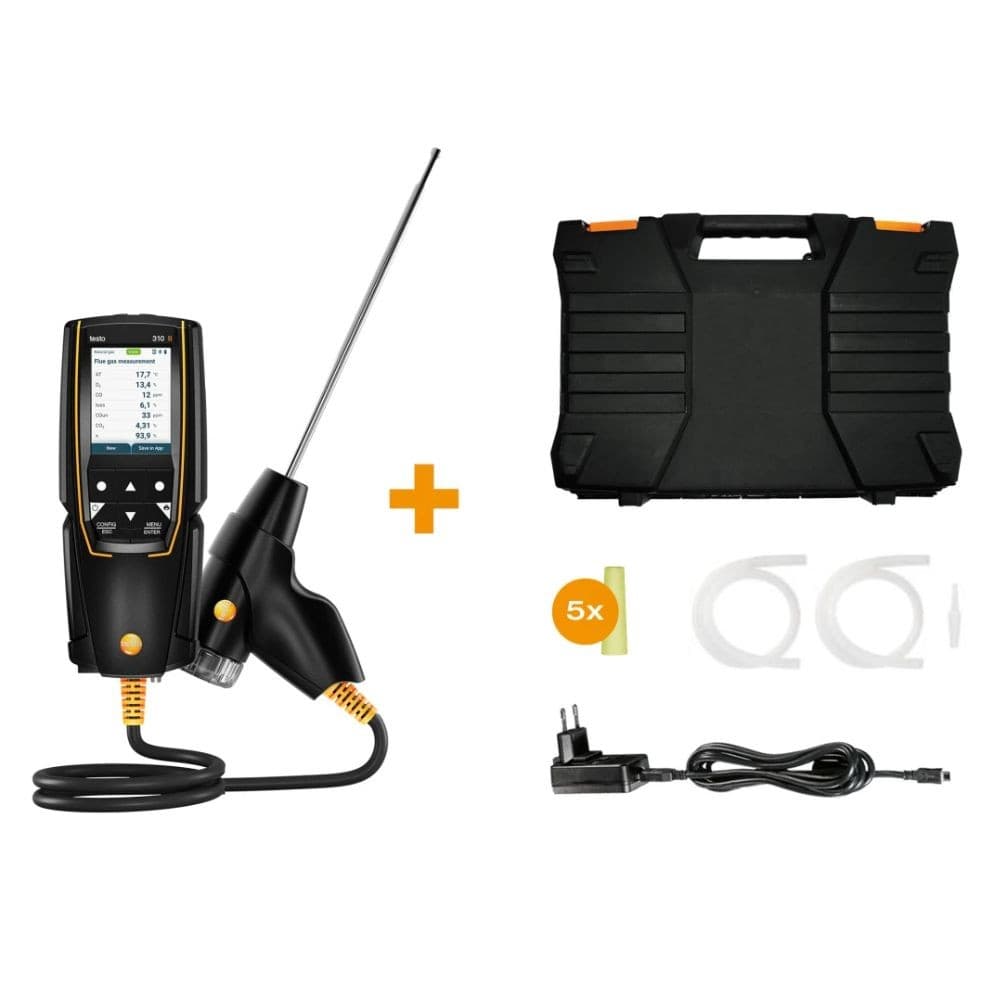

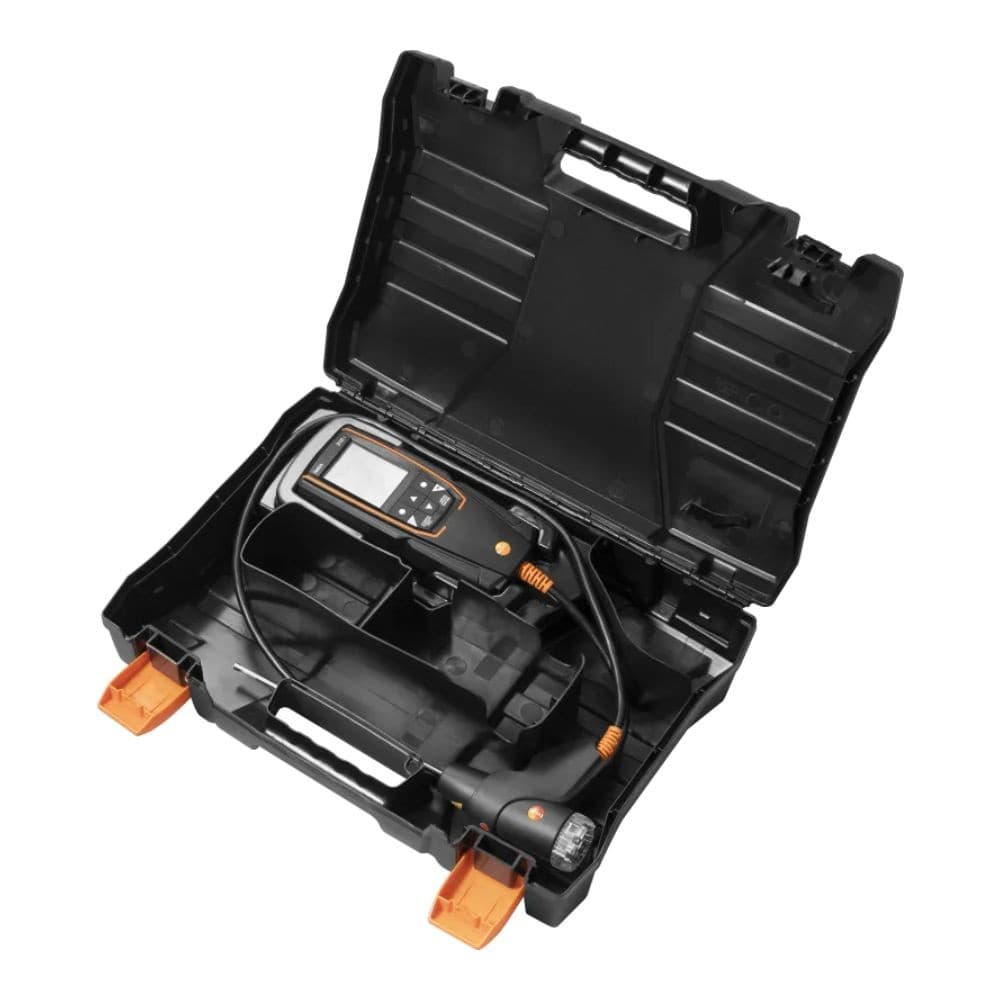

Testo-310-KIT-ll | อุปกรณ์ที่มาในชุด
ตัวเครื่อง
Calibration protocal
Testo-310-KIT-ll | อุปกรณ์เสริม
Product kits
testo 310 II flue gas analyzer Order no.0563 3104

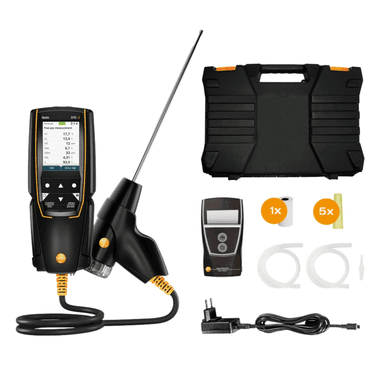

testo 310 II flue gas analyzer with printer Order no.0563 3105
Measuring instrument accessories
USB mains unit, including cable Order no.0554 1105
testo BLUETOOTH®/IRDA printer Order no.0554 0621
Spare thermal paper for printer, permanent ink Order no.0554 0568
Spare dirt filter Order no.0554 0040
Spare gas sensors
Spare O2 sensor Order no.0390 0085
Spare CO sensor Order no.0390 0119
Testo-310-KIT-ll | ข้อมูลจำเพาะ
Operating temperature
-5 to +45 °C

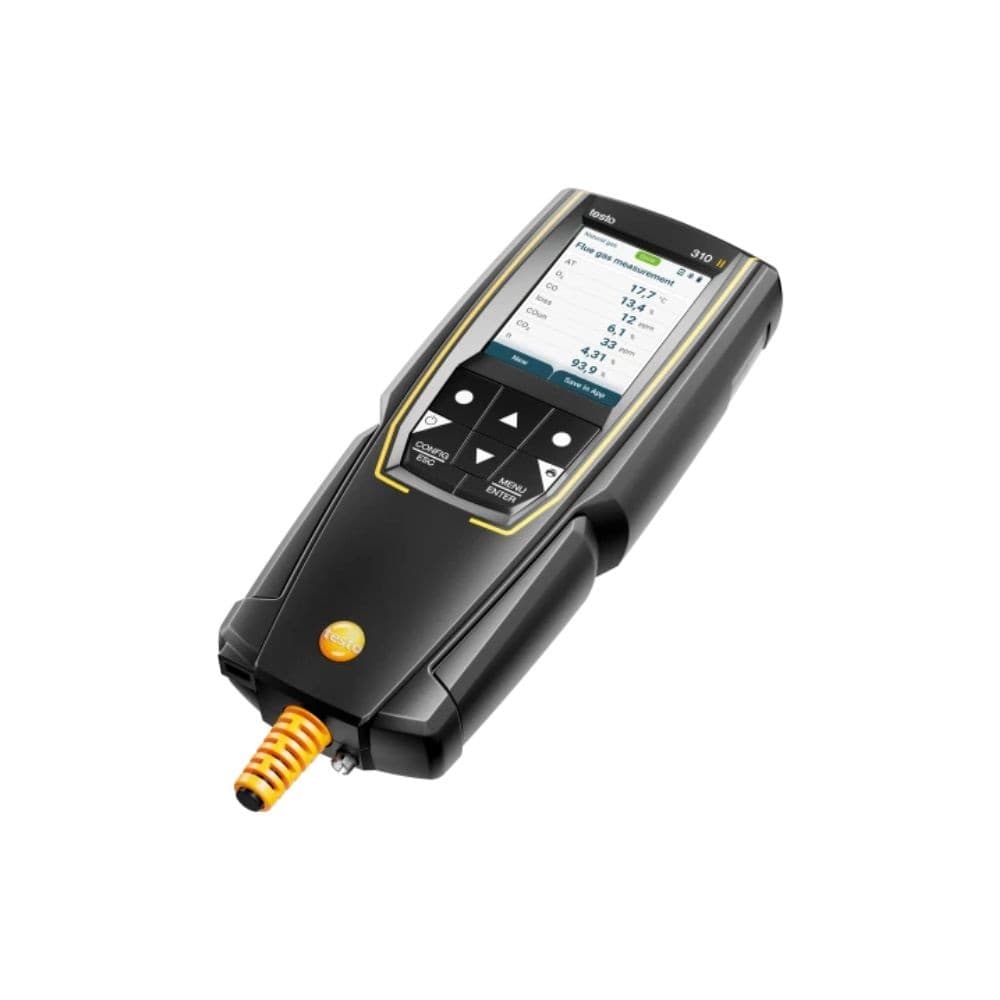

Display function
Graphic 7-line display
