เครื่องวัดแรงดึง/แรงผลักแบบดิจิตอล ช่วงการวัดสูงสุด 50N Resolution 0.01N ยี่ห้อ IMADA , Japan
ZTS-50N ฟังก์ชั่นการวัด

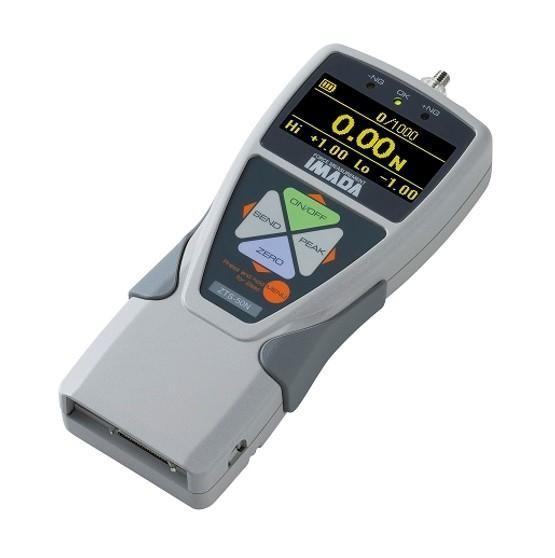

เครื่องวัดแรงดึง/แรงผลัก Digital Force Gauge
ZTS-50N จุดเด่น
High sampling rate (2000Hz) for accurate results, capturing small changes and accurate peak values by following rapid changes of force
Reduces risk of misreading values with easy-to-read high luminance organic EL display. Allows customers to customize the contents for the three sections of the display screen
Improves testing versatility by various data output options such as USB, wireless, and serial communication, which allows data management on a PC and combination with external devices
Allows easy data acquisition and management with the included USB cable and software. By using with optional software real-time force-time graphing also possible
Next Series (Firmware Ver.5 or later) equips extended functions such as firmware updates and various software downloads from IMADA download site
ZTS-50N ช่วงการวัด
Capacity 50N
Display 50.00N
Resolution 0.01N
Accuracy +/-0.2%F.S.+/-1digit
ZTS-50N Power Supply
Rechargeable
ZTS-50N ขนาดสินค้า
Weight Approx.490g
Unit: mm

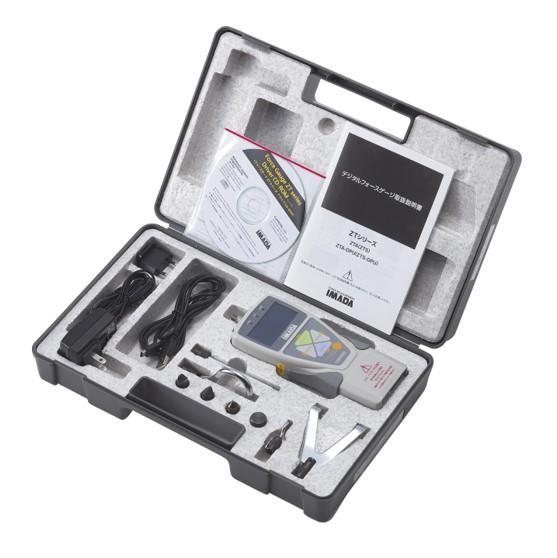

ZTS-50N อุปกรณ์ที่มาในชุด
AC adapter,
Inspection certificate,
CD driver (including data logging software),
Attachments (The set of attachments varies according to range.),
Handles (only for 2500N/5000N range),
USB cable,
Carrying case.
ZTS-50N ข้อมูลจำเพาะ
Feature Standard Model with high functionality and usability.
Measurement Unit N, kgf, lbf (*1)
Display 4-digit Organic EL
Display update 16 / sec
Sampling Rate 2000 data / sec at maximum
Battery 6.5 hours (2 hours for re-charging)
Safe overload rating Approx.200%F.S.
Operating environment
Temperature: 0 to +40 degree Celsius,
Humidity: 20 to 80%RH
Function
Customized display (header and footer), Peak hold (tension and compression), Internal 1000 points data memory, Comparator (judgment of OK or NG),
Reversible display, Sign inversion, Zero clear timer, +NG alarm, Off timer (auto power off), Dumping, Time display, Setting lock
Output
USB, RS232C / ±2VDC analog output (D/A), Comparator 3 steps (-NG/OK/+NG), Overload alarm
Overload warning Approx.110%F.S. (Warning message and alarm)
External connecting switch Power ON / OFF / Send and Hold / Zero reset / Peak and Real-time switching
