วัดและแสดงเส้นโค้ง I-V ได้ถึง 1500V และ 30A รวมถึงโมดูลที่มีประสิทธิภาพสูง รุ่น PV ในตัวขั้นสูงให้การตรวจสอบประสิทธิภาพโซลาร์เซลล์ได้ในทันที อินเตอร์เฟซไร้สายสำหรับการตั้งค่าที่รวดเร็วขึ้น สภาพแวดล้อมการทำงานที่ปลอดภัยยิ่งขึ้น และอิสระในการเคลื่อนที่ในระหว่างการแก้ไขปัญหาของแผงโซลาร์เซลล์ การจัดการ วิเคราะห์ และรายงานข้อมูลโดยอัตโนมัติ ตรวจสอบความสมบูรณ์ของสายเคเบิลด้วยการทดสอบความต้านทานฉนวน 2500V
PVA-1500HE2 ฟังก์ชั่นการวัด
วัดและแสดงเส้นโค้ง I-V ได้ถึง 1500V และ 30A
PVA-1500HE2 ช่วงการวัด
Voltage Range (Voc) 20 to 1500V DC
Voltage Accuracy ±(0.5% + 0.25V)
Current Accuracy ±(0.5% + 0.04A)
Power Accuracy ±(1.7% + 1.0W) (current ≥3A, module efficiency <19%)
I-V Trace Points 100 or 500 (selectable)
I-V Sweep Duration 0.05 to 2 seconds (typically 0.2 seconds for PV strings)
Operating Temperature (ambient) 0 to 45 °C (32 to 113 °F)
Safety and Regulatory CAT III 1500V, CE, UKCA, TUV
Maximum Current (Isc)
Module Efficiency <19% 30A DC
Module Efficiency ≥19% 30A DC
Measurement Throughput
Sweep-to-sweep delay (@VOC ≤ 1350V) <9 seconds
Max number of I-V sweeps per hour (@VOC ≤ 1350V) 400 sweeps/hr
Max megawatts measured per hour 3.5 MW/hr
PVA-1500HE2 ขนาดสินค้า
Weight 7.3 kg, 16.09 lb
Height 53.3 cm, 1.74 ft

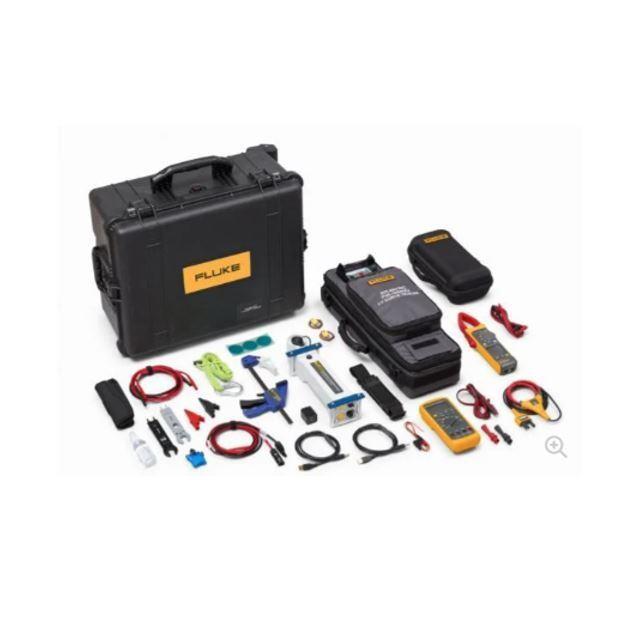

PVA-1500HE2 อุปกรณ์ที่มาในชุด
Solmetric PVA-1500HE2
Thermography Kit
Clamp and Multimeter Kit
Insulation, Clamp and Multimeter Kit
Insulation Testing 2500V Kit
PVA-1500HE2 ข้อมูลจำเพาะ
Thermal Capacity - Number of I-V sweeps before the PVA must cool down
25 °C (77 °F) Ambient, 9 or 18 second sweep-to-sweep delay Unlimited
45 °C (113 °F) Ambient, 18 second sweep-to-sweep delay 550
45 °C (113 °F) Ambient, 9 second sweep-to-sweep delay 330
SolSensor™
Irradiance Accuracy :
±2 % when used to predict the performance of well characterized poly- and monocrystalline PV modules with direct irradiance >600W/m2. Contact Fluke for more information on accurate irradiance measurements.
Cell Temperature Accuracy ±2 ºC (not including limits of error of thermocouple)
Tilt Accuracy ±2° typical (0 to 45°)
Update Interval Typically, 3.5 s
Wireless Range 100 m (open line of sight)
