KEW-2012RA ฟังก์ชั่นการวัด

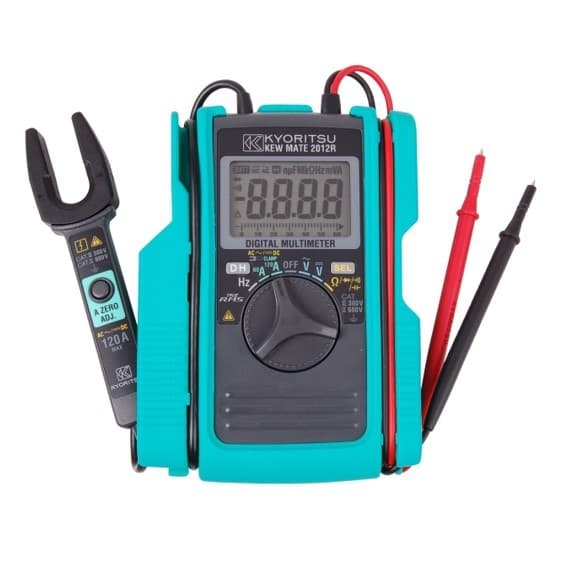

DIGITAL MULTIMETER WITH AC/DC CLAMP SENSOR
KEW-2012RA จุดเด่น
Capable of measuring AC and DC currents with OPEN CLAMP SENSOR 120A
Cable strength increased with robust cable protection

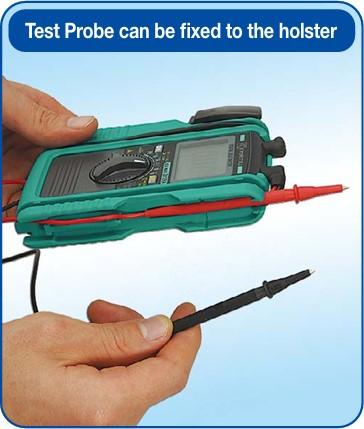

Test probe can be fixed to the holster
Can measure AC/DC current and voltage
Pocket size and heavy duty design
Test lead cap to protect from short circuit accident
The open jaws are thin, perfect to clamp wires even in tight spaces
KEW-2012RA ช่วงการวัด
DC V
600.0mV/6.000/60.00/600.0V
(Input impedance: Approx. 10MΩ)
±1.0%rdg±3dgt
AC V
6.000/60.00/600.0V
(Input impedance: Approx. 10MΩ)
±1.5%rdg±5dgt (45 to 400Hz)
DC A
60.00/120.0A
±2.0%rdg±8dgt (60A)
±2.0%rdg±5dgt (120A)
AC A
60.00/120.0A
±2.0%rdg±5dgt (45 to 65Hz)
Ω
600.0Ω/6.000/60.00/600.0kΩ/6.000/60.00MΩ
±1.0%rdg±5dgt (600Ω/6/60/600kΩ)
±2.0%rdg±5dgt (6MΩ)
±3.0%rdg±5dgt (60MΩ)
Continuity buzzer
Buzzer sounds below 35±25Ω
Diode test
2.000V
±3.0%rdg±5dgt
Open circuit voltage: Approx. 2.7V
Capacitance
400.0nF/4.000/40.00µF
±2.5%rdg±10dgt
Frequency
(AC A) 99.99/400.0Hz
±0.2%rdg±2dgt (100Hz)
±0.1%rdg±1dgt (400Hz)
(AC V) 99.99/999.9Hz/9.999/99.99/300.0kHz
±0.2%rdg±2dgt (100Hz)
±0.1%rdg±1dgt (1000Hz/10/100/300.0kHz)
(Input sensitivity Current: more than 6A Voltage: more than 6V [to 10kHz]/more than 20V [10 to 300kHz])
KEW-2012RA Power Supply
R03 (AAA)(1.5V) × 2
* Continuous measuring time: DCV: approx. 150hours, ACA: Approx. 25hours (Auto power save: Approx. 15 minutes)
KEW-2012RA ขนาดสินค้า
128 (L) × 92 (W) × 27 (D) mm
Approx. 220g (including batteries)
Conductor size Ø12mm max.
KEW-2012RA อุปกรณ์ที่มาในชุด
R03 (AAA) × 2
Instruction manual
KEW-2012RA อุปกรณ์เสริม
9107 (Soft case)
KEW-2012RA ข้อมูลจำเพาะ
Applicable standards
IEC 61010-1 CAT III 300V, CAT II 600V Pollution degree 2
IEC 61010-031, IEC 61010-2-032, IEC 61326-1, EN 50581(RoHS)
