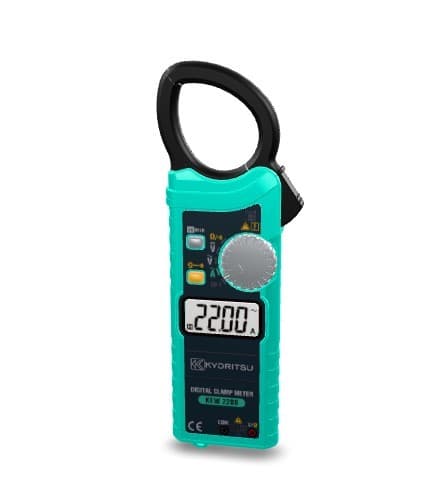

KYORITSU KEW-2200 แคลมป์มิเตอร์ Digital Clamp meter

40.00/400.0/1000A (Auto-ranging)
±1.4%rdg±6dgt (50/60Hz)
±1.6%rdg±6dgt (45 to 65Hz)

4.000/40.00/400.0/600V (Auto-ranging)
±1.8%rdg±7dgt (45 to 65Hz)
±2.3%rdg±8dgt (65 to 500Hz)

400.0mV/4.000/40.00/400.0/600V (Auto-ranging)
±1.0%rdg±3dgt (*1)

400.0Ω/4.000/40.00/400.0kΩ/4.000/40.00MΩ (Auto-ranging)
±2.0%rdg±4dgt (0 to 400kΩ)
±4.0%rdg±4dgt (4MΩ)
±8.0%rdg±4dgt (40MΩ)

Buzzer sounds below 50±30Ω

φ33mm max.

IEC 61010-1 CAT III 600V Pollution degree 2 (AC A),
                        CAT III 300V / CAT II 600V Pollution degree 2 (AC/DC V)
IEC 61010-031, IEC 61010-2-032, IEC 61326 (EMC)

R03/LR03 (AAA) (1.5V) × 2
*continuous measuring time:
 Approx. 350 hours (Auto power off: Approx. 10 minutes)

190(L) × 68(W) × 20(D)mm

Approx. 120g (including batteries)

7107A (Test leads),
9160 (Carrying case),
R03 (AAA) × 2, Instruction Manual
