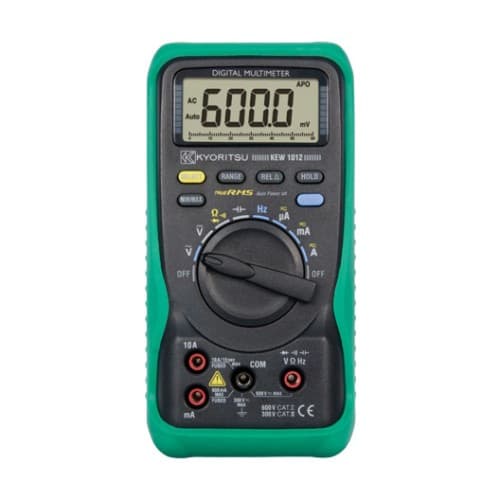

KYORITSU KEW-1012 ดิจิตอลมัลติมิเตอร์

600.0mV/6.000/60.00/600.0/600V (Input Impedance: 10MΩ, 100MΩ only 600mV)
±0.5%±2dgt (600.0mV/6.000/60.00/600.0V)
±0.8%±3dgt (600V)

6.000/60.00/600.0/600V (Input Impedance: 10MΩ)
±1.5%±5dgt (6.000V)
±1.2%±3dgt (60.00/600.0V)
±1.5%±5dgt (600V)

600/6000µA/60/600mA/6/10A
±1.2%±3dgt (600/6000µA/60/600mA)
±2.0%±5dgt (6/10A)

600/6000µA/60/600mA/6/10A
±1.5%±4dgt (600/6000µA/60/600mA)
±2.2%±5dgt (6/10A)

600Ω/6/60/600kΩ/6/60MΩ
±1.0%±2dgt (600Ω/6/60/600kΩ/6MΩ)
±2.0%±3dgt (60MΩ)

0 to 600Ω (Buzzer sounds below 100Ω)

2.8V open circuit voltage: Approx. 0.4mA Test Current

40/400nF/4/40/400/4000µF

10/100/1000Hz/10/100/1000kHz/10MHz

0.1 to 99.9% (Pulse width/Pulse period)
±2.0%±2dgt (to 10kHz)

IEC 61010-1 CAT III 300V / CAT II 600V Pollution degree 2
IEC 61010-031 IEC 61326

6040 Counts

R6 (1.5V) × 2 (Auto-power-OFF within 15 minutes)

161(L) × 82(W) × 50(D)mm

Approx. 280g

7066A (Test leads)
8918 (Ceramic fuse[0.8A/600V]) × 1 (included)
8919 (Ceramic fuse[10A/600V]) × 1 (included)
R6 × 2
Instruction Manual

7234 (Crocodile clip test lead)
9095 (Carrying case)
