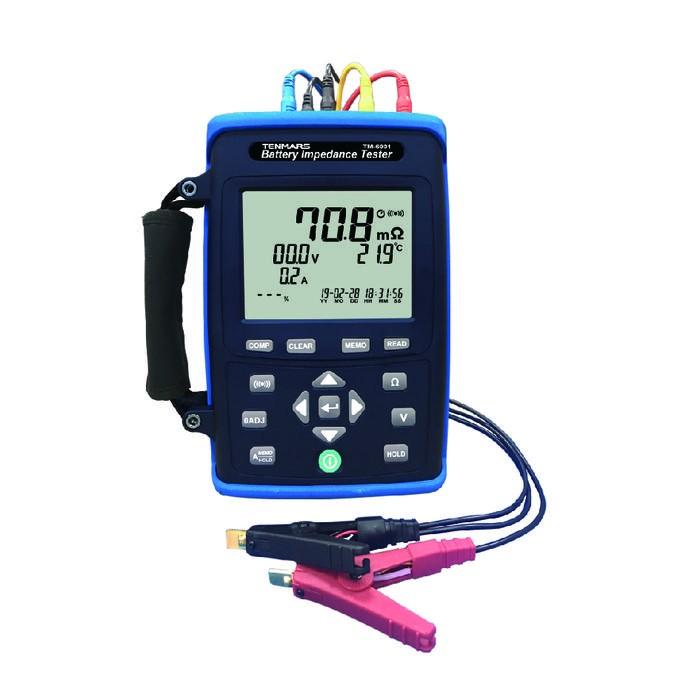

TENMARS TM-6001 เครื่องวัดแบตเตอรี่ ความต้านทานแบตเตอรี่ Battery Impedance Tester

TM-6001 ฟังก์ชั่นการวัด

Resistance measurements

Voltage Measurements

Temperature measurement

TM-6001 จุดเด่น

• TM-6001 is an ideal tester for automotive, UPS maintenance and telecommunication applications.
• Quick response time.
• Simultaneously display the results of battery Impedance,voltage measurements.
• Support the comparator function to rate the conditions as pass,warning or fail.

TM-6001 ช่วงการวัด

Electrical Specifications:(23℃±5℃, below 80％RH )

Resistance measurements:

•Temperature coefficient ：±(0.1％ rdg+0.5digits)/℃.
•Measurement current frequency：1KHZ±30HZ.
•Measurement open-circuit terminal voltage：7Vp-p

Range:  4mΩ            Resolution: 1μΩ         Measurement current: 150m A approx.      Accuracy: ±(1％ reading+20digits)

Range:  40mΩ            Resolution: 10μΩ         Measurement current:  150m A approx.

Range:  400mΩ          Resolution: 100μΩ       Measurement current:  50m A approx.

Range:  4Ω                  Resolution: 1mΩ          Measurement current:  15m A approx.

Range:  4Ω                  Resolution: 1mΩ          Measurement current:  15m A approx.

Range:  40Ω                Resolution: 10mΩ        Measurement current:  1.5m A approx.

Range:  400Ω              Resolution: 100mΩ      Measurement current:  150μ A approx.

Accuracy : ±(0.8％reading＋10digits)

Voltage Measurements:

Temperature coefficient:(±0.1％ rdg ±0.5digits)/°C

Range: 6V                   Resolution: 1mV

Range: 60V                 Resolution: 10mV

Accuracy: ±(0.1％ reading＋6digits)

Temperature measurement:

Measurement Range: -20°C~60°C              Resolution :  0.1°C             Accuracy: ±1.0°C

Measurement Range: -4°F~140°F              Resolution :  0.1°F             Accuracy: ±1.8°F

External T10 adapter and K-Type temperature measurement

Measurement Range: -0°C~400°C              Resolution :  0.1°C             Accuracy: ±2.0°C

Measurement Range: 32°F~752°F              Resolution :  0.1°F             Accuracy: ±3.6°F

TM-6001 Power Supply

1.5V AA alkaline battery x 6 pcs

TM-6001 ขนาดสินค้า

Dimension: 240mm(L)x170mm(W)x66mm(H).

Weight:about 1500g. (Including battery)

TM-6001 อุปกรณ์ที่มาในชุด

User’s Manual
Kevin Clip type leads with temperature sensor
Pin type leads
AC100~240V 9V/1A(5.5*2.1*1.0mm) switching transformer
1.5 V – LR6 – AA – AM3 – MN 1500.
Carrying Case
5-pin USB cable
Installation CD

TM-6001 ข้อมูลจำเพาะ

Display：LCD display and LEDs (comparator output).
Sampling rate:2 Second.
Open-Circuit terminal voltage: 7.0Vp-p max.
Input over range: the screen displays “OL”.
Low battery detection: the screen displays “”.
Auto power off: The meter will turn off automatically after about 15 minutes of inactivity, allows user to set the inactive time (01〜99 minutes).
Comparator settings: High and Low limits of the comparators impedance and voltage.
Number of comparator settings: 99 sets.
