MIDTRONICS MDX-P300 เครื่องวิเคราะห์แบตเตอรี่และระบบไฟฟ้ารถยนต์ (Built-In Printer)MIDTRONICS MDX-P300 เครื่องวิเคราะห์แบตเตอรี่และระบบไฟฟ้ารถยนต์ (Built-In Printer)MIDTRONICS MDX-P300 เครื่องวิเคราะห์แบตเตอรี่และระบบไฟฟ้ารถยนต์ (Built-In Printer)MIDTRONICS MDX-P300 เครื่องวิเคราะห์แบตเตอรี่และระบบไฟฟ้ารถยนต์ (Built-In Printer)MIDTRONICS MDX-P300 เครื่องวิเคราะห์แบตเตอรี่และระบบไฟฟ้ารถยนต์ (Built-In Printer)
Midtronics

MIDTRONICS MDX-P300 เครื่องวิเคราะห์แบตเตอรี่และระบบไฟฟ้ารถยนต์ (Built-In Printer)

รหัสสินค้า

MDX-P300

฿26,500.00(ไม่รวมภาษี)

ภาพรวม

เครื่องวิเคราะห์และทดสอบแบตเตอรี่และระบบไฟฟ้ารถยนต์ ดำเนินการทดสอบแบตเตอรี่และระบบอย่างแม่นยำในไม่กี่วินาที สำหรับทดสอบแบตเตอรี่ระบบ 12 Vdc (100 to 1400 CCA) ฟังก์ชั่นการตรวจจับเซลล์แบตเตอรี่ที่ไม่ดี และการป้องกันกระแสไฟฟ้าย้อนกลับ Built-in printer สามารถพิมพ์ผลการทดสอบได้ทันที ยี่ห้อ MIDTRONICS

เพิ่มคำถาม

ผู้ใช้งาน

20 ตุลาคม 2567 12:44 น.

( 0 คำตอบ)

มีการสอน และคู่มือการใช้ ฉบับภาษาไทยหรือไม่

ผู้มาเยือน

23 ธันวาคม 2567 14:10 น.

( 0 คำตอบ)

ทำมัยบางครั้งในการวัดแบบใช้ค่าCCA พอใส่ค่าเป็นค่า STD เช่น 620 CCA แต่ค่าที่วัดออกมา สูงกว่า 1150 CCA เป็นต้น

MDX-P300 | ฟังก์ชั่นการวัด

ทดสอบแบตเตอรี่ CCA

วัดแรงดันไฟฟ้ากระแสตรง

MDX-P300 | จุดเด่น

  • Integrated printer provides immediate results to review with the customer
  • User-defined printout header
  • Tests 12 volt batteries and electrical systems for cars and light trucks
  • Tests starting and charging system voltage and displays results
  • Tests batteries from 100 to 1400 CCA
  • Bad cell detection
  • Reverse polarity protection
  • Tests discharged batteries down to 1 volt
  • Multiple rating system compatible (CCA, CA, MCA, SAE, DIN, EN, IEC)
  • Tests multiple battery chemistries: standard (flooded), AGM, and GEL
  • Multi-language capability, including: English, French-Canadian, Spanish, and Japanese

MDX-P300 | ช่วงการวัด

Test Range

  • 100 to 1400 CCA
  • 100 to 1400 CA
  • 100 to 1400 MCA
  • 100 to 1400 SAE
  • 100 to 550 DIN
  • 100 to 900 EN
  • 100 to 550 IEC
  • JIS#

Voltage Range

  • Tests 12-volt batteries down to 1 volt

Voltmeter

  • 0.9 to 16 Vdc, ±0.05 Vdc

MDX-P300 | Power Supply

Uses power of battery under test หรือ 9-volt battery

MDX-P300 | ขนาดสินค้า

230 x 102 x 65 mm (499 g)

Cable Length : 533.4 mm

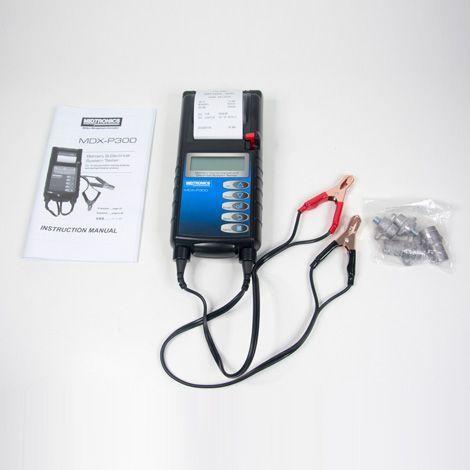

MDX-P300 | อุปกรณ์ที่มาในชุด

MIDTRONICS MDX-P300 เครื่องวิเคราะห์แบตเตอรี่และระบบไฟฟ้ารถยนต์  X1

Manual  X1


MDX-P300 | Application

Tests multiple battery chemistries including standard flooded
AGM Spiral, and GEL Flooded Lead-Acid

Tests 12 volt batteries and electrical systems for cars and light trucks (12-Volt Charging System)

MDX-P300 | ข้อมูลจำเพาะอื่นๆ


Supported Battery Types :12-Volt Automotive Batteries

Display : LCD text display

Temperature Compensation : Tester prompted

Operating Temperature : 0 to 50˚C

Languages: English/ Spanish/ French-Canadian/ Japanese


MDX-P300 | ตัวอย่าง  Print-out

ตัวอย่าง Print-out  ข้อมูลการวัดจากตัวเครื่อง

MIDTRONICS MDX-P300 เครื่องวิเคราะห์แบตเตอรี่และระบบไฟฟ้ารถยนต์ (Built-In Printer)

MIDTRONICS MDX-P300 เครื่องวิเคราะห์แบตเตอรี่และระบบไฟฟ้ารถยนต์ (Built-In Printer)
