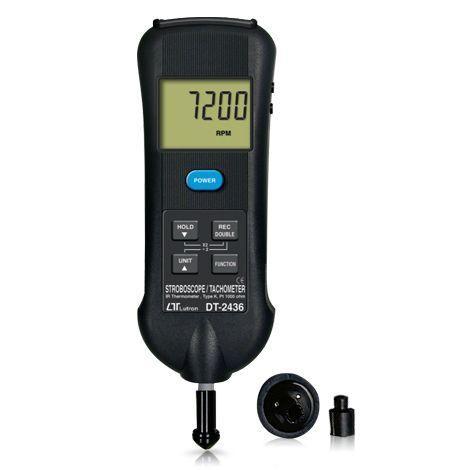

Lutron DT-2436 เครื่องวัดความเร็วรอบแบบ 6 in 1

DT-2436 ฟังก์ชั่นการวัด

เครื่องวัดความเร็วรอบแบบ 6 in 1

DT-2436 จุดเด่น

Multi-Function Capability: Combines the functions of a photo tachometer, contact tachometer, surface speed meter, stroboscope, and thermometer (Type K, Pt 1000 ohm, and IR) into one versatile instrument.

High Accuracy and Resolution: Offers high precision with ±0.05% accuracy and resolutions as fine as 0.1 RPM or 0.1 m/min, ensuring reliable measurements.

Large LCD Display: Features a large, high-contrast LCD display with easy readability, showing measurement values clearly and accurately.

Comprehensive Memory Function: Stores the last value, maximum value, and minimum value, which can be recalled by pressing the REC button.

Microprocessor Circuit: Ensures high accuracy and reliability with specialized functions.

Durable Design: Constructed with a strong, lightweight ABS plastic housing for long-lasting use.

User-Friendly Interface: Digital rotate knob and buttons for easy operation and precise setting adjustments.

DT-2436 ช่วงการวัด

Photo Tachometer:

Range: 0.5 to 99,999 RPM
Resolution: 0.5 RPM (<1,000 RPM), 1 RPM (≥1,000 RPM)
Accuracy: ±(0.05% + 1 digit)

Contact Tachometer:

Range: 0.5 to 19,999 RPM
Resolution: 0.5 RPM (<1,000 RPM), 1 RPM (≥1,000 RPM)
Accuracy: ±(0.05% + 1 digit)

Surface Speed:

Range: 0.05 to 1,999 m/min, 0.1 to 6,500 ft/min, 0.1 to 78,740 in/min
Resolution: 0.05 m/min, 0.1 ft/min, 0.1 in/min
Accuracy: ±(0.05% + 1 digit)

Stroboscope:

Range: 100 to 99,990 FPM
Resolution: 0.1 RPM (<1,000 RPM), 1 RPM (≥1,000 RPM)
Accuracy: ±(0.1% + 2 digits)

DT-2436 Power Supply

4 x UM3-AA 1.5V batteries

Optional AC to DC adapter

DT-2436 ขนาดสินค้า

Size: 207 x 67 x 45 mm

Weight: 240 g (0.53 lb)

DT-2436 อุปกรณ์ที่มาในชุด

Hard Carrying Case: 1 PC
Reflecting Tape Marks (600 mm): 1 PC
RPM Adapter (Cone): 1 PC
RPM Adapter (Funnel): 1 PC
Surface Speed Test Wheel: 1 PC
Instruction Manual: 1 PC

DT-2436 อุปกรณ์เสริม

AC to DC Adapter
USB Cable (USB-01)
RS232 Cable (UPCB-02)
Data Acquisition Software (SW-U801-WIN)
Excel Data Acquisition Software (SW-E802)
Type K Temp. Probe: TP-01, TP-02A, TP-03, TP-04, TP-05
Pt 1000 Temp. Probe: TP-1000

DT-2436 ข้อมูลจำเพาะ

Display

43 mm x 33 mm LCD, 5 digits.
5 digits with display unit.

Time base Quartz crystal.
Circuit Exclusive one-chip of microcomputer LSI circuit.
Operating Temperature 0 to 50 °C ( 32 to 122 °F )
Operating Humidity Max. 80% RH.

Power Consumption Approx. DC 42 mA

Memory Last/Max./Min. value.
