EUTECH EC-CON150 เครื่องวัดค่านำไฟฟ้าในน้ำ EC Meter

เครื่องวัดค่านำไฟฟ้าในน้ำ EC Meter

EC-CON150 จุดเด่น

Conductivity / Total Dissolved Solids / Temperature

Best value for an IP67-rated waterproof conductivity meter

Large, three line LCD – View conductivity or TDS measurement with temperature as well as cell efficiency

Built-in memory function – Stores up to 150 measurements along with temperature

Adjustable temperature coeffi cient – Set to 0.0 % to meet USP methods for non-compensated measurements

Power with AA batteries or use optional AC adapter
Calibrate using automatically recognized standards or manually; to a single point across all ranges or to multiple points (one calibration point per each conductivity range)

Calibration due alarm – Set a visible reminder when it is time to recalibrate the meter

Accepts probes with a 0.1, 1.0, or 10 cell constant

Adjustable conductivity-to-TDS conversion factor – From 0.4 to 1.0

Selectable manual or automatic temperature compensation (ATC) – For the highest accuracy in any situation

Selectable ºF/ºC – Choose units to best fit your application

Ready indicator, manual or automatic measurement hold feature and optional automatic shutoff function
Includes our easy to clean conductivity cell
Built-in stand – For easy benchtop or long-term use
Wall-mount option – Ideal to save bench space
Innovative Grip-Clip™ – Quickly and easily secures the probe to your beaker or container

ช่วงการวัด

Conductivity

Range 0 to 200 mS
Resolution 0.01 µS to 0.1 mS
Accuracy ±1 % full scale
Calibration Auto/manual; 1 point/range

TDS

Range 0 to 200 ppt (TDS factor 1.0)
Resolution 0.01 ppm to 0.1 ppt
Accuracy ±1 % full scale
Calibration Manual; 1 point/range

Temperature

Range -10.0 to 110.0 ºC (14.0 to 230.0 ºF)
Resolution 0.1 ºC/ºF
Accuracy ±0.5 ºC; ±0.9 ºF
Calibration Off set in 0.1 increments, ±10 ºC or ±18 ºF

Power Supply

Two AA batteries (included), >500 hours continuous use; AC adapter (optional)

ขนาดสินค้า

Meter: 7 7/8" x 3 1/8" x 2 1/4" (20 x 8.3 x 5.7 cm)
Boxed: 9 1/8" x 9 1/8" x 2 3/4" (23 x 23 x 7 cm)

Meter: 1 lb (0.5 kg)
Boxed: 1.4 lb (0.7 kg)

อุปกรณ์เสริม

Meter

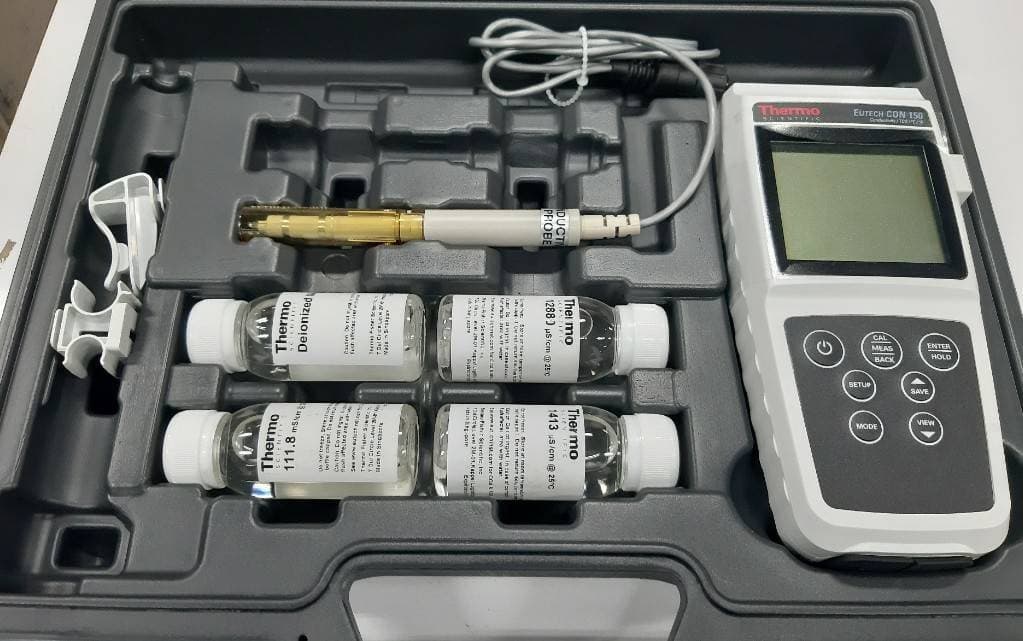

ECCONWP15003 CON 150 Meter & Electrode: Meter, conductivity cell (K = 1.0), Grip-Clip™, two AA batteries
ECCONWP15003K CON 150 Meter Kit: Meter, conductivity cell (K = 1.0), Grip-Clip™, two AA batteries, hard carry case, calibration solution

Electrodes

ECCONSEN72W Conductivity/ATC cell, glass, K = 0.1
CONSEN91W Conductivity/ATC cell, K = 1.0
CONSEN92W Conductivity/ATC cell, epoxy, K = 10.0

Accessories

GRIPCLIP Grip-Clip™
60X426401 Optional 100 / 240 VAC SMPS power adapter, 9 V, 6 W
ECCON84BT 84 μS conductivity standard, 480 mL
ECCON1413BT 1413 μS conductivity standard, 480 mL
ECCON1288BT 12.88 mS conductivity standard, 480 mL
ECCON1118BT 111.8 mS conductivity standard, 480 mL

ข้อมูลจำเพาะ

Display Three line custom LCD
Temperature Compensation Automatic or manual from -10 to 110 ºC
Temperature Coefficient 0.0 to 10.0 %/ºC
Memory Stores up to 150 data sets
