HORIBA

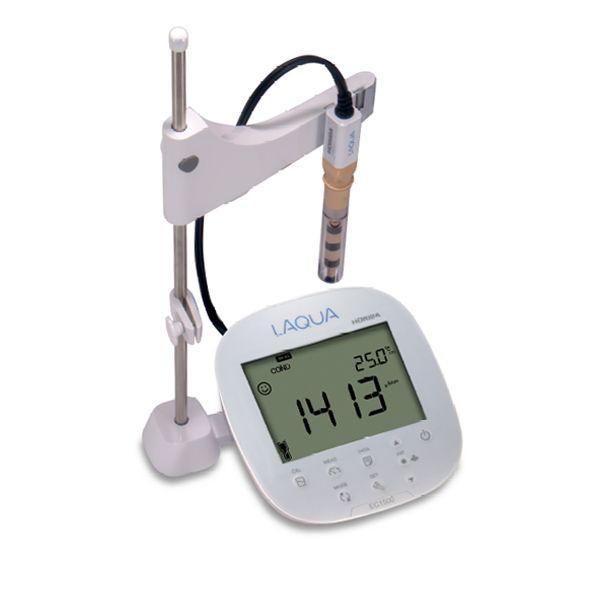

Horiba-EC1500-S เครื่องวัดค่าการนำไฟฟ้าแบบตั้งโต๊ะ

รหัสสินค้า

Horiba-EC1500-S

฿29,100.00(ไม่รวมภาษี)

ภาพรวม

ครื่องวัดคุณภาพน้ำ ตัวเครื่องเป็นแบบตั้งโต๊ะ รองรับการวัดค่า Conductivity, TDS, Resistivity, Salinity และ Temperature เหมาะสำหรับใช้งานในห้องทดลอง หรือห้องปฏิบัติการ ตัวเครื่องสอบเทียบได้สูงสุด 5 จุด (Manual) และ 4 จุด (Auto), Auto CAL. ที่ 84μS/cm, 1413μS/cm, 12.88mS/cm, และ 111.8mS/cm standards มีฟังก์ชั่นชดเชยอุณหภูมิอัตโนมัติ (ATC) ที่ช่วยลดข้อผิดพลาดและเพิ่มความแม่นยำในการวัดค่าจอ, แสดงผลเป็นแบบ LCD ขนาด 85×104 มม. สามารถบันทึกค่าได้สูงสุด 1000 ค่า พร้อมช่องสำหรับเชื่อมต่อสาย USB และ RS232C

เพิ่มคำถาม

Horiba-EC1500-S ฟังก์ชั่นการวัด

วัดคุณภาพน้ำ

Horiba-EC1500-S จุดเด่น

  • หน้าจอแสดงผลเป็นแบบ LCD
  • เชื่อมต่อสาย USB และ RS232C
  • อ่านค่าแม่นยำ  ในการวัดค่าหน้าจอ

Horiba-EC1500-S ช่วงการวัด

Conductivity

Range : 0.00 μS – 200.0 mS

Resolution : 0.01 / 0.1 / 1 μS ; 0.01 / 0.1 mS

Accuracy : ±0.6% full scale, ±1.5% full scale > 18.0 mS/cm


Resistivity

Range : 0.000 Ω•cm to 20.0 MΩ•cm
Resolution : 0.5% full scale
Accuracy : ±0.6% full scale, ±1.5% full scale > 1.80 MΩ•cm

Total Dissolved Solids (TDS)

Range : 0 ppm – 100 ppt
Resolution : 0.01 / 0.1 / 1 ppm ; 0.01 / 0.1 ppt
Accuracy : ±0.1% full scale

Salinity
Range : 0.0 to 100.0 ppt / 0.00 to 10.00 %
Resolution : 0.1 ppt / 0.01%
Accuracy : ±0.2% full scale


Temperature

Range : -30.0 to 130.0°C / -22.0 to 266.0°F
Resolution : 0. °C /°F
Accuracy : ±0.4 °C / ±0.9 °F

Horiba-EC1500-S เครื่องวัดค่าการนำไฟฟ้าแบบตั้งโต๊ะ

Horiba-EC1500-S ขนาดสินค้า

160 x 150 x 67 mm (meter)

410 x 260 x 230 mm (boxed)

Horiba-EC1500-S ข้อมูลจำเพาะ

Conductivity

Reference Temperature : 15.0 to 30.0 °C (adjustable)

Temperature Coefficient : 0.00 to 10.00 % per °C (adjustable)

Call Constants : 0.070 to 13.00 (adjustable)

Calibration points : Up to 4 (Auto) / Up to 5 (Manual)

Units : S/cm, S/m (Auto ranging)

Total Dissolved Solids (TDS)

TDS Curves : EN27888, 442, NaCl, Linear (0.40 to 1.00)

Salinity

Salinity Curves : NaCl / Seawater

Calibration points : 1 point

Temperature

Calibration points : 1 point ( ± 10.0 °C / ± 18.0 °F range in 0.1 °C increments)


Memory : 1000 data sets
Auto Data Logging : Yes – interval from 2 to 999 seconds
Measurement modes : Auto Stable / Auto Hold / Real Time
Offset & Slope display : Yes (Average slope)
Auto Shut-Off : Yes (programmable: 1 to 30 mins.)
Electrode status : On screen display
PC / Printer Communication : Phono jack (USB / RS232)

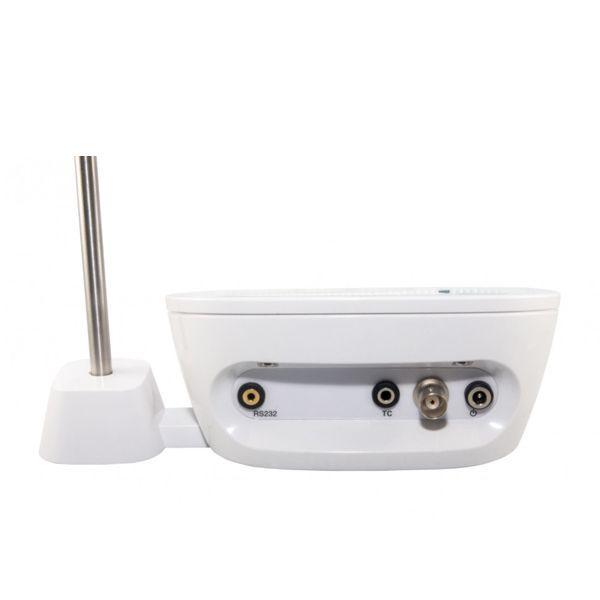

Meter Input : 1 x BNC, 1 x phono (ATC)

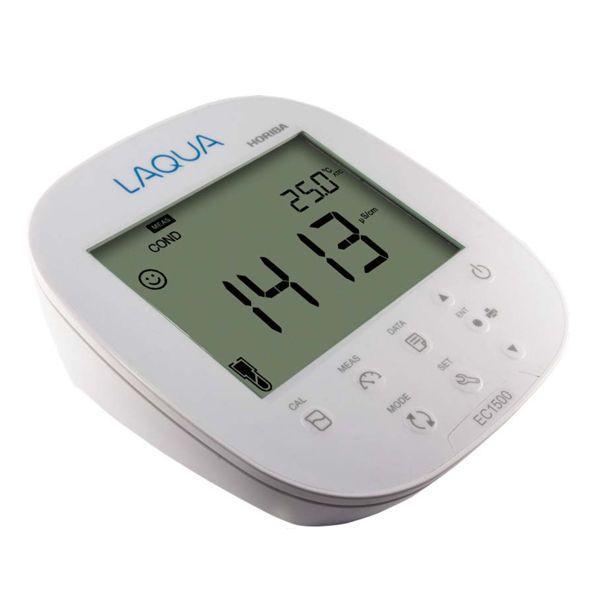

Display : Large monochrome 160 segment LCD, 85 x 104 mm
Electrode Stand : Integrated
Power Requirement : AC adaptor, 100-240V, 50-60Hz
Dimensions : 160 x 150 x 67 mm (meter) / 410 x 260 x 230 mm (boxed)
Weight Meter / Boxed : 720g / 3700g
