MITC-39D4W-F-1_5M-TU-M-X750 โพรบขนาด 3.9mm ยาว 1.5m ปรับทิศทางได้ 360 องศา สำหรับกล้องส่องท่อรุ่น X750

MITC-39D4W-F-1_5M-TU-M-X750 | ขนาดและความความยาวของหัวโพรบ

Probe head diameter: 3.9 mm (O.D. Tolerance: ±0.15 mm)
Probe head length: 13 mm

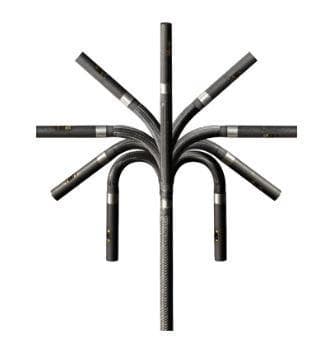

MITC-39D4W-F-1_5M-TU-M-X750 | ทิศทางของโพรบ

Front view
Articulation angle: 360° Articulation

Probes full ways ≥140°

MITC-39D4W-F-1_5M-TU-M-X750 | ความยาวโพรบ

1.5 m

MITC-39D4W-F-1_5M-TU-M-X750 | ความละเอียด

Still image resolution (.jpg): 1600*1600
Video resolution (.mov): 1600*1600

MITC-39D4W-F-1_5M-TU-M-X750 | อุณหภูมิที่สามารถใช้งานได้

In air: -10~-100°C ; In water: 10~30°C

MITC-39D4W-F-1_5M-TU-M-X750 | ความทนทานต่อเหลว

Operable when exposed to machine oil, light oil, or 5% saline solution

MITC-39D4W-F-1_5M-TU-M-X750 | ข้อมูลจำเพาะ

Probe head diameter: 3.9 mm (O.D. Tolerance: ±0.15 mm)
Probe head length: 13 mm
Direction of view: Front
Illumination: Front LED
Field of view (FOV): 120°
Depth of Field (DOF): 5 mm~100 mm
Still image resolution (.jpg): 1600*1600
Video resolution (.mov): 1600*1600
Articulation angle:  full ways ≥140° (The maximum articulation angle may degrade over time)
Probe length: 1.5 m
Operating temperature: In air: -10~-100°C ; In water: 10~30°C
Probe head material: Stainless Steel
Probe material: Tungsten braid
Joystick console dimensions: (WxDxH) 139.4x193x84.2 mm (w/o SR and insert tubes)
Joystick console buttons: Brightness+, Brightness-, snapshot/record
Lock and move: Joystick/Unlock switch on console
Dust and water proof: Joystick console: IP54 ; Insert Tube: under water 1 m for 30 minutes
Relative humidity: Max 95% non-condensing
Liquid resistance: Operable when exposed to machine oil, light oil or 5% saline solution
Storage temperature: -10°C~70°C
Rigid sleeve: OD: 5 mm/ID: 5 mm Protection: OD: 8 mm Extension joint ring: OD: 8. mm
Trolley case: Grip material: Rubber/Aluminum/Plastic; Tube material: Stainless steel, HDPE EVA with storage reel
