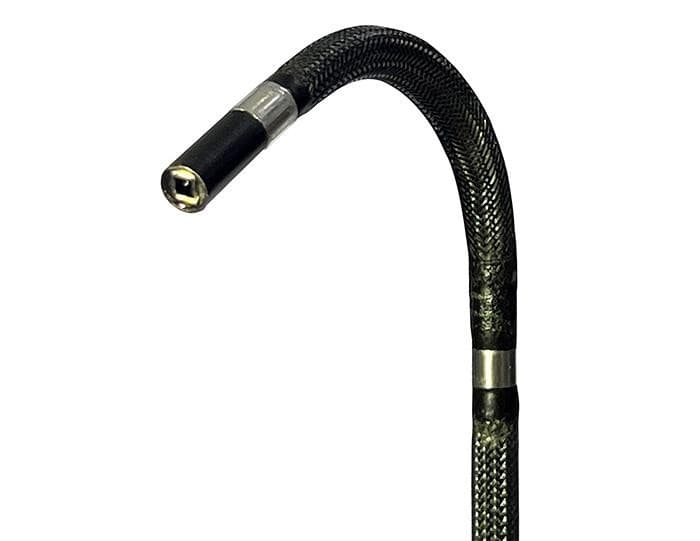

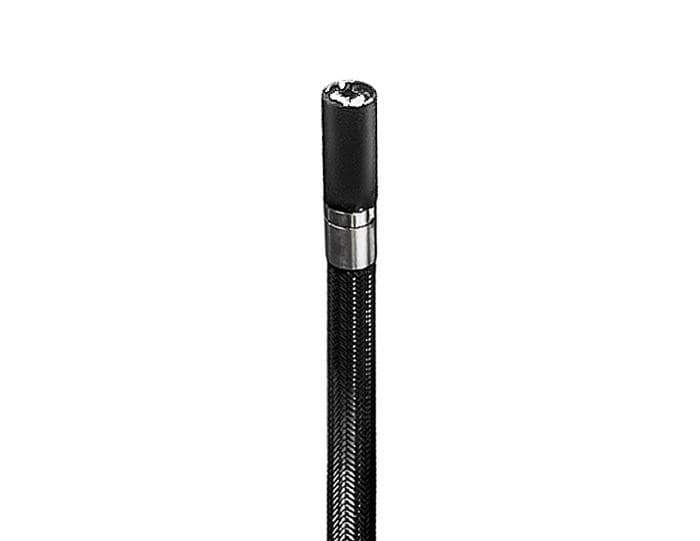

Mitcorp MITC-28D4W-F-1_5M-TU-M โพรบขนาด 2.8mm ยาว 1.5m ปรับทิศทางได้ 360 องศา สำหรับกล้องส่องท่อรุ่น X2000

ขนาดและความความยาวของหัวโพรบ

• Probe head diameter: 2.8 mm (O.D. Tolerance: ±0.1 mm)

• Probe head length: 10.1 mm

ทิศทางของโพรบ

Front

Articulation angle: 360° Articulation Probes full ways ≥110°

ความยาวโพรบ

1.5 m

ความละเอียด

Still image resolution (.jpg): 800*800

Video resolution (.mov): 800*800

อุณหภูมิที่สามารถใช้งานได้

In air: -10~-100°C ; In water: 10~30°C

ความทนทานต่อเหลว

Operable when exposed to machine oil, light oil, or 5% saline solution

ข้อมูลจำเพาะ

• Probe head diameter: 2.8 mm (O.D. Tolerance: ±0.1 mm)

• Probe head length: 10.1 mm

• Direction of view: Front

• Illumination: Front LED

• Field of view (FOV): 110°

• Depth of Field (DOF): 5 mm~100 mm

• Still image resolution (.jpg): 1600*1600

• Video resolution (.mov): 1600*1600

• Articulation angle: full ways ≥120° (The maximum articulation angle may degrade over time)

• Probe length: 1.5 m

• Operating temperature: In air: -10~-100°C ; In water: 10~30°C

• Probe head material: Stainless Steel

• Probe material: Tungsten braid

• Joystick console dimensions: (WxDxH) 139.4x193x84.2 mm (w/o SR and insert tubes)

• Joystick console buttons: Brightness+, Brightness-, snapshot/record

• Lock and move: Joystick/Unlock switch on console

• Dust and water proof: Joystick console: IP54 ; Insert Tube: under water 1 m for 30 minutes

• Relative humidity: Max 95% non-condensing

• Liquid resistance: Operable when exposed to machine oil, light oil or 5% saline solution

• Storage temperature: -10°C~70°C

• Rigid sleeve: OD: 8 mm/ID: 7 mm Protection: OD: 10 mm Extension joint ring: OD: 11.2 mm

• Trolley case: Grip material: Rubber/Aluminum/Plastic; Tube material: Stainless steel, HDPE EVA with storage reel
