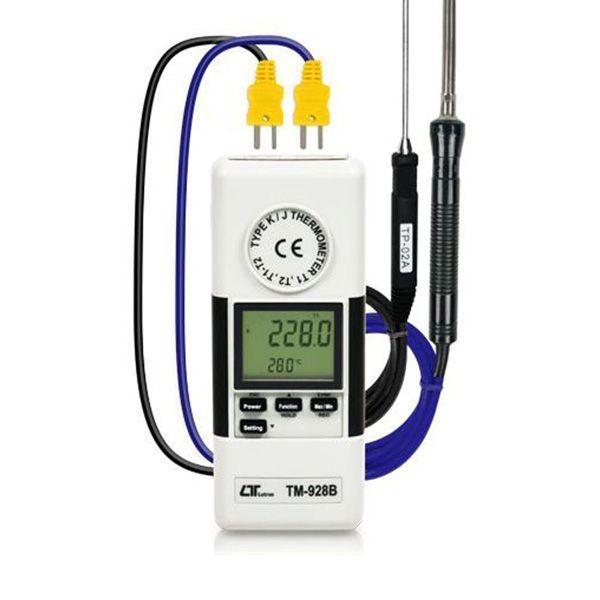

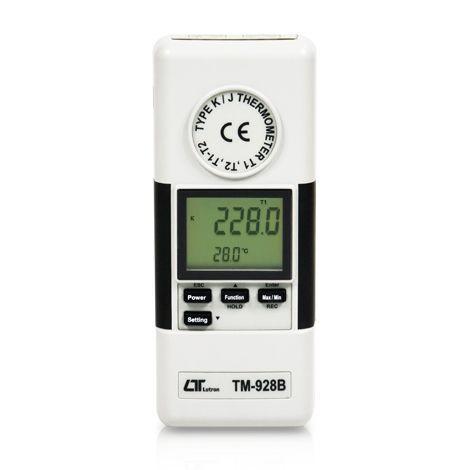

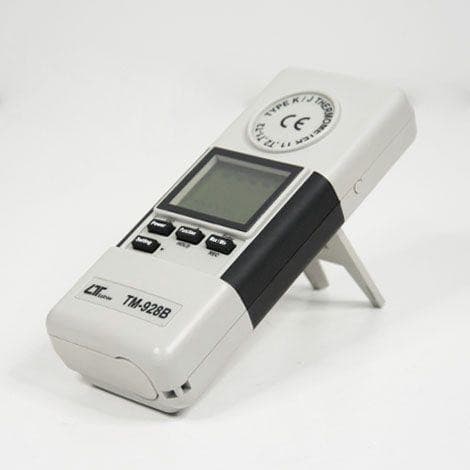

Lutron TM-928B เครื่องวัดอุณหภูมิ 2 ช่องโพรบ

รหัสสินค้า

TM-928B

฿4,600.00(ไม่รวมภาษี)

จำนวน

สินค้าใกล้หมดแล้ว

ภาพรวม

เครื่องวัดอุณหภุมิfดิจิตอล ช่วงการวัดที่ตัวเครื่องรองรับ -100 ถึง 1300℃ (ขึ้นอยู่กับ Sensor) รองรับช่องสำหรับโพรบ Thermocouple Type K,J จำนวน 2 ช่อง ฟังก์ชั่น T1,T2,T1-T2 ในชุดไม่รวมโพรบวัดอุณหภูมิ (แยกจำหน่าย)

เพิ่มคำถาม

TM-928B | ฟังก์ชั่นการวัด

วัดอุณหภูมิ : อุณหภูมิของเหลว, อุณหภูมิจุดกึ่งกลาง, อุณหภูมิพื้นผิว, อุณหภูมิอากาศ

TM-928B | จุดเด่น

ช่องสำหรับโพรบ Thermocouple Type K,J จำนวน 2 ช่อง

TM-928B | ช่วงการวัด

ช่วงการวัดอุณหภูมิ Type

  • Type K : -100 ถึง 1300°C
  • Type J : -100 ถึง 1200°C
    **(ช่วงการวัดขึ้นอยู่กับโพรบแต่ละรุ่น)

Resolution

  • 0.1°C

Accuracy

  • ± (0.4% + 0.8°C) ( -50.0 to 1300°C)
  • ± (0.4% + 1°C) ( -50.1 to -100°C)

TM-928B | Power Supply

Battery 9V

TM-928B | ขนาดสินค้า

ขนาดตัวเครื่อง 175x70x39 mm (216g)

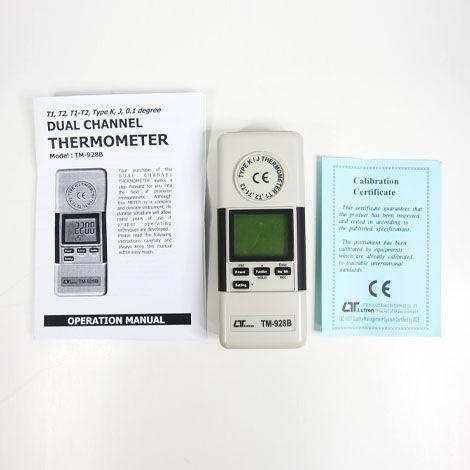

TM-928B | อุปกรณ์ที่มาในชุด

Lutron TM-928B เครื่องวัดอุณหภูมิ 2 ช่องโพรบ  X1

TM-928B | ข้อมูลจำเพาะ

Circuit : Custom one-chip of microprocessor LSI circuit.

Display : 40 mm x 32 mm LCD (Liquid crystal display).

Display Unit : ℃, ℉.

Resolution : 0.1 ℃, 0.1 ℉.

Measurement Channels : T1, T2, T1-T2, T1 only.

Temperature Compensation : Automatic temp. compensation for the cold junction both type K/J thermometer

Linear Compensation  : Linear Compensation for the full range.

Offset, Span Adjustment : Available for advanced calibration procedure.

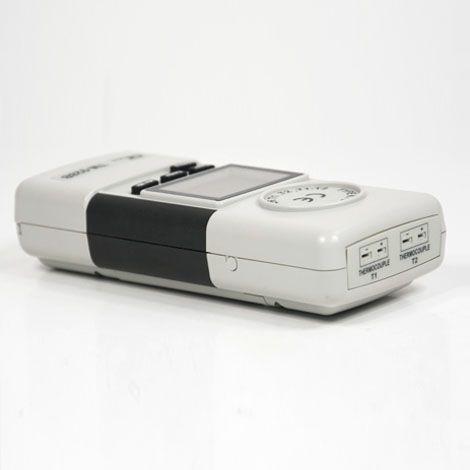

Probe Input Socket : Standard 2 pin thermocouple socket.

Over Indication : Show "            ".

Data Hold : Freeze the display reading.

Memory Recall : Maximum and Minimum reading values can be saved and retrieved by record function.

Power off : Auto shut off saves battery life or manual  off by push button

Operating Temperature : 0 ℃ to 50 ℃(32 ℉ to 122 ℉).

Operating Humidity : Max. 80% RH.

Sampling Time : Approx. 1 second.

Sampling Time : Approx. 1 second.

Power Supply  : DC 9V battery, 006P, MN1604 ( PP3 ) or equivalent. Alkaline or heavy duty type.
