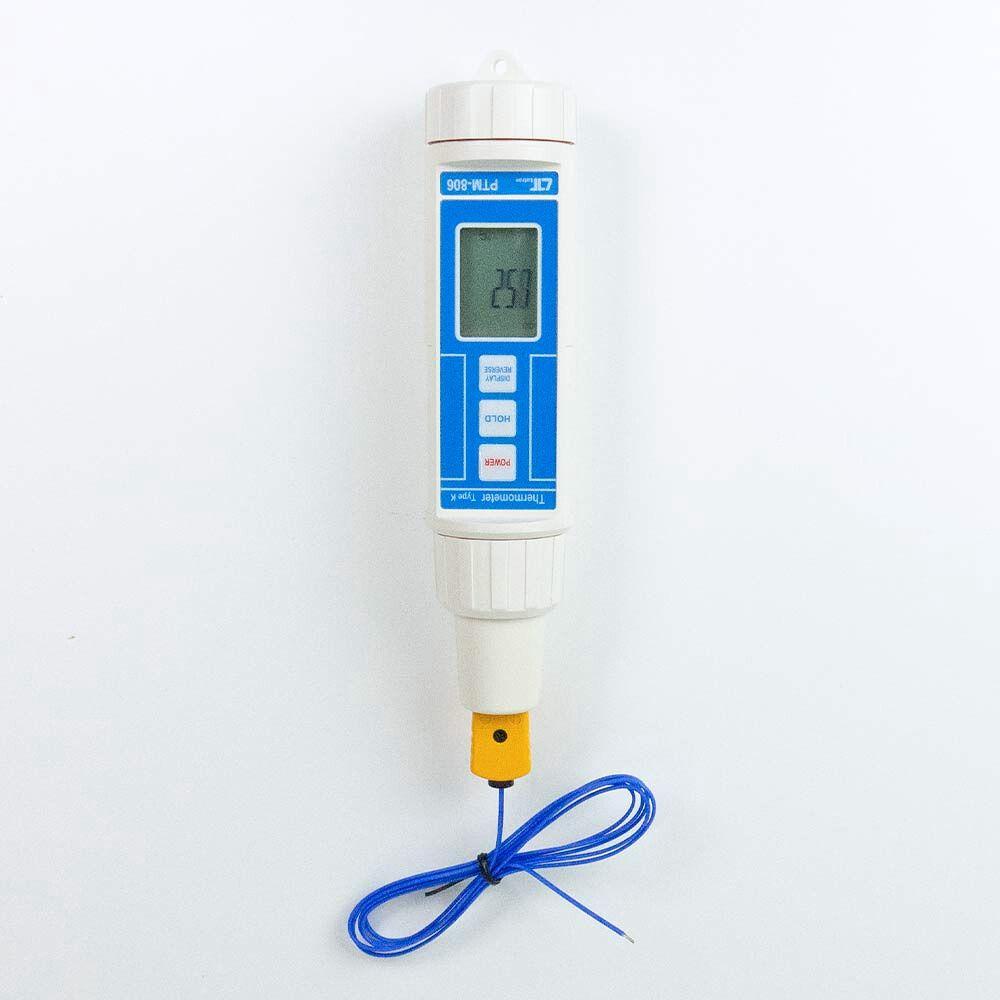

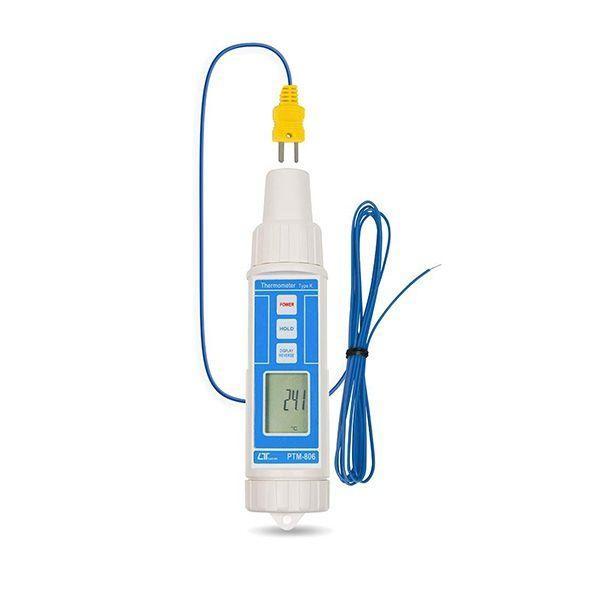

Lutron PTM-806 เครื่องวัดอุณหภูมิดิจิตอล 1ช่อง | Max.1300°C
PTM-806
฿2,700.00(ไม่รวมภาษี)
จำนวน
สินค้าในคลัง15
เครื่องวัดอุณหภูมิแบบแยกโพรบ 1 ช่องโพรบ ช่วงการวัดอุณหภูมิ -100 to 1300℃ (ขึ้นอยู่กับโพรบ) ใช้งานร่วมกับโพรบ Thermocouple Type K มีฟังก์ชั่น Data hold และปิดเครื่องอัตโนมัติเมื่อไม่ใช้งาน ยี่ห้อ Lutron
เครื่องวัดอุณหภูมิดิจิตอล 1ช่อง
ช่วงการวัดกว้าง รองรับการเชื่อมต่อกับ Thermocouple Type K
ความละเอียดสูง 0.1° แสดงผลได้ทั้ง °C และ °F
พอร์ตเชื่อมต่อ Thermocouple Type K มาตรฐาน ใช้งานง่าย
โหมดแสดงผล 2 แบบ : แบบปกติ และกลับด้าน (Reverse) เพื่อความสะดวกในการอ่านค่า
เซนเซอร์แยกจากตัวเครื่อง รองรับการใช้งานที่หลากหลายมากขึ้น
ฟังก์ชัน Data Hold ค้างค่าหน้าจอได้ทันที
หน้าจอ LCD ขนาดใหญ่ แสดงผลได้ชัดเจน
วงจร Microcomputer ให้ผลการวัดที่มีความแม่นยำสูง

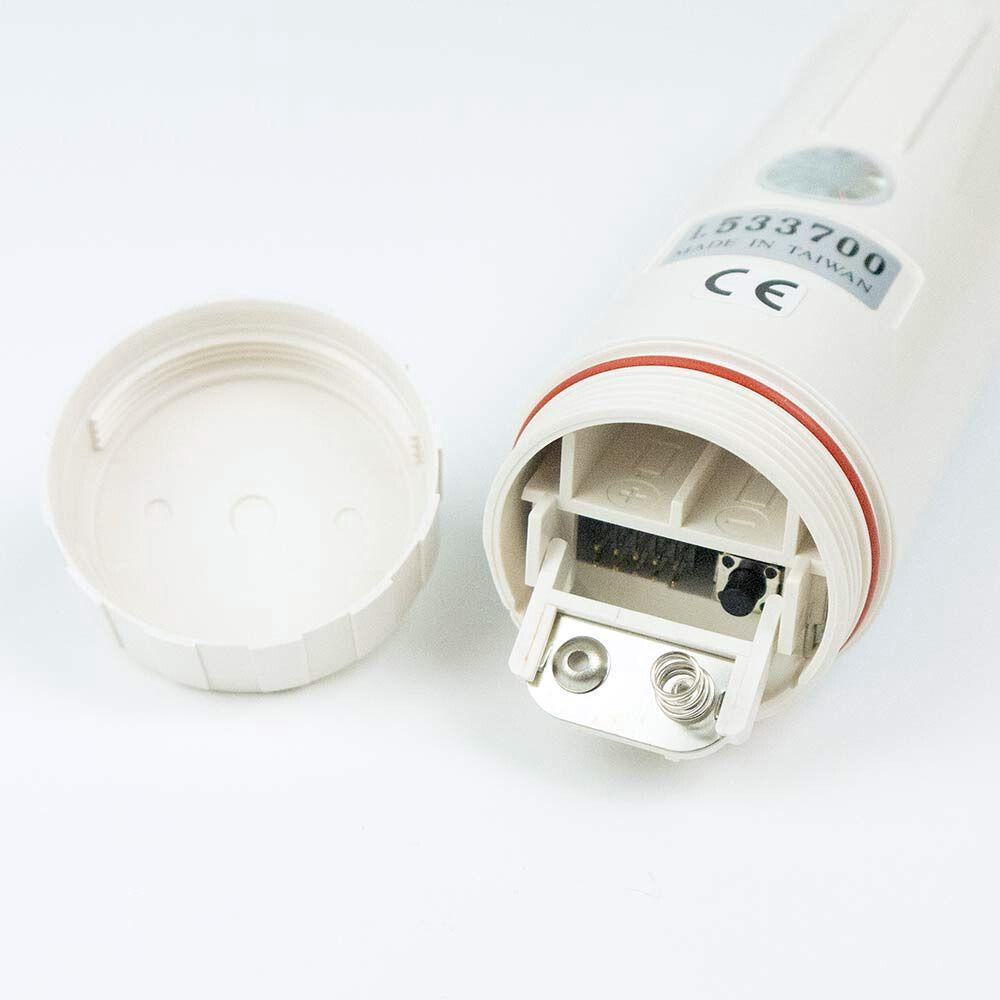

ใช้แบตเตอรี่ 1.5V AAA x4 ก้อน (ทางเลกะแถมให้ฟรี)
ตัวเครื่องผลิตจาก ABS-Plastic แข็งแรง ทนทาน น้ำหนักเบา เหมาะกับการใช้งานต่อเนื่อง




ช่วงการวัด
Range -100 to 1300℃ (ขึ้นอยู่กับโพรบ)
Resolution : 0.1℃
Accuracy : ±0.4% + 0.8℃ (at -50.0 to 1300℃), ±0.4% + 1℃ (at -50.1 to -100℃)
Power Supply
Battery AAA x 4
ขนาดเครื่อง
Dimension : 175 x 40 x 40 mm
Weight : 156 g
อุปกรณ์ที่มาในชุด
Main unit × 1
Thermocouple Type K Probe TP-01 × 1
Instruction manual × 1
Calibration Certificate (from manufacture) × 1
Battery AAA (ทางเลกะแถมให้ฟรี) × 4
อุปกรณ์เสริม
Soft Carrying Case (CA-52A)
Calibration for PTM-806, PTM-816 (PTM-CAL-TOOL)
ข้อมูลจำเพาะ
Display | LCD, size: 28 x 19 mm |
Temp. unit | °C or °F with default |
Circuit | Custom one-chip of microprocessor LSI circuit |
Temp. Sensor | Thermocouple Type K |
Temperature Compensation | Automatic temp. compensation for the cold junction |
Linear Compensation | Linear Compensation for the full range |

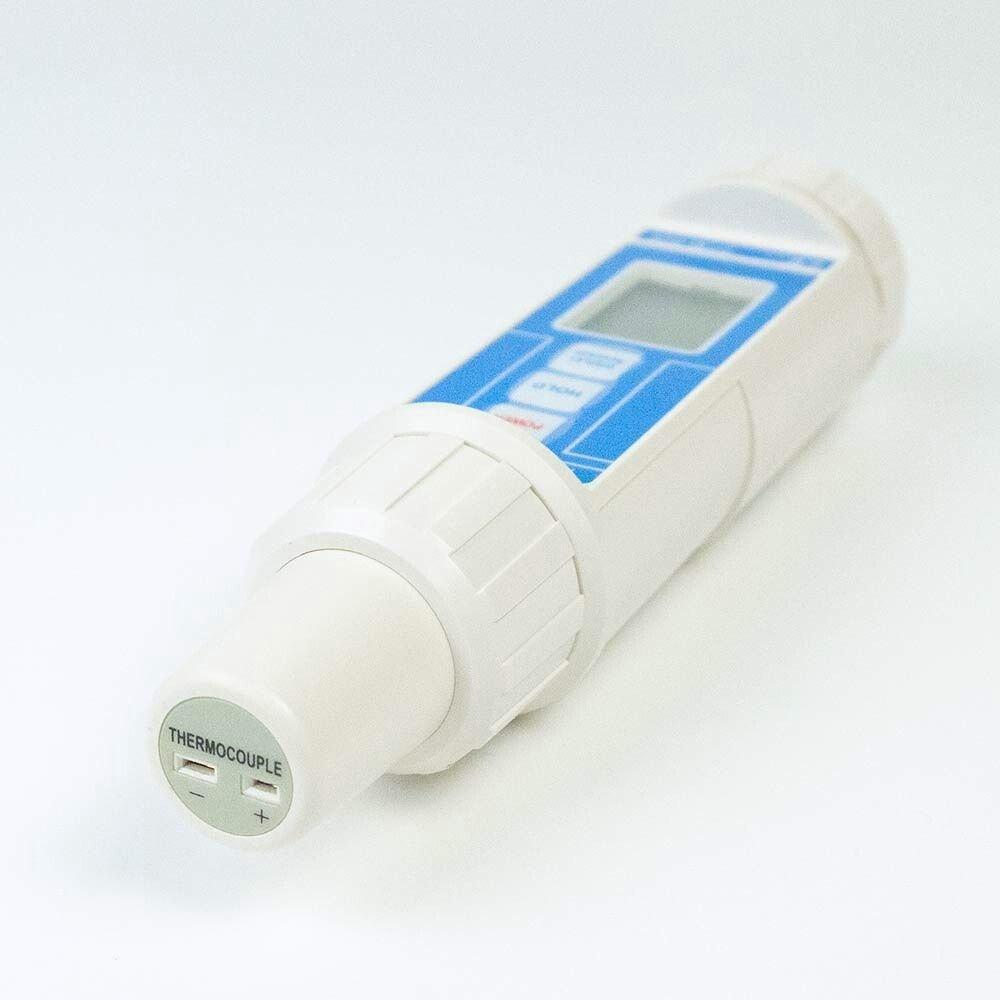

Probe Input Socket | Standard 2 pin thermocouple socket |
Data Hold | Freeze the display reading |
Over Indication | Show " - - - - - " |
Sampling time | Approx. 1 second |
Operating Temp. | 0 to 50°C (Meter only) |
Operating Humidity | Less than 80% R.H. (Meter only) |
Power Supply | DC 1.5V Battery AAA x 4 |
Power Current | Approx. DC 6.5 mA |
Weight | 156 g (Battery is included) |
Dimension | 175 x 40 x 40 mm |
