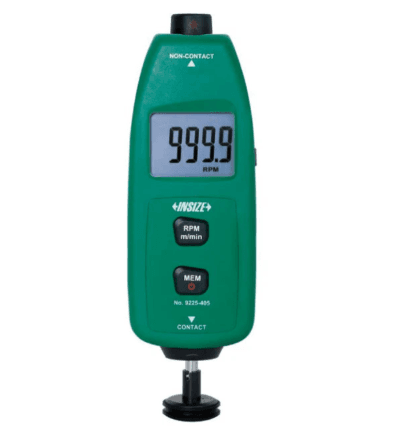

INSIZE IN-9225-405 ความเร็วรอบ TACHOMETER

Measuring range

rotary speed

2.5~99999RPM

0.5~19999RPM

line speed

-

0.05~500m/min

Resolution

rotary speed

0.1RPM (range 2.5~999.9RPM)

1RPM (range 1000~99999RPM)

0.1RPM (range 0.5~999.9RPM)

1RPM (range 1000~19999RPM)

line speed

-

0.01m/min (range 0.05~99.99m/min)

0.1m/min (range 100~500m/min)

Accuracy

rotary speed

土(0.05%n+1d)RPM

n is rotary speed, d is resolution

+(0.4%n+1d)RPM (n<300RPM)

土(0.05%n+1d)RPM(n2300RPM)

n is rotary speed, d is resolution

line speed

-

+(1%+1d)m/min dis resolution

Laser power

class 3R, 3mW~4mW

-

Sampling time

0.6s (above 100RPM)

Measuring distance

50~500mm

-

Operation temperature

0~40*C

Power supply

3xAA batteries

Dimension

206x71x36mm

Weight

170g

Reflection sticker (9220-RS)

3 pcs

Wheel with 0.1m

perimeter

1 pc

Clamping sleeve

1 pc

Cone head

1 pc

Small cone head

1 pc

Cone cavity head

1 pc

Battery (AA

3 pcs
