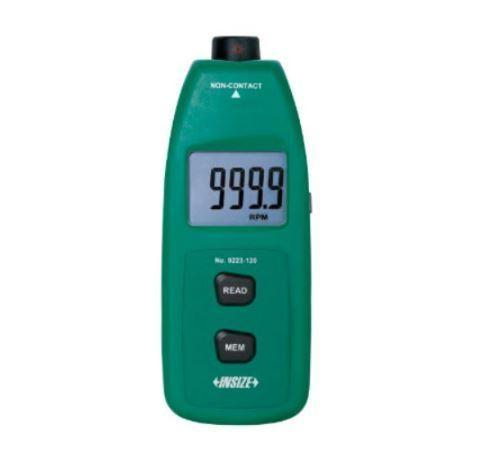

INSIZE IN-9223-120 Non-Contact Tachometer วัดความเร็วรอบแบบไม่สัมผัส
Insize

INSIZE IN-9223-120 Non-Contact Tachometer วัดความเร็วรอบแบบไม่สัมผัส

รหัสสินค้า

IN-9223-120

ภาพรวม

Accurately measure the rotary speed without contact, automatically save the maximum value, minimum value and the last value, 500 data can be stored during continuous measurement

เพิ่มคำถาม

IN-9223-120 ฟังก์ชั่นการวัด

วัดความเร็วรอบแบบไม่สัมผัส

IN-9223-120 ช่วงการวัด

Measuring range: 2.5~99999 RPM
Resolution: 0.1 RPM (range 2.5~999.9 RPM), 1 RPM (range 1000~99999 RPM)
Accuracy: ± (0.05%n+1d) RPM, n is rotary speed, d is resolution

IN-9223-120 Power Supply

Power supply: 3ˣAA batteries

IN-9223-120 ขนาดสินค้า

Dimension: 180ˣ71ˣ29.9 mm
Weight: 145 g

IN-9223-120 อุปกรณ์ที่มาในชุด

Main unit: 1 pc
Reflection sticker: 3 pcs
Battery (AA): 3 pcs

IN-9223-120 ข้อมูลจำเพาะ

Laser power: CLASS 3R, 3mW~4mW
Sampling time: 0.6 second (above 100 RPM)
Measuring distance: 50~500 mm
Operation temperature: 0~40°C
