TND RTR500BM Mobile Base Station ถูกออกแบบมาเพื่อใช้งานร่วมกับเครือข่ายเซลลูลาร์ 4G ในกรณีที่ไม่มีพีซีหรือเครือข่าย LAN หรือไม่สามารถใช้งานได้อย่างสะดวก โดยอุปกรณ์จะทำหน้าที่รวบรวมข้อมูลจากเครื่องบันทึกข้อมูล (Data Logger) ที่อยู่ใกล้ ๆ ผ่านการสื่อสารแบบไร้สาย รองรับ nanoSIM ที่ใช้กับเครือข่าย 4G (LTE) (ต้องซื้อซิมการ์ดแยกต่างหาก) ส่งข้อมูลอัตโนมัติผ่าน HTTPS ไปยังคลาวด์ “T&D WebStorage Service”

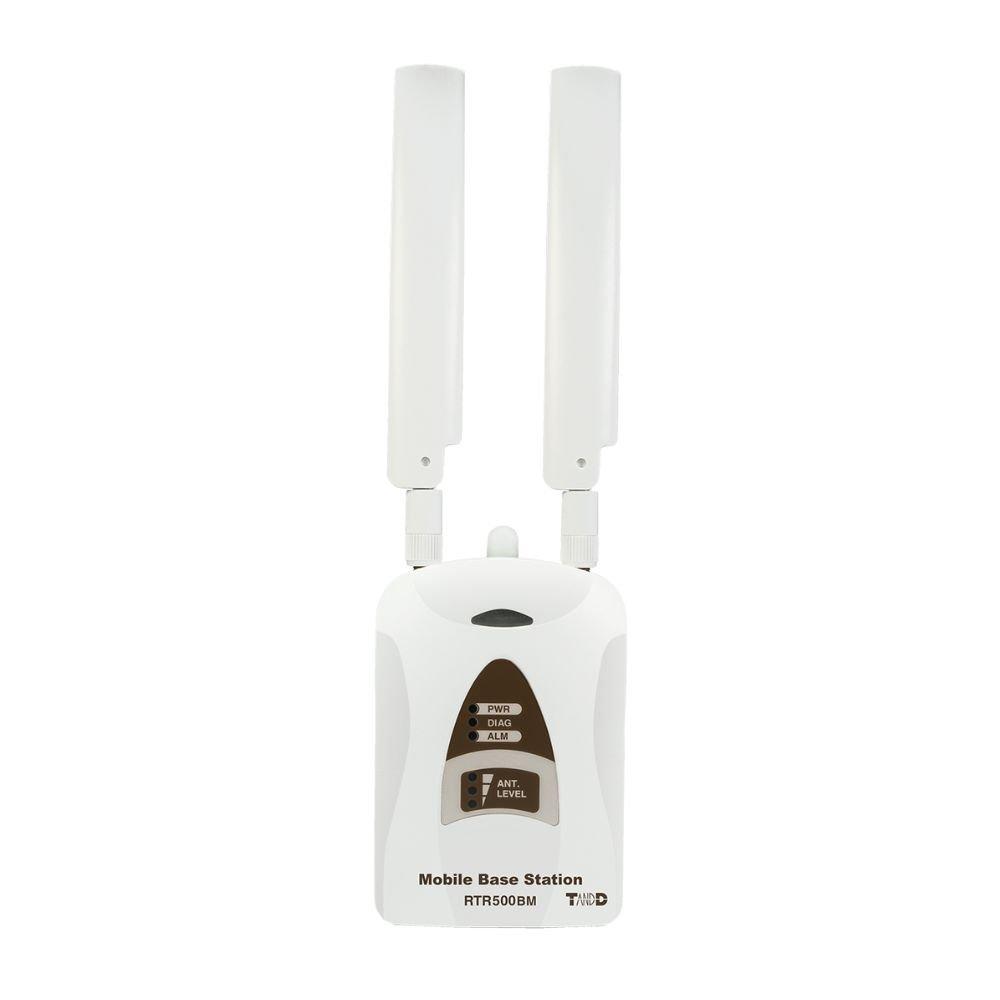

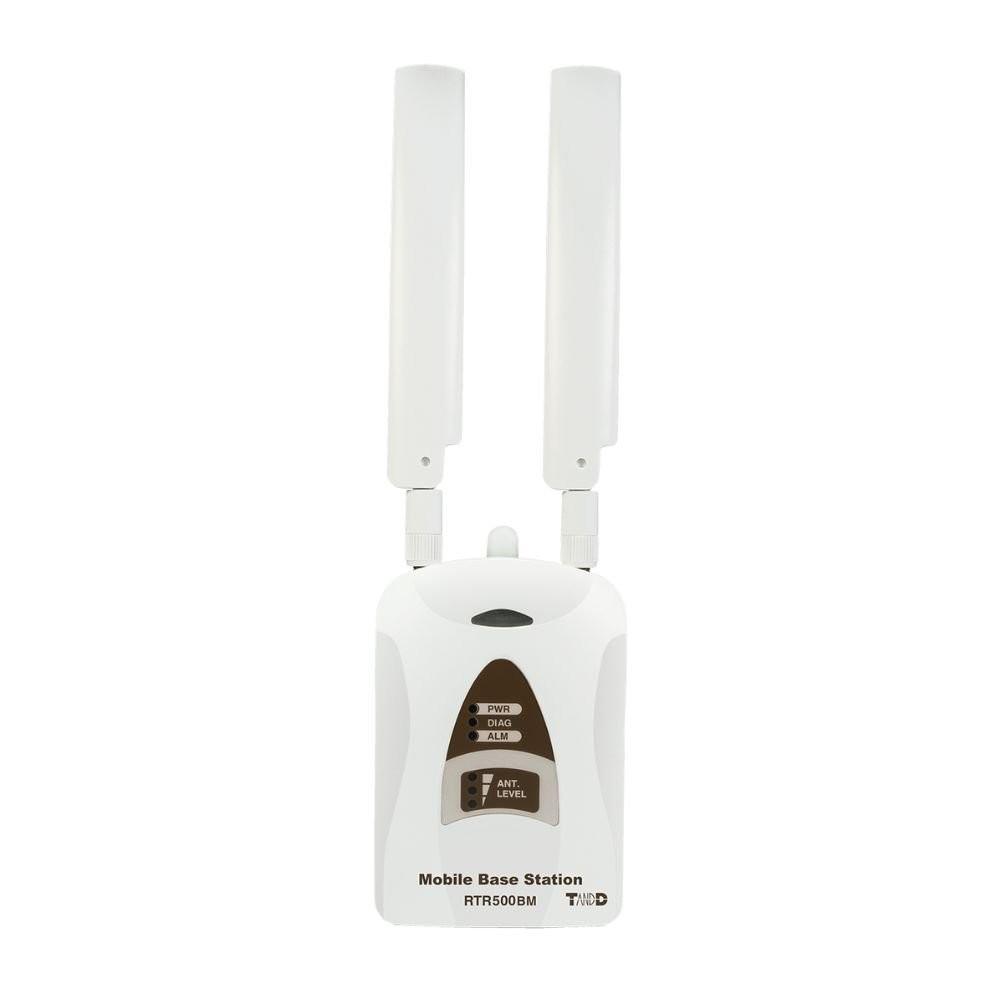

Mobile Base Station
ถูกออกแบบมาเพื่อใช้งานร่วมกับเครือข่ายเซลลูลาร์ 4G ในกรณีที่ไม่มีพีซีหรือเครือข่าย LAN หรือไม่สามารถใช้งานได้อย่างสะดวก โดยอุปกรณ์จะทำหน้าที่รวบรวมข้อมูลจากเครื่องบันทึกข้อมูล (Data Logger) ที่อยู่ใกล้ ๆ ผ่านการสื่อสารแบบไร้สาย
จุดเด่น
รองรับ nanoSIM ที่ใช้กับเครือข่าย 4G (LTE) (ต้องซื้อซิมการ์ดแยกต่างหาก)

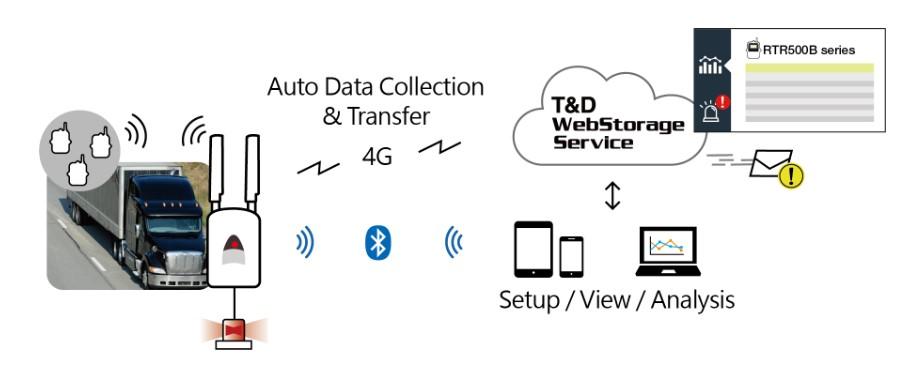

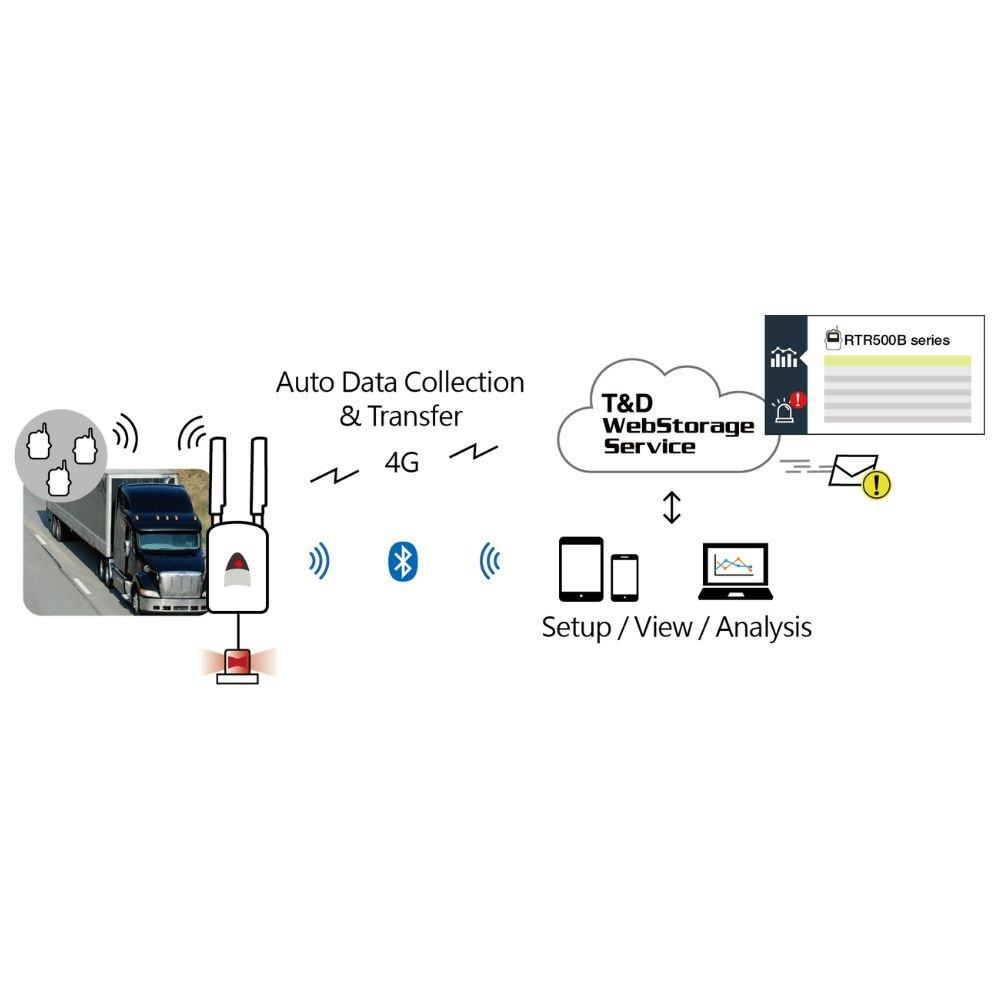

ส่งข้อมูลอัตโนมัติผ่าน HTTPS ไปยังคลาวด์ “T&D WebStorage Service”

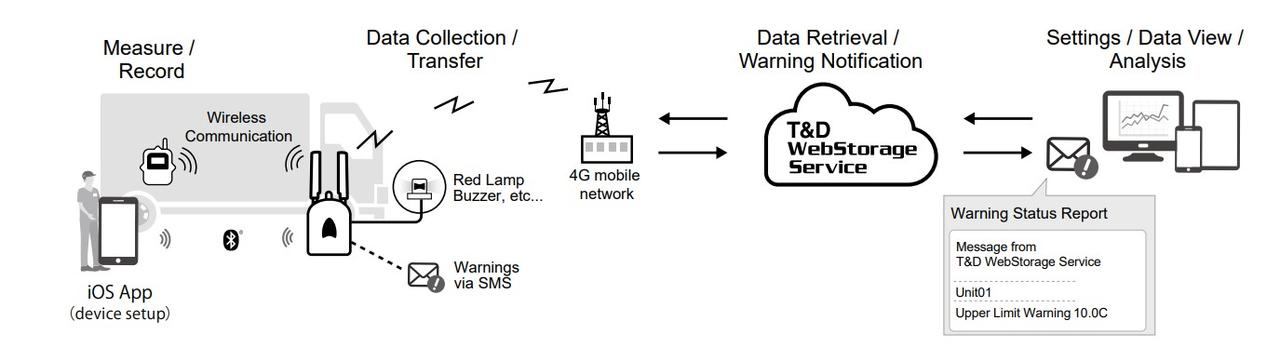

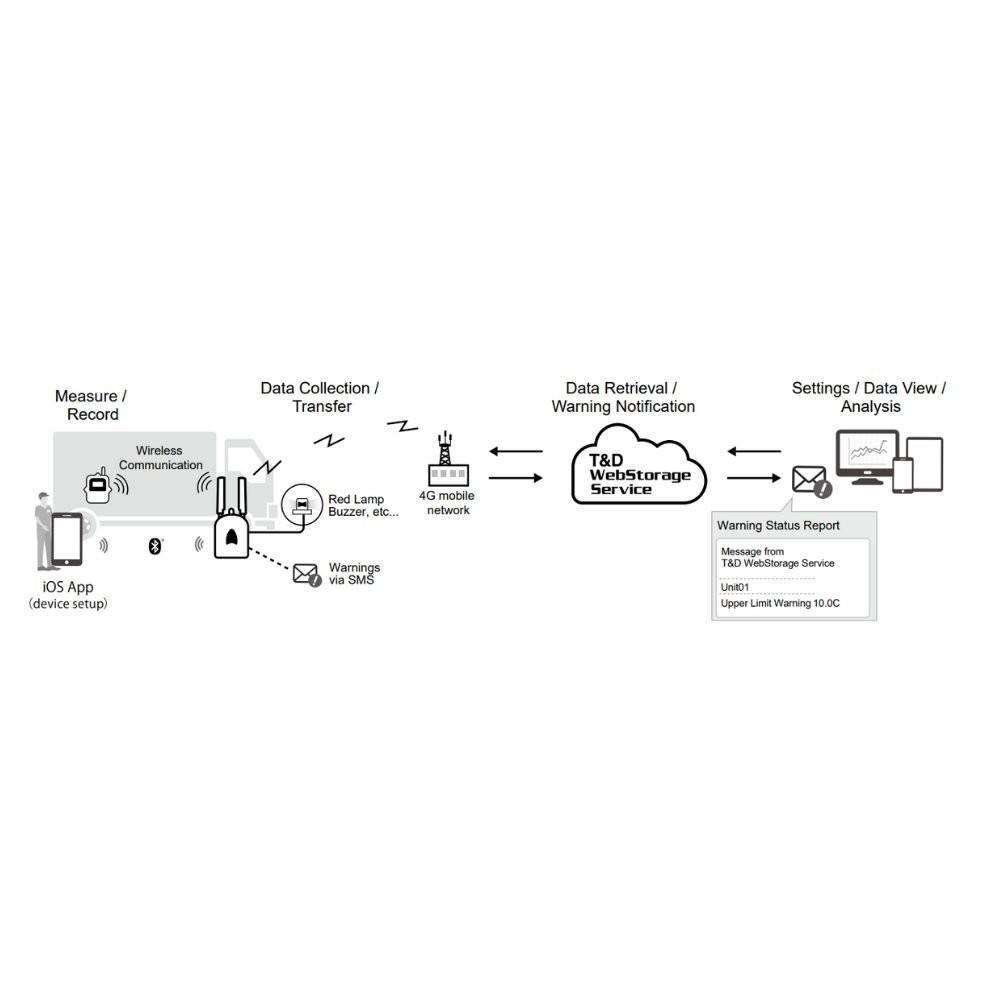

ฟังก์ชันตรวจสอบแจ้งเตือน : ค่าวัดเกินหรือต่ำกว่าขอบเขตที่กำหนด, เซนเซอร์ขัดข้อง, แบตเตอรี่อ่อน, การสื่อสารไร้สายมีปัญหา, การทำงานของขั้วต่อสัญญาณภายนอก (Contact Output)
สามารถตั้งค่าอุปกรณ์เริ่มต้นได้ทั้ง Bluetooth® หรือผ่านคอมพิวเตอร์โดยใช้ USB
สามารถตั้งค่าอุปกรณ์จากระยะไกลผ่านแอปพลิเคชันมือถือ เช่น ตั้งชื่ออุปกรณ์, ตั้งช่วงเวลาในการบันทึก, เงื่อนไขการแจ้งเตือน, และลงทะเบียนอุปกรณ์เพิ่มเติมได้ผ่านระบบคลาวด์
การแจ้งเตือนหลายรูปแบบผ่านอีเมล และ SMS
สามารถจัดการ Logger ได้สูงสุด 20 ตัว

ช่วงการวัด
Short Range Wireless Communication
US Model
Frequency Range: 902 to 928 MHz
RF Power: 7 mW
Transmission Range: About 150 meters (500 ft) if unobstructed and direct
EU Model
Frequency Range: 869.7 to 870 MHz
RF Power: 5 mW
Transmission Range: About 150 meters if unobstructed and direct
LTE Communication
US Model
LTE-FDD: B2/B4/B12
WCDMA: B2/B5
EU Model
LTE-FDD: B1/B3/B5/B7/B8/B20
LTE-TDD: B38/B40/B41
WCDMA: B1/B5/B8
GSM: 900/1800MHz
Power Supply
AA Alkaline Battery LR6 x 4
AC Adaptor (AD-05A3 or AD-05C1)
External Battery (DC 9-38V) with the Connection Adaptor (BC-0204)
ขนาดเครื่อง
Dimensions : 96 x 66 x 38.6 mm (excluding antenna)
Antenna Length (Cellular/Local) : 135 mm
Weight : 135 g
อุปกรณ์ที่มาในชุด
AA Alkaline Battery LR6 x 4
Antenna CSR-0011 x2 (Cellular/Local)
USB Mini-B Cable US-15C
AC Adaptor AD-05A3 or AD-05C1
Registration Code Label
Manual Set (Warranty Included)

ข้อมูลจำเพาะ
Specifications | |
---|---|
Compatible Devices | Remote Units RTR500B Series (RTR501B / 502B / 503B / 505B / 507B) Including L Type RTR-500 Series (RTR-574 /576) Including S Type (*1) Repeaters : RTR500BC |
Maximum Number of Registrations | Remote Units : 20 units Repeaters : 5 units x 4 groups |
Communication Interfaces | Short Range Wireless Communication US Model
EU Model
LTE Communication US Model
EU Model
|
Communication Time | Data Download Time (for 16,000 readings) Via wireless communication: Approx. 2 min. An additional 30 seconds should be added for each Repeater. Does not include communication time from Base Unit to server over LTE. |
External Alarm Input/Output Terminal | Input Terminal: Contact Input
Output Terminal: Photo Mos Relay Output
|
Communications Protocol | HTTP, HTTPS, FTP, SNTP, SMS, DNS |
Operating Environment |
|
