TND TR32B เครื่องบันทึกอุณหภูมิและความชื้น Bluetooth Temperature & Humidity Data Logger
TR32B

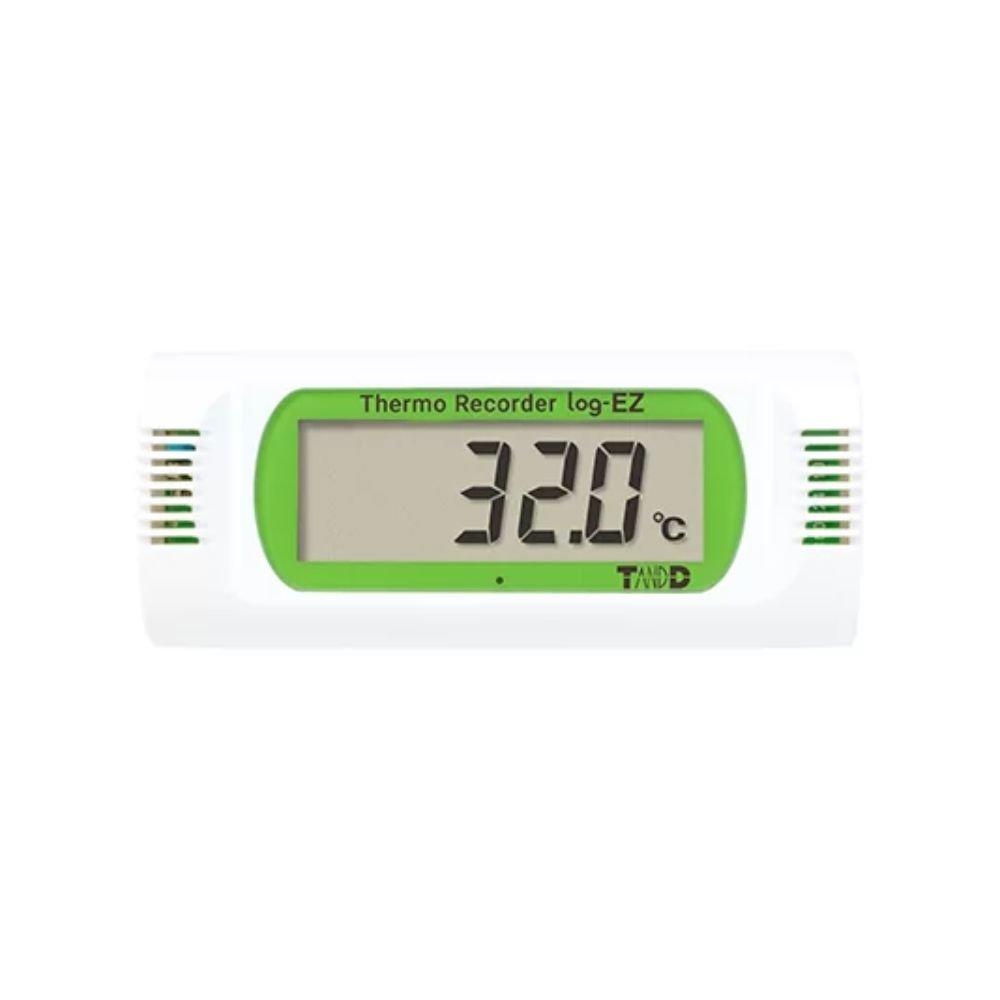

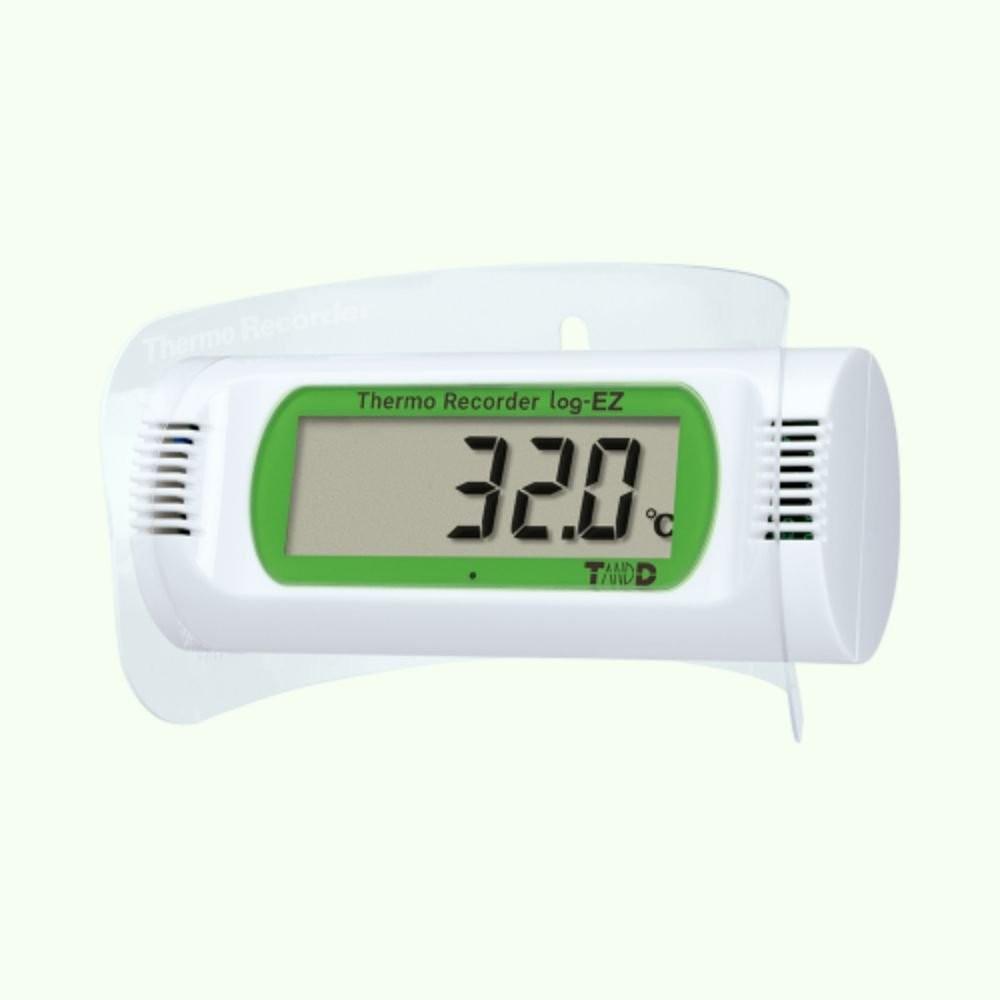

TND TR32B Bluetooth Temperature & Humidity Data Logger เป็นเครื่องบันทึกอุณหภูมิและความชื้นที่ใช้งานง่าย เพียงใส่แบตเตอรี่แล้ววางไว้ในจุดที่ต้องการวัดและบันทึกข้อมูล ดีไซน์ทรงกลมพร้อมเซ็นเซอร์ภายในตัวเครื่อง ทำให้ดูเรียบง่าย ดูกลมกลืนกับการตกแต่งภายในบ้านหรือสำนักงาน ตัวเครื่องใช้แบตเตอรี่อัลคาไลน์ขนาด AA 1 ก้อน สามารถใช้งานได้นานสูงสุดถึง 1 ปี (เมื่อกำหนดช่วงเวลาบันทึกข้อมูลมากกว่า 10 วินาที และดึงข้อมูลวันละครั้ง)
Bluetooth Temperature & Humidity Data Logger
ดีไซน์ทรงกลมพร้อมเซ็นเซอร์ภายในตัวเครื่อง ทำให้ดูเรียบง่าย ดูกลมกลืนกับการตกแต่งภายในบ้านหรือสำนักงาน สามารถใช้งานได้นานสูงสุดถึง 1 ปี (เมื่อกำหนดช่วงเวลาบันทึกข้อมูลมากกว่า 10 วินาที และดึงข้อมูลวันละครั้ง)
จุดเด่น
เครื่องบันทึกอุณหภูมิและความชื้นผ่าน Bluetooth ที่ใช้งานง่าย
รองรับข้อมูลสูงสุดถึง 8,000 ชุด
เพียงใส่แบตเตอรี่ AA แล้ววางไว้ในตำแหน่งที่ต้องการ เครื่องจะเริ่มวัดและบันทึกข้อมูลอัตโนมัติ โดยไม่ต้องติดตั้งหรือตั้งค่าให้ซับซ้อน

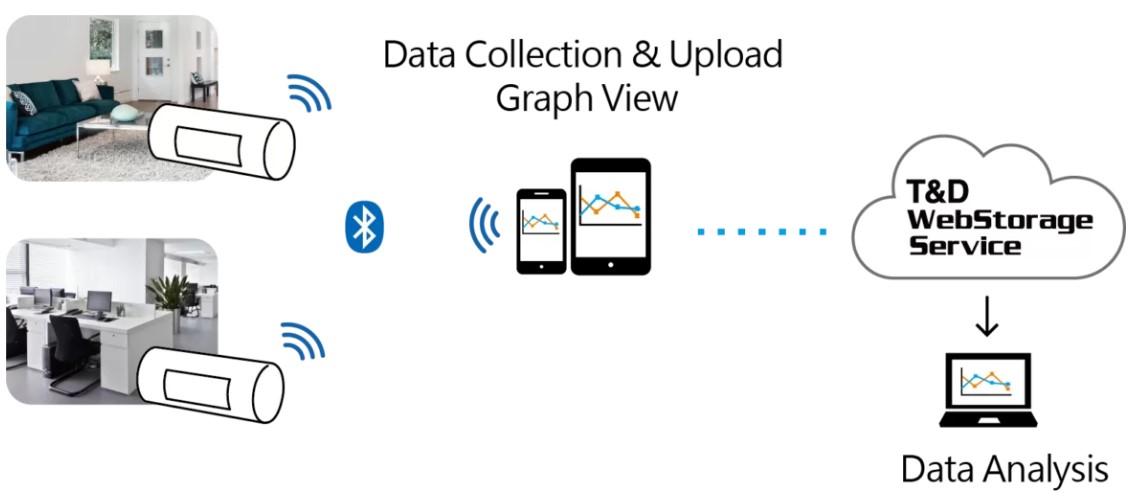

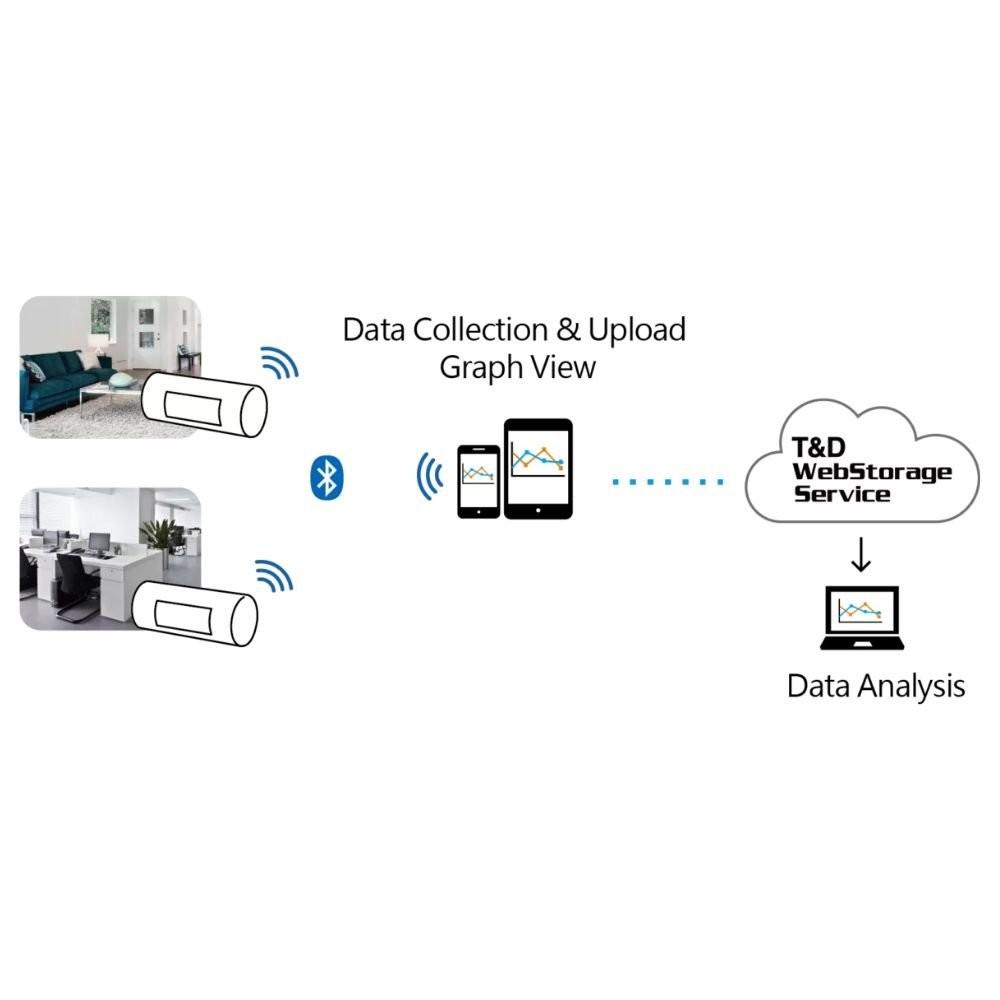

สามารถอัปโหลดข้อมูลไปยัง T&D WebStorage Service ได้ฟรี เพื่อดูข้อมูลย้อนหลังผ่านเว็บเบราว์เซอร์ หรือดาวน์โหลดเพื่อวิเคราะห์ต่อบนคอมพิวเตอร์
ช่วงการวัด
Measurement Range
Temperature : 0 to 50 °C
Humidity : 10 to 90 %RH
Accuracy
Temperature : ±0.5 °C
Humidity : ±5 %RH at 25 °C, 50 %RH
Power Supply
AA Alkaline Battery LR6 x 1
ขนาดเครื่อง
Dimensions : H 36 mm x W 85 mm x D 36 mm
Weight : 40 g


ข้อมูลจำเพาะ
Specifications | |
---|---|
Measurement Channels |
|
Sensor Type | Internal Thermistor Polymer Resistance |
Measurement Units | °C, °F, %RH |
Measurement Range |
|
Accuracy |
|
Measurement Resolution |
|
Responsiveness | Response Time (90%): Approx. 21 min. |
Logging Capacity | 8,000 data sets (One data set consists of readings for temperature and humidity) |
Recording Interval | Select from 15 choices: 1, 2, 5, 10, 15, 20, 30 sec. or 1, 2, 5, 10, 15, 20, 30, 60 min. |
Recording Mode | Endless (Overwrite oldest data when capacity is full) |
LCD Display Items | Measurements (alternating display), Battery Life Warning, etc. |
Communication Interfaces | Bluetooth 4.2 (Bluetooth Low Energy) |
Communication Time | Data Download Time (full logger): Approx. 15 seconds |
Power | AA Alkaline Battery LR6 × 1 |
Battery Life | Approx. 1 year |
Dimensions | 36 x 85 x 36 mm |
Weight | Approx. 40 g |
Operating Environment |
|
Accessories | AA Alkaline Battery LR6, Registration Code Label, Stand, Screw x 2, User's Manual Set (Warranty Included) |
Software |
|
