TND RTR505B เครื่องบันทึกอุณหภูมิ Multi-Functional Logger Selection of Five Modules

Measurement Item

Temperature, Voltage, 4-20mA, or Pulse Count

Logging Capacity

16,000 readings

Recording Interval

Select from 15 choices: 1, 2, 5, 10, 15, 20, 30 sec. or 1, 2, 5, 10, 15, 20, 30, 60 min.

Recording Mode

Endless (Overwrite oldest data when capacity is full) or One Time (Stop recording when capacity is full)

LCD Display Items

Measurements (alternating display for multiple channel devices), Recording Status, Battery Life Warning, etc.

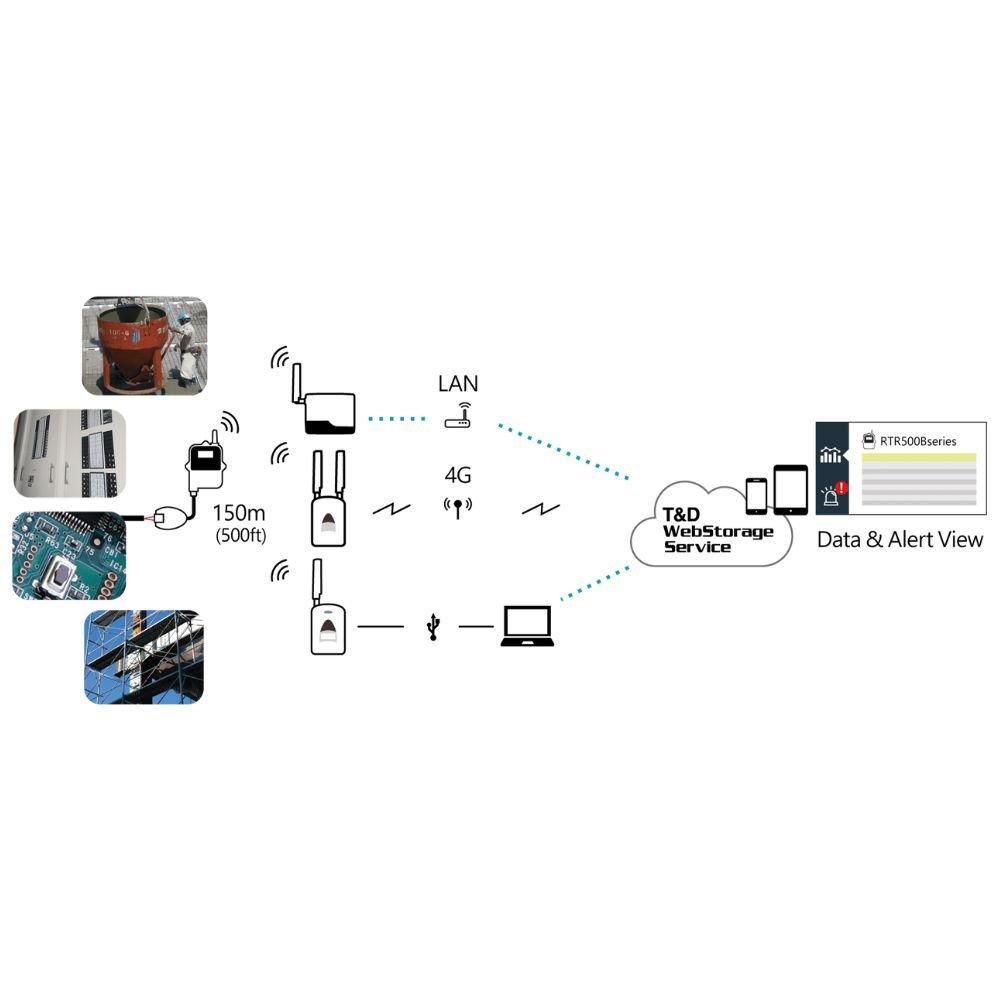

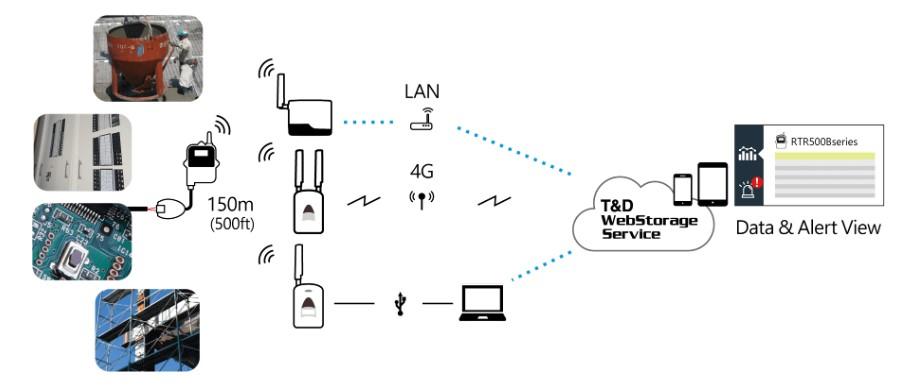

Communication Interfaces

Short Range Wireless Communication

US Model: Frequency Range: 902 to 928 MHz

RF Power: 7 mW

Transmission Range: Approx. 150 meters (500 ft) if direct and unobstructed

EU Model: Frequency Range: 869.7 to 870 MHz

RF Power: 5 mW

Transmission Range: Approx. 150 meters if direct and unobstructed

Bluetooth 4.2 (Bluetooth Low Energy) (*4)

Optical Communication

Power

Lithium Battery LS14250 x 1 (AC Adaptor used with External Power Adaptor Kit RTR-500A2)

Battery Life

10 months

Dimensions

62 x 47 x 19 mm

Weight

50 g

Operating Environment

Operating Environment

-40 to 80 °C

-30 to 80 °C during wireless communication

Waterproof Capacity

IP64: Splash proof (rated for use in daily life)
