Hioki LR5091 อแดปเตอร์สำหรับถ่ายโอนข้อมูลHioki LR5091 อแดปเตอร์สำหรับถ่ายโอนข้อมูลHioki LR5091 อแดปเตอร์สำหรับถ่ายโอนข้อมูลHioki LR5091 อแดปเตอร์สำหรับถ่ายโอนข้อมูล
HIOKI

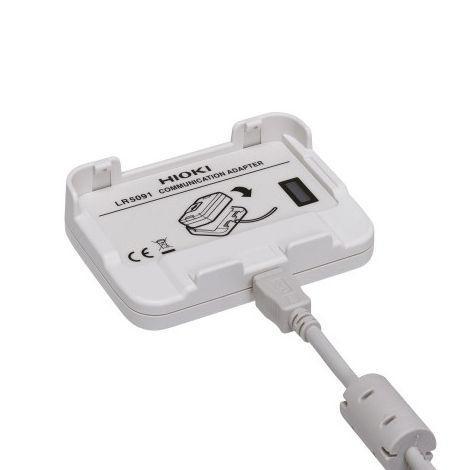

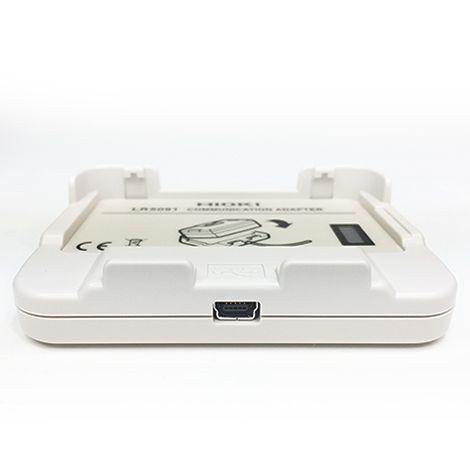

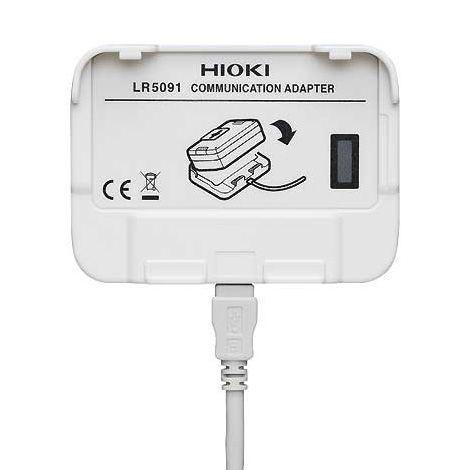

Hioki LR5091 อแดปเตอร์สำหรับถ่ายโอนข้อมูล

รหัสสินค้า

LR5091

฿2,430.00(ไม่รวมภาษี)

จำนวน

สินค้าในคลัง3

ภาพรวม

อแดปเตอร์สำหรับถ่ายโอนข้อมูลไปยังคอมพิวเตอร์ ใช้กับ LR5000 Series Data Logger เชื่อมต่อผ่าน Infrared, USB 2.0 ยี่ห้อ Hioki, Japan

เพิ่มคำถาม

ผู้ใช้งาน

8 พฤษภาคม 2567 17:28 น.

( 0 คำตอบ)

หากต้องการซื้อเฉพาะสายเคเบิ้ลซื้อแยกได้ไหมคะ

LR5091 | ฟังก์ชั่นการวัด

อแดปเตอร์สำหรับถ่ายโอนข้อมูลไปยังคอมพิวเตอร์ ใช้กับ LR5000 Series Data Logger

LR5091 | จุดเด่น

Transfer data from a data logger to a PC
Send settings and the time from a PC to a data logger.
USB 2.0

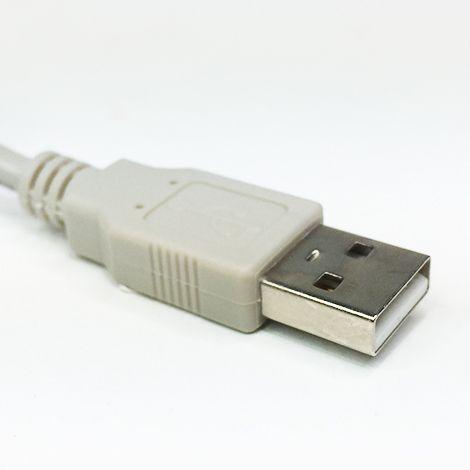

สาย USB ยาว 1 เมตร

LR5091 | ช่วงการวัด

Between data loggers: Infrared communication

LR5091 | Power Supply

USB bus power

LR5091 | ขนาดสินค้า

83 mm (3.27 in) W × 61 mm (2.40 in) H × 19 mm (0.75 in) D, 43 g (1.5 oz)

LR5091 | อุปกรณ์ที่มาในชุด

USB cable (1 m) ×1, CD (Application software "LR5000 Utility") ×1

LR5091 | ข้อมูลจำเพาะ

Communication method

Between data loggers: Infrared communication
With PC: USB 2.0

Operating environment

OS: Windows 7 (32/64bit, .NET Framework 2.0 or more), Vista (32bit, SP1 or more), XP (SP2 or more)
USB interface (when using the Communication Base 3910/3911, a COM port is required)

Function

• Settings: Communicates via infrared light with LR5000 series loggers to send and receive settings.

• Graph function: Displays graphs of up to 16 channels, displays statistical data, etc.

• Print function: Print graphs, Print statistical data.

• Export function (data CSV output, paste into Excel)

• Import function (loads text files from the Clamp On Power HiTester 3169-20/-21 [only demand parameter with a recording interval of at least 1 sec.])

• Processing of data: Scaling, Power calculation, Energy cost calculation, Operating ratio calculation, Integration, Dew point temperature, Calculate between channels

การใช้งานกับเครื่อง LR5000 Series ถ่ายโอนข้อมูลไปยังคอมพิวเตอร์
