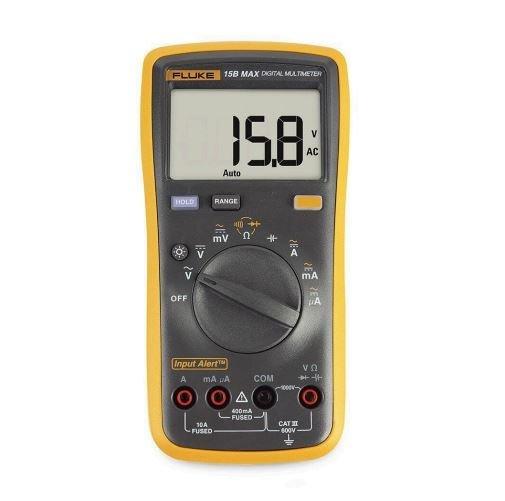

Fluke 15B MAX Economical Digital Multimeter

Accuracy is specified for 1 year after calibration, at operating temperatures of 18 °C to 28 °C, relative humidity at 0 % to 75 % Accuracy specifications take the form of: ± ([% of Reading] + [Number of Least Significant Digits]).

Function

Range

Resolution

Accuracy

AC Volts (40 Hz to 500 Hz)

6.000 V
60.00 V
600.0 V
1000 V

0.001 V
0.01 V
0.1 V
1 V

1.0 % + 3

AC Millivolts

600.0 mV

0.1 mV

3.0 % + 3

DC Volts

6.000 V
60.00 V
600.0 V
1000 V

0.001 V
0.01 V
0.1 V
1 V

0.5 % + 3

DC Millivolts

600.0 mV

0.1 mV

1.0 % + 10

AC Current μA (40 Hz to 400 Hz)2

400.0 μA
4000 μA

0.1 μA
1 μA

1.5 % + 3

AC Current mA (40 Hz to 400 Hz)2

40.00 mA
400.0 mA

0.01 mA
0.1 mA

1.5 % + 3

AC Current A (40 Hz to 400 Hz)2

4.000 A
10.00 A

0.001 A
0.01 A

1.5 % + 3

DC Current μA2

400.0 μA
4000 μA

0.1 μA
1 μA

1.5 % + 3

DC Current mA2

40.00 mA
400.0 mA

0.01 mA
0.1 mA

1.5 % + 3

DC Current A2

4.000 A
10.00 A

0.001 A
0.01 A

1.5 % + 3

Diode Test3

2.000 V

0.001 V

10%

Temperature 4

50.0 °C to 400.0 °C
0 °C to 50.0 °C
-55.0 °C to 0 °C

0.1 °C

NA

Resistance (Ohms)5

400.0 Ω
4.000 kΩ
40.00 kΩ
400.0 kΩ
4.000 MΩ
40.00 MΩ

0.1 Ω
0.001 kΩ
0.01 kΩ
0.1 kΩ
0.001 MΩ
0.01 MΩ

0.5 % + 3
0.5 % + 2
0.5 % + 2
0.5 % + 2
0.5 % + 2
1.5 % + 3

Capacitance6

40.00 nF
400.0 nF
4.000 μF
40.00 μF
400.0 μF
2000 μF

0.01 nF
0.1 nF
0.001 μF
0.01 μF
0.1 μF
1 μF

2 % + 5
2 % + 5
5 % + 5
5 % + 5
5 % + 5
5 % + 5

Frequency1 (10 Hz to 100 kHz)

50.00 Hz
500.0 Hz
5.000 kHz
50.00 kHz
100.0 kHz

0.01 Hz
0.1 Hz
0.001 kHz
0.01 kHz
0.1 kHz

NA

Duty Cycle1

1% to 99%

0.10%

NA

Continuity Threshold

—

—

70Ω

Backlight

—

—

Yes

Input Characteristics

AC Millivolts

1000 V 1

>1 MΩ, <100 pF

>80 dB at 50 Hz or 60 Hz

DC Volts

1000 V 1

>10 MΩ, <100 pF

>100 dB at 50 Hz or 60 Hz

DC Millivolts

1000 V 1

>1 MΩ, <100 pF

>80 dB at 50 Hz or 60 Hz

General Specifications

Maximum voltage between any Terminal and Earth Ground

600 V

Maximum differential voltage between V and COM terminals

1000V

Display (LCD)

6000 counts, updates 3/sec

Battery Type

2 AA, IEC LR6

Battery life

500 hours minimum

Temperature

Operating 0 °C to 40 °C;
Storage -30 °C to 60 °C

Relative Humidity

Operating Humidity Non-condensing
(<10 °C); ≤90 % RH at 10 °C to 30 °C;
≤75 % RH at 30 °C to 40 °C

Operating Humidity, 40 MΩ range

≤80 % RH at 10 °C to 30 °C; ≤70 % RH at 30 °C to 40 °C

Altitude

Operating 2000 m; Storage 12000 m

Temperature Coefficient

0.1 X (specified accuracy) /°C (<18 °C or >28 °C)

Fuse protection for current inputs

440 mA, 1000 V, fast-blow, use only Fluke
specified parts. 11 A, 1000 V, fast-blow,
use only Fluke specified parts

Size (HxWxL)

183 mm x 91 mm x 49.5 mm

Weight

455 g

Ingress Protection

IP40

Safety

IEC 61010-1, IEC61010-2-030: CAT III
600 V, Pollution Degree 2

Electromagnetic Environment

IEC 61326-1: Portable

Electromagnetic Compatibility (EMC)

Only applicable in Korea
