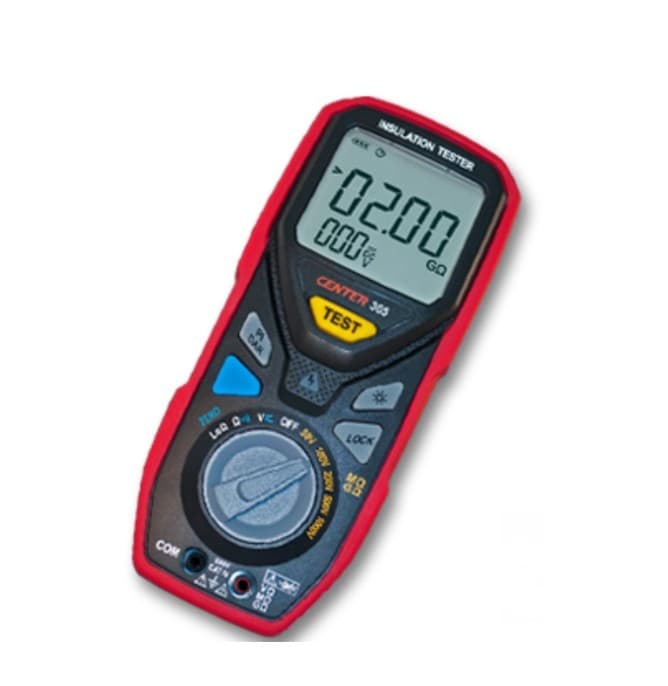

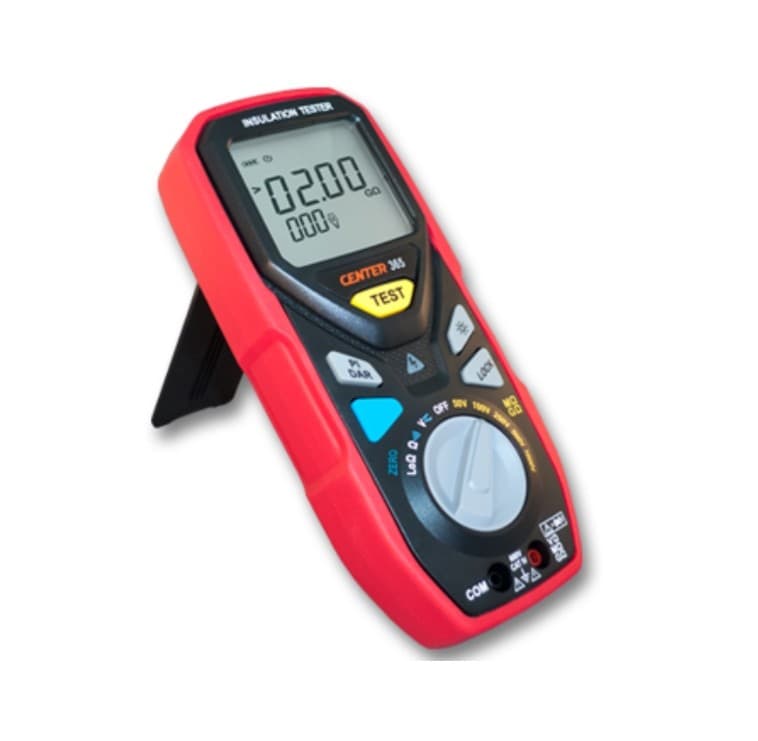

CENTER-365 เครื่องทดสอบความเป็นฉนวน

Insulation Rresistance Measurement

Insulation test voltage:50V

Range: 300KΩ/3.00MΩ/30.0MΩ/300MΩ/1.00GΩ

Accuracy: ±(3%rdg+5dgts) (30KΩ~1.00GΩ)

Insulation test voltage: 100V

Range: 600KΩ/6.00MΩ/60.0MΩ/600MΩ/2.00GΩ

Accuracy: ±(3%rdg+5dgts) (60KΩ~2.00GΩ)

Insulation test voltage: 250V

Range: 1.50MΩ/15.0MΩ/150MΩ/1.50GΩ Accuracy: ±(3%rdg+5dgts) (0.15MΩ~1.50GΩ)

Range: 5.0GΩ Accuracy: ±(10%rdg+3dgts)

Insulation test voltage: 500V

Range: 3.00MΩ/30.0MΩ/300MΩ/3.00GΩ Accuracy: ±(3%rdg+5dgts) (0.30MΩ~3.00GΩ)

Range: 10.0GΩ Accuracy: ±(10%rdg+3dgts)

Insulation test voltage: 1000V

Range: 6.00MΩ/60.0MΩ/600MΩ/6.00GΩ Accuracy: ±(3%rdg+5dgts) (0.60MΩ~6.00GΩ)

Range: 20.0GΩ Accuracy: ±(10%rdg+3dgts)

AC/DC Voltage

Range: 60.00V/600.0V

Resolution: 0.01V/0.1V

Accuracy (AC: 45~500Hz): ±2%rdg+5dgts

Protection: 600Vrms

Resistance

Range: 600.0Ω/6.000KΩ/60.00ΚΩ/600.0ΚΩ

Resolution: 0.1Ω/0.001KΩ/0.01ΚΩ/0.1ΚΩ

Accuracy: 2%rdg+5dgts

Protection: 600Vrms

Continuity

Range: 600.0Ω

Resolution: 0.1Ω

Accuracy: ≦ 7Ω±1Ω

Protection: 600Vrms

LoΩ

Range: 6.00Ω/60.0Ω

Resolution: 0.01Ω/0.1Ω

Accuracy: 2%rdg+3dgts

Auto Power Off

Approx. 10 minutes

Approvals

EN61010 600V CAT IV

Electromagnetic Compatibility

EN61326-1

Battery

1.5V size AA battery x 4

Dimensions

206x90x51 mm

Weight

510g
