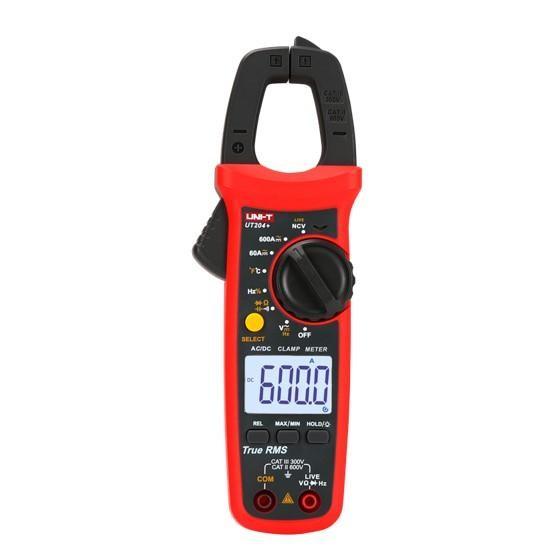

UT204Plus ฟังก์ชั่นการวัด
แคลมป์มิเตอร์ Digital Clamp Meters
UT204Plus จุดเด่น
True RMS
LCD backlight
หน้าจอขนาดใหญ่พร้อมตัวเลขแสดงผลที่มองเห็นชัดเจน
วัดค่าความจุขนาดใหญ่ได้ถึง 60 มิลลิฟารัด (60mF)
ทดสอบสายไฟเฟส (Live) และสายไฟนิวทรัล (Neutral)
มีฟังก์ชั่น Auto range, True RMS, NCV, Live wire test, Continuity test, Diode, MAX/MIN, Relative mode, Zero mode, Data hold,
Low battery indication และ Auto power off
UT204Plus ช่วงการวัด
AC current (A) 600A /±(2.5%+5)
AC current frequency (Hz) 50Hz~100Hz
DC current (A) 600A /±(2.5%+5)
AC voltage (V) 600V /±(0.8%+5)
AC voltage frequency(Hz) 10Hz~60kHz /±(0.5%+2)
DC voltage (A) 600V/±(0.5%+2)
Resistance (Ω) 60MΩ /±(0.8%+2)
Capacitance (F) 60mF /±(4%+5)
Temperature (℃) -40℃~1000℃ /±(1.5%+5)
Frequency (Hz) 10Hz~10MHz /±(0.1%+4)
UT204Plus Power Supply
1.5V battery (R03) x 2
UT204Plus ขนาดสินค้า
485mm x 295mm x 385mm
17.3kg
Display 37mm x 25mm
UT204Plus อุปกรณ์ที่มาในชุด
Gift box, Carring bag, English manual
UT204Plus ข้อมูลจำเพาะ
Display count 6000
Jaw opening 28mm
Product color Red and grey
