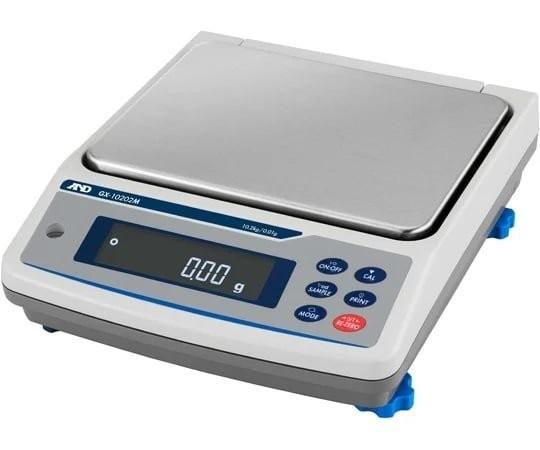

AND GX-10202M เครื่องชั่งน้ำหนักดิจิตอล | Max. 10.2 kg

Readability

0.01 g

Repeatability (standard deviation)

0.01 g

Linearity

±0.03 g

Stabilization time (typical when set to FAST)

Approx. 1.5 seconds

Counting mode

Minimum unit mass

0.01 g

Number of samples

10, 25, 50 or 100 pieces

Percent mode

Minimum 100% reference mass

1 g

% readability

0.01%, 0.1% or 1% (depends on the reference mass stored)

Weighing pan size

270 mm × 210 mm

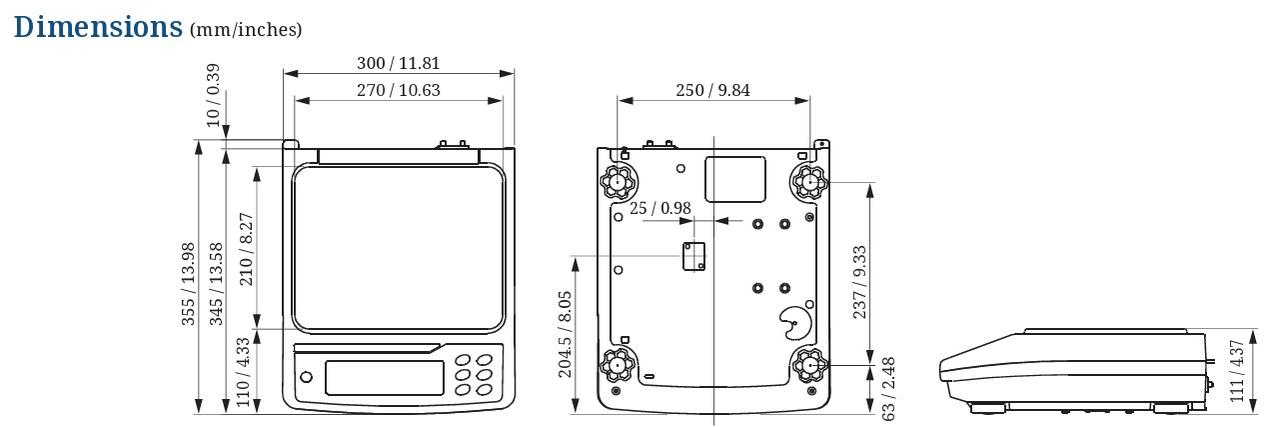

External dimensions

300 (W) × 355 (D) × 111 (H) mm

Net weight

Approx. 9.3 kg

Operating environment

5 to 40 °C (41 to 104 °F), 85%RH or less (no condensation)

Data memory

200 weighing results + 50 calibration results (with timestamp), 50 unit masses for counting mode, 20 sets of upper/lower limit values for comparator mode, and 20 tare values

Display refresh rate

5 times/second, 10 times/second, or 20 times/second

Units of measure*iii

g (gram), kg (kilo gram), oz (ounce), lb (pound), lb-oz (pound-ounce), ozt (troy ounce), ct (metric carat), mom (momme), dwt (pennyweight), gr (grain), pcs (counting mode), % (percent mode), SG (density mode), and a user-programmable unit

Applicable calibration weight value

2 kg, 3 kg, 4 kg, 5 kg, 6 kg, 7 kg, 8 kg, 9 kg, 10 kg

Dust and waterproof rating

IP65

Power supply / consumption

AC adapter / approx. 30 VA

Standard accessories

Display cover, AC adapter, USB cable (1.8 m), Simple breeze break (for the GX/F-8202M, GX/F-8202MD, and GX/F-10202M only)

*iii One additional unit from tael (Singapore/HK jewelry/Taiwan), tola, or Newton can be added upon request. Grain is not available with the GX/F-32001MD.

Options

GXM-04*5*6 : Comparator relay output/buzzer/RS-232C/external key input interface

GXM-06*5*6*7 : Analog (0-1/0.2-1 V) output/RS-232C interface

GXM-08*5*6 : Ethernet (TCP/IP) interface

GXK-012 : Animal weighing pan

GXK-015 : Carrying case

GXM-27*5*8 : Bluetooth® interface

*5 Only one of GXM-04, GXM-06, GXM-08, GXM-27, or the standard (RS-232C and USB) interfaces can be used.

*6 The GX-M/GF-M series are not IP65 with GXM-04, GXM-06 or GXM-08

*7 Analog output is updated according to the display refresh rate. Display refresh rate can be changed in the internal settings of the balance. (approx. 5/10/20 times/sec)

*8 Please contact your local A&D representative to find out whether GXM-27 is certified for compliance with Bluetooth® communication laws in your country.

Accessories

AD-1641 : Air flow logger

AD-1682 : Rechargeable battery unit

AD-1683 : Static eliminator

AD-1684A : Electrostatic fieldmeter

AD-1687 : Weighing environment logger

AD-1688 : Weighing data logger

AD-8129TH : Compact printer

AD-8526 : RS-232C/Ethernet (TCP/IP) converter

AD-8920A : Remote display

AD-8922A : Remote controller

AX-USB-9P : RS-232C/USB converter with cable

AX-KO2737-500 : Waterproof RS-232C cable (5m)
