Fluke-922-KIT ฟังก์ชั่นการวัด
เครื่องวัดปริมาตรลม Airflow Meter/Kit
Fluke-922-KIT จุดเด่น
Powerful meter provides differential and static pressure, air velocity and flow readings
Convenient colored hoses help proper interpretation of pressure readings
Easy to use without sacrificing performance
Bright, backlit display for clear viewing in all environments
User-defined duct shape and size for maximum airflow accuracy
Resolution down to 0.001 in H2O
99 point data storage capacity
Min/Max/Average/Hold functions for easy data analysis
Auto power off saves battery life
Fluke-922-KIT ช่วงการวัด
Air pressure
Range / Resolution / Accuracy
±4000 Pascals / 1 Pascal / ±1% + 1 Pascal
±16 inH2O/ 0.001 inH2O/±1% + 0.01 inH2O
±400 mmH2O/ 0.1 mmH2O / ±1% + 0.1 mmH2O
±40 mbar /0.01 mbar / ±1% + 0.01 mbar
±0.6 psi / 0.0001 psi /±1% + 0.0001 psi
Air velocity
Range / Resolution / Accuracy
250 to 16,000 fpm / 1 fpm / ±2.5% of reading at 2000 fpm (10.00 m/s)
1 to 80 m/s / 0.001 m/s / ±2.5% of reading at 2000 fpm (10.00 m/s)
Air flow (volume)
Range / Resolution / Accuracy
0 to 99,999 cfm / 1 cfm / Accuracy is a function of velocity and duct size
0 to 99,999 / 1 m3/hr / Accuracy is a function of velocity and duct size
0 to 99,999 l/s / 1 l/s / Accuracy is a function of velocity and duct size
Temperature
Range / Resolution / Accuracy
0°C to 50°C / ±1% + 2°C / 0.1°C
32°F to 122°F / ±1% + 4°F / 0.1°F
Fluke-922-KIT Power Supply
AA batteries x 4

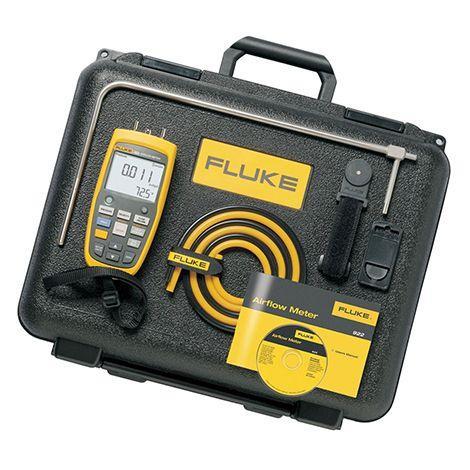

Fluke-922-KIT อุปกรณ์ที่มาในชุด

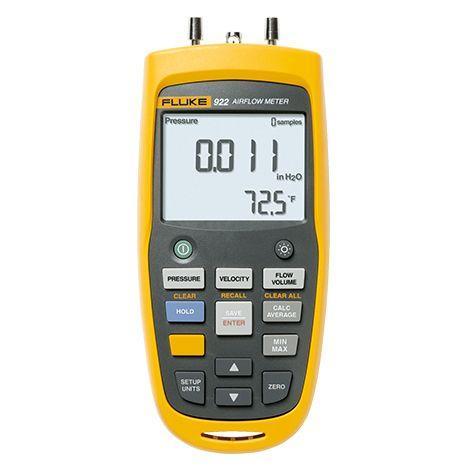

Fluke 922 Airflow Meter,

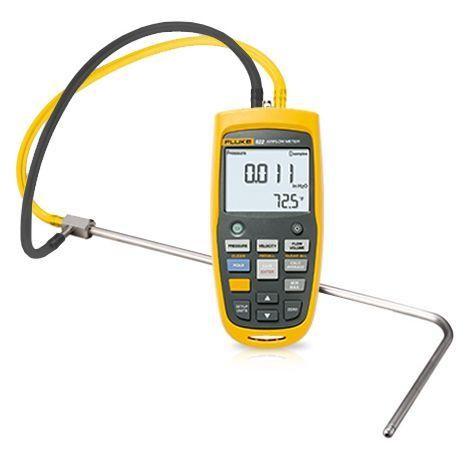

12 in. pitot tube
ToolPakTM
Two Rubber Hoses

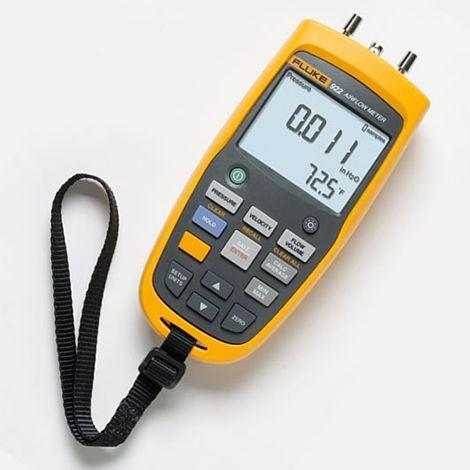

Wrist Strap
Four AA Batteries 1.5 V Alkaline
Users Manual and Hard Carrying Case
Fluke-922-KIT ข้อมูลจำเพาะ
Operating temperature 0°C to +50°C (+32°F to +122°F)
Storage temperature -40°C to +60°C (-40°F to +140°F)
Relative humidity 0% to 90%, non-condensing
IP rating IP40
Operating altitude 2000 m
Storage altitude 12000 m
EMI, RFI, EMC Meets requirements for EN61326-1
Vibration MIL-PREF-28800F, Class 3
Max pressure at each port 10 psi
Data storage capacity 99 readings
Battery life 280 hours without backlight, 60 hours with backlight
