Defelsko RTKITMICCERT Testex Micrometer Dial Thickness Gage (Certified)
DeFelsko

Defelsko RTKITMICCERT Testex Micrometer Dial Thickness Gage (Certified)

รหัสสินค้า

RTKITMICCERT

฿17,200.00(ไม่รวมภาษี)

ภาพรวม

ชุดเกจวัดความหนาหน้าปัดแบบอนาล็อกไมโครมิเตอร์ Testex Micrometer Dial Thickness Gage (Certified) Analog Micrometer Kits ยี่ห้อ DeFelsko, USA

เพิ่มคำถาม

RTKITMICCERT ฟังก์ชั่นการวัด

Micrometer Dial Thickness Gage

RTKITMICCERT จุดเด่น

  1. Analog Micrometer Kits
  2. Scale in Mils or Microns
  3. With or without Certificate of Calibration
  4. Micrometer only or Kit with everything      required for testing

RTKITMICCERT อุปกรณ์ที่มาในชุด

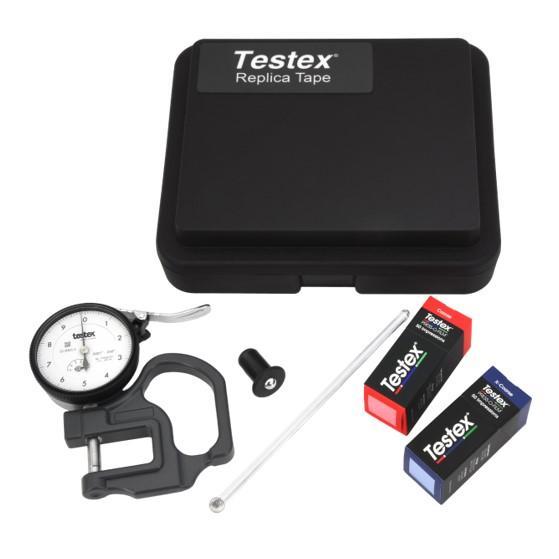

micrometer, two cartons of Testex Press-O-Film tape (Coarse and X-Coarse), two burnishing tools – High Accuracy Burnishing Tool and classic burnishing tool,  instruction manual, and a hard shell case. Certified

RTKITMICCERT ข้อมูลจำเพาะ

How it Works

Defelsko RTKITMICCERT Testex Micrometer Dial Thickness Gage (Certified)

Prepare

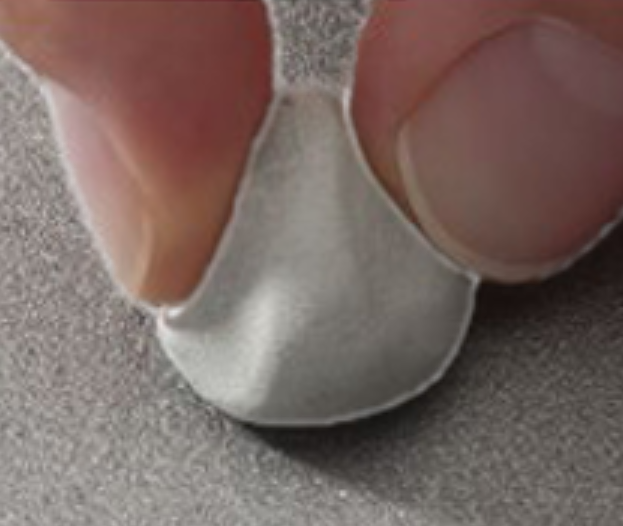

Use cleaning putty to remove dust, debris, or residual blast media from the measurement site by firmly pressing the putty onto the surface to be tested using your fingers and remove.


Defelsko RTKITMICCERT Testex Micrometer Dial Thickness Gage (Certified)

Burnish
Select the appropriate grade of replica tape, then pull a single piece of tape free of its release paper and apply to blasted surface.

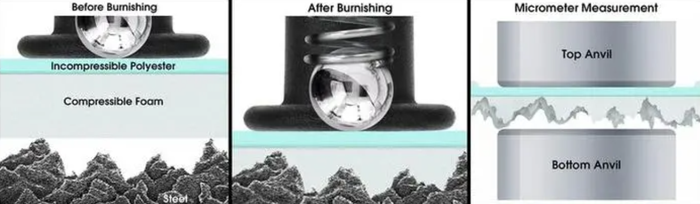

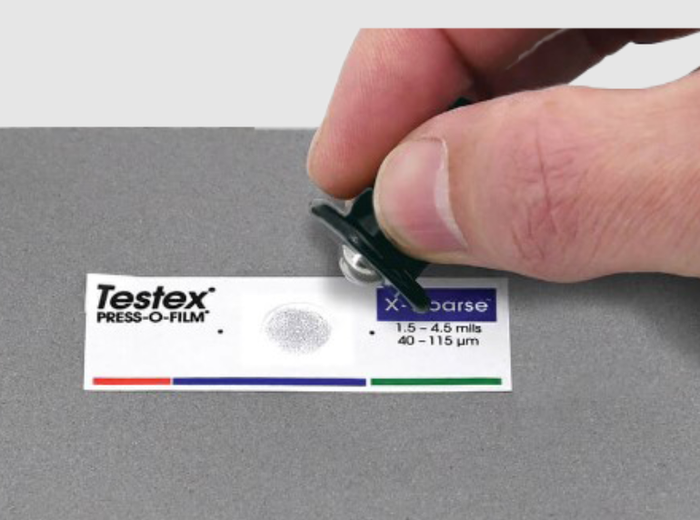

Firmly compress replica film using burnishing tool by applying sufficient pressure in a circular and x-y rubbing motion. When complete, remove tape from surface.


Defelsko RTKITMICCERT Testex Micrometer Dial Thickness Gage (Certified)

Measure

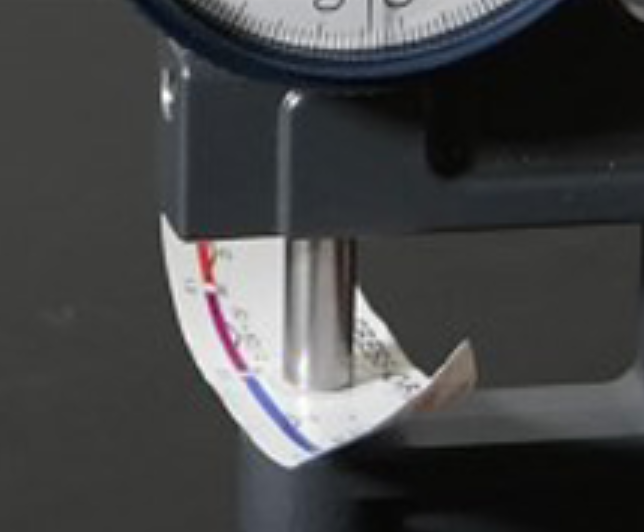

Insert the compressed replica tape between the micrometer's measurement anvils and take a reading.
Ensure the tape is properly positioned so that the burnished region is centered in the anvils with the adhesive side down.

Defelsko RTKITMICCERT Testex Micrometer Dial Thickness Gage (Certified)
