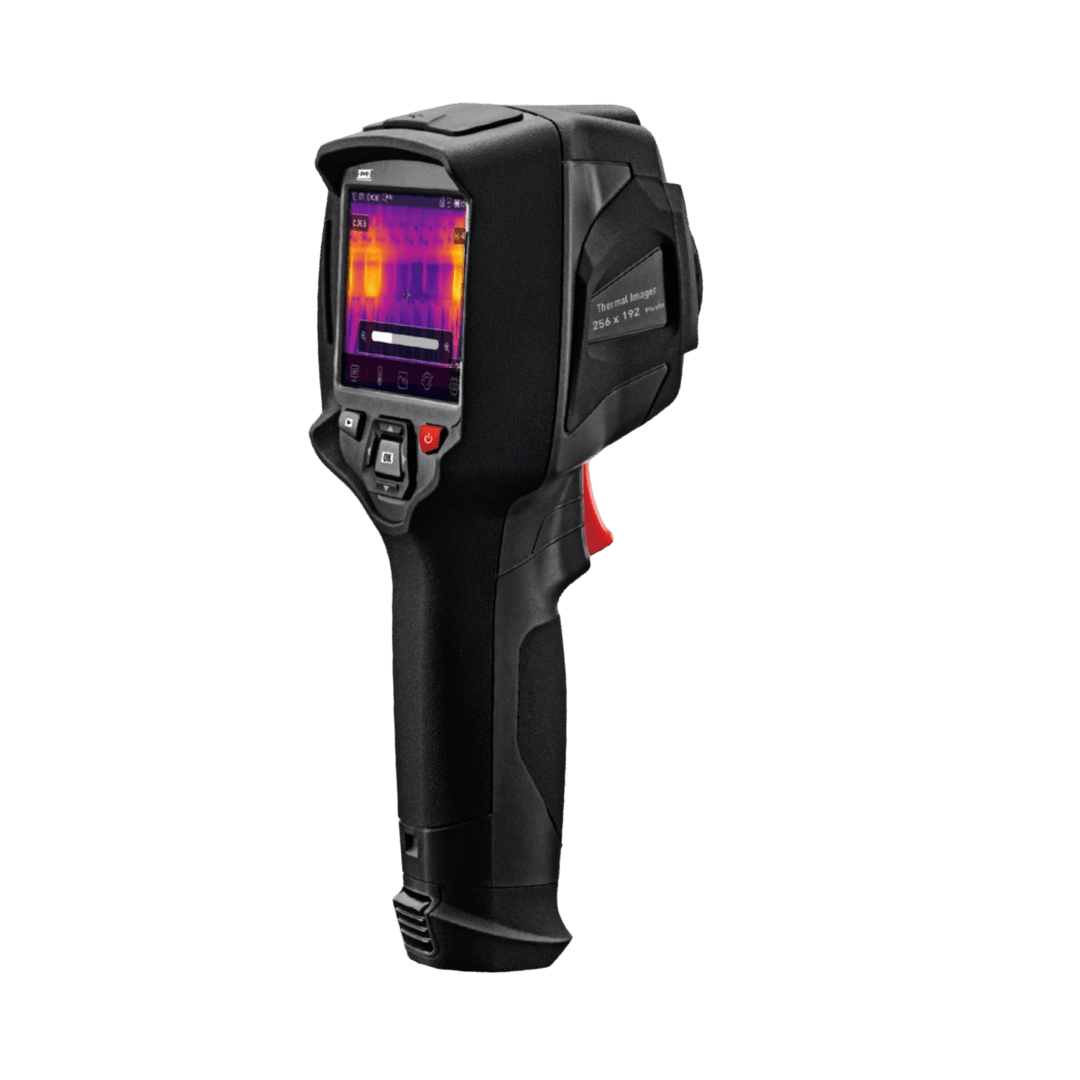

CEM DT-986H Advanced Thermal Imagers
DT-986H
DT-986H
CEM DT-986H ฟังก์ชันผสานภาพ (Image Fusion) แสดงภาพความร้อนซ้อนทับบนภาพดิจิทัล และมีแกลเลอรีภาพขนาดย่อที่เข้าถึงง่าย ช่วยให้ตรวจสอบและค้นหาภาพความร้อนได้อย่างรวดเร็ว
คำถามที่พบบ่อย
มีข้อสงสัยเกี่ยวกับสินค้า/บทความ สอบถามชุมชนหรือผู้เชี่ยวชาญของเรา
Features
Smart design with big screen occupation ratio
Capture additional measurements fastly and conveniently with wireless modules
Find problems faster and easier and accurately identify potential issues by combining digital and IR images
Image fusion function displays thermal image super-imposed over a digital image and easy-to-access thumbnail image gallery helps you to quickly review and find your thermal images.
Powerful Auto Fusion mode (AUF)
Equipped with standard video, USB outputs as well as a removable SD card.
Realtime analyse and picture analyse function
Specifications | DT-986H |
|---|---|
🔹 Imaging and optical data | |
IR resolution | 256×192 pixels |
FPA / Spectral range | Uncooled microbolometer / 8–14 µm |
Focal length | 3.2 mm |
Field of View (FOV) | 36×27° |
Minimum focus distance | 0.5 m |
Spatial resolution | 3.75 mrad |
Thermal sensitivity (NETD) | <0.1°C @30°C (86°F) / 100mK |
Image frequency | 25 Hz |
Focus | Focus Free |
Zoom | 1–16x digital zoom |
Image presentation | |
Display | 3.5” LCD Touch, 640x480 pixels |
Image modes | IR image, visual image, picture in picture, AUF |
Picture in Picture | IR area on visual image |
Color palettes | IRON, Rainbow, Grey, Grey lnverted, Brown, Blue-red, Hot-cold, Feather, Above alarm, Below alarm, Zone alarm, Vision zone |
Measurement | |
Object temperature range | –20 to 150°C / 0 to 350°C / extended to –20 to 650°C –20 to 550°C |
Accuracy | ±2°C or ±2% of reading |
Measurement analysis | |
Spotmete | Center Spot, Auto hot or cold markers |
Set-up | |
Language selection | English, Chinese, French, German, Spanish |
Storage of videos/images | |
Inside Memory / Storage media | 8Gbytes Micro SD card ar 3.4GB internal EMMC |
Video storage format | Standard MPEG-4 encode, 640x480 at 30fps, an memory card >60 minutes |
Image storage format | Standard JPEG.ar HIR files including measurement data, an memory card >6000 pictures |
Digital camera | |
Built-in visible light digital camera | 2 Megapixels; FOV 65° |
Data communication interfaces | |
Interfaces &Video output | USB-Type C |
USB | Data & Live video transform between camera and PC or smartphone |
Bluetooth | Yes |
WiFi | |
Live video between device and PC | Yes |
Transfer images and data to mobile devices | Yes |
Battery / Input voltage / Laser | Li-ion battery, 4 hours operating time / DC 5V / < 1mW |
D-986H
2 Megapixel built-in digital camera enables the overlaying of digital and thermal images as well as the more advanced fusion mode.
3,4 Gb internal memory (Standard MPEG-4 encode, 640x480 at 30fps, an memory card >60 minutes. video using the 8GB micro SD Card, Video output via USB or HDMI.
4 hour battery life with the rechargeable battery and automatic shutdown. Easy-to-use interface, this unit is ideal for monitoring process parameters, predictive maintenance, equipment troubleshooting and verification. The compact, rugged and lightweight design allows for optimum portability and performance, even in harsh working conditions.
Supplied with adaptor, battery, App software, USB cable and convenient carry case.
