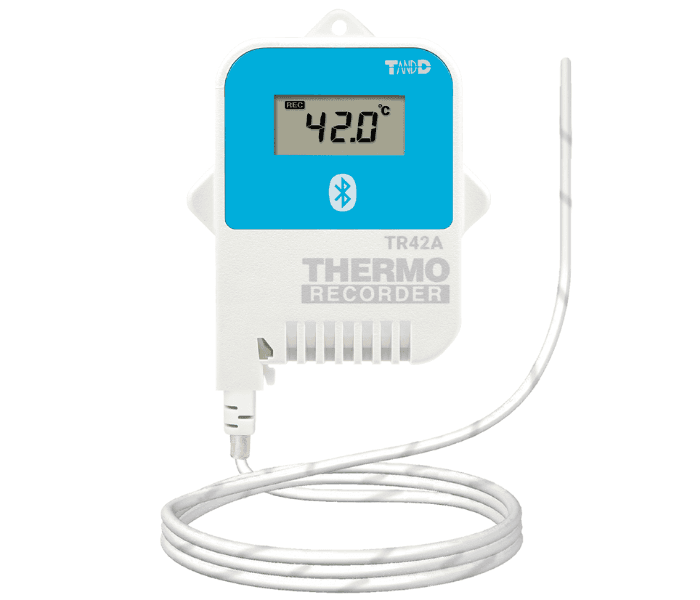

เครื่องวัดและบันทึกอุณหภูมิ Wifi & Bluetooth ช่วงการวัด -60 to 155 °C Bluetooth 4.2 (Bluetooth Low Energy)
TR-42A | ฟังก์ชั่นการวัด
วัดอุณหภูมิ
TR-42A | จุดเด่น
- แอพพลิเคชั่นหลากหลาย
- การวัดอุณหภูมิที่แม่นยำ
- กันน้ำและทนทาน IP64
- แอพมือถือฟรีสำหรับการจัดการข้อมูล
- บันทึกข้อมูล 16,000 ค่า
TR-42A | ช่วงการวัด
Range : -60 to 155 °C
Resolution : 0.1 °C
Accuracy :
Avg. ±0.3 °C
at -20 to 80 °C
Avg. ±0.5 °C
at -40 to -20 °C, 80 to
110 °C
Avg. ±1.0 °C
at -60 to -40 °C, 110 to
155 °C
TR-42A | Power Supply
Lithium Battery (LS14250) x 1
TR-42A | ขนาดสินค้า
H 62 mm x W 47 mm x D 19 mm (excluding protrusions and sensor)
Weight Approx. 45 g
TR-42A | อุปกรณ์ที่มาในชุด
ตัวเครื่อง
Temperature Sensor TR-5106
Lithium Battery LS14250, Registration Code Label, Strap, User's Manual (Warranty Included)
TR-42A | อุปกรณ์เสริม
-
TR-42A | ข้อมูลจำเพาะ
Sensor : Thermistor
Responsiveness : Response Time (90%): Approx. 80 sec. (in air) Approx. 7 sec. (in agitated water)
Recording Interval : Select from 15 choices: 1, 2, 5, 10, 15, 20, 30 sec. or 1, 2, 5, 10, 15, 20, 30, 60 min.
Recording Mode : Endless (Overwrite oldest data when capacity is full) or One Time (Stop recording when capacity is full)
Communication Interfaces : Bluetooth 4.2 (Bluetooth Low Energy)
Communication Time : Data Download Time (full logger) : Approx. 15 seconds
Battery Life (*3) Approx. 1.5 years (*4)
Operating Environment :
-40 to 80 °C
-30 to 80 °C during wireless communication
Waterproof Capacity : IP64: Splash proof (rated for use in daily life) (*5)
Software (*6) : Mobile Applications (iOS, Android) T&D Thermo, TR4 Report PC Software (Windows) T&D Graph
*1: We do not handle the sale of Thermocouple sensors.
*2: In the case of a 4-wire sensor, one wire will be left unused.
*3: Battery life varies depending upon multiple factors including ambient temperature, recording interval, frequency of communication, and battery performance. All estimates are based on operations carried out with a new battery and are in no way a guarantee of actual battery life.
*4: Estimated battery life when recording data at an interval of more than 10 seconds and collecting data once a day.
*5: This is the waterproof capacity of the data logger with the sensor connected. Note that the temperature-humidity sensor is not water resistant.
*6: Free software download and information on OS compatibility is available on the Software page of our website at https://tandd.com/software/ . The specifications listed above are subject to change without notice.
