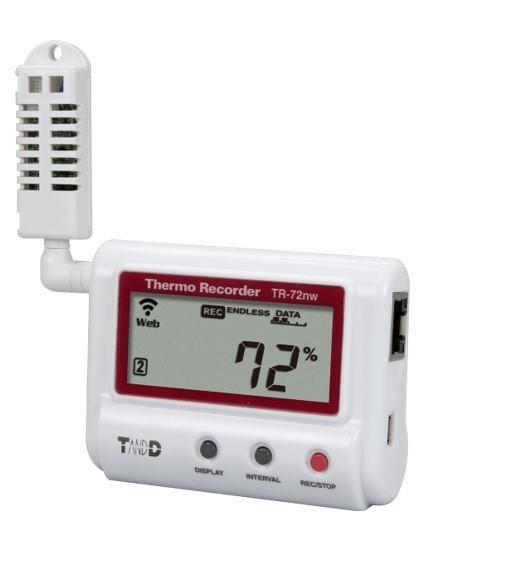

T&D TR-72nw เครื่องบันทึกอุณหภูมิและความชื้นแบบไร้สาย 8,000 Data/Ch | Wired LAN, USB
TND

T&D TR-72nw เครื่องบันทึกอุณหภูมิและความชื้นแบบไร้สาย 8,000 Data/Ch | Wired LAN, USB

รหัสสินค้า

TR-72nw

฿9,800.00(ไม่รวมภาษี)

ภาพรวม

เครื่องวัดและบันทึกอุณหภูมิและความชื้น ช่วงการวัดTemperature 0 to 55°C | Humidity 10 to 95%RH อัพเกรดการบันทึกข้อมูลได้ 8,000 ค่า 2 Channel (Temperature 1ch, Humidity 1ch) แสดงผล Max/ Min และ ALM บนหน้าจอ LCD สามารถดูข้อมูลผ่าน Wireless LAN และ USB ดูข้อมูลที่อัปโหลดในเครื่องพีซีหรือโทรศัพท์มือถือได้ทุกที่ทุกเวลาด้วย Free Cloud Storage ยี่ห้อ T&D, Japan

เพิ่มคำถาม

TR-72nw | ฟังก์ชั่นการวัด

เครื่องบันทึกอุณหภูมิและความชื้นแบบไร้สาย (Cloud Network) Wired LAN, USB

TR-72nw | จุดเด่น

บันทึกข้อมูลได้ 30,000 ค่า ต่อแชนแนล: TR-72nw สามารถบันทึกข้อมูลได้สูงสุดถึง 8,000 ค่า (One data set consists of readings for all channels)

Recording Interval Select from 15 choices: 1, 2, 5, 10, 15, 20, 30 sec. or 1, 2, 5, 10, 15, 20, 30, 60 min

จอ LCD Display

ส่งอีเมลการแจ้งเตือน: อีเมลแจ้งเตือนจะถูกส่งจาก T&D WebStorage Service เมื่อได้รับข้อมูลจาก TR-72nw ที่มีค่าการวัดเกินกว่าที่ผู้ใช้ได้ตั้งค่าไว้

แสดงผล Max/ Min และ ALM บนหน้าจอ LCD: นอกเหนือจากการวัดค่าได้ถึง 2 แชนแนลแล้ว TR-72nw ยังสามารถแสดงผล ค่าการวัดสูงสุด,

ค่าการวัดต่ำสุด และแจ้งเตือน (ALM) ค่าที่ผิดปกติ จากทั้ง 2 แชนแนล บนหน้าจอ LCD ได้อีกด้วย

การจัดการข้อมูลบนอินเตอร์เน็ต: ผู้ใช้งานสามารถตั้งค่า PC เป็นจุดรับข้อมูลได้ผ่านซอฟต์แวร์ T&D Data Server โดยไม่มีค่าใช้จ่าย

พร้อมฟังก์ชั่นมากมาย เช่น การรับและบันทึกข้อมูล, การมอนิเตอร์ และแสดงผลกราฟด้วยเว็บบราวเซอร์ หรือแม้แต่การแจ้งเตือนผ่านอีเมลโดยที่ไม่สามารถใช้ cloud service ก็สามารถทำได้

ดูข้อมูลที่อัปโหลดในเครื่องพีซีหรือโทรศัพท์มือถือได้ทุกที่ทุกเวลาด้วย Free Cloud Storage

TR-72nw | ช่วงการวัด

Temperature 0 to 55°C

Accuracy  ±0.5 °C

Resolution  0.1 °C


Humidity 10 to 95%RH

Accuracy  ±5 %RH  at 25 °C, 50 %RH

Resolution  1 %RH

TR-72nw | Power Supply

AA Alkaline LR6 x 2, AA Ni-MH x 2

External: USB Bus 5V 200mA, AC Adaptor AD-05A2 or AD-05C2, PoE IEEE 802.3af (*5)

TR-72nw | ขนาดสินค้า

H 58 mm x W 78 mm x D 26 mm / 55 g

TR-72nw | อุปกรณ์ที่มาในชุด

THA-3001 x 1

AA Alkaline Battery LR6 x 2

Registration Code Label

USB Mini-B Cable US-15C

Manual Sett (Warranty Included)

TR-72nw | อุปกรณ์เสริม

Temperature-Humidity Sensors

THA-3001

THA-3151

SHA-3151


AC Adaptors

AD-05A2

AD-05C2


Wall Attachment

TR-07K2


Communication Cable

US-15C


Software for Purchase

SO-TD1


Sensor Extension Cables

TR-1C30

TR-5C10

TR-72nw | ข้อมูลจำเพาะ

Measurement Channels  Temperature 1ch, Humidity 1ch

Sensor  Thermistor / Polymer Resistance

Measurement Units  °C, °F / %RH

Measurement Range External  Sensor  0 to 55 °C / 10 to 95 %RH

Responsiveness  Response Time (90%): Approx. 7 min.

Logging Capacity  8,000 data sets (One data set consists of readings for all channels)

Recording Interval  Select from 15 choices: 1, 2, 5, 10, 15, 20, 30 sec. or 1, 2, 5, 10, 15, 20, 30, 60 min.

Recording Mode  Endless (Overwrite oldest data when capacity is full) or One Time (Stop recording when capacity is full)

LCD Display  Items Measurements (fixed or alternating display),Recording Status, Recording Mode, Battery Warning Mark, etc.

Auto-upload Interval  Select from 15 choices: OFF (No auto-upload), 1, 2, 5, 10, 15, 20, 30 min. or 1, 2, 3, 4, 6, 12, 24 hrs.

Communication Interfaces

Wired LAN Communication 100BASE-TX/10BASE-T (RJ45 Connector) Protocol : HTTP(*4), DHCP, DNS

USB Communication USB 2.0 (Mini-B connector)

Battery Life (*6)  Approx. 10 days to 1.5 years (depends on Auto-upload interval)

Operating Environment  Temperature: -10 to 60°C(*7) , Humidity: 90 %RH or less (no condensation)

Software (*8)

PC Software (Windows) TR7 for Windows, T&D Graph, T&D Data Server

Mobile Application (iOS, Android) T&D Thermo

*1:We do not handle the sale of Thermocouple sensors. Compatible wire sizes are as follows. Single Wire : Ø0.32 to Ø0.65 mm (AWG 28 - 22),

Twisted Wire : 0.08 to 0.32 mm2 (AWG 28 - 22), Ø0.12 mm or more in diameter, Stripping Length : 9 to 10 mm

*2:When Auto Upload is used frequently, the measurement of the internal sensor may rise by around 0.3°C.When using external power,

the data logger itself generates heat and the internal sensor will report a temperature much higher than ambient; we recommend using an external temperature sensor in this case.

*3:When continually used in environments with temperatures above 60°C, accuracy of humidity measurements will decrease over time. Also, humidity cannot be measured at temperatures below -20°C

*4:HTTP client. Proxy supported.

*5:When using PoE, use of STP (shielded) cables may cause PoE failure or device malfunction. We strongly recommend using UTP cables

*6:Battery life in the table above is for two AA Alkaline type batteries, and varies depending upon multiple factors including frequency of communication,

LAN environment, ambient temperature, recording interval, and battery performance. All estimates are based on operations carried out with a new battery and are in no way a guarantee of actual battery life.

*7:-10 to 45°C when using external power.

*8: Software on CD-ROM is not supplied with the product. Free software download and information on OS compatibility is available on the Software page of our website at tandd.com/software/.

The specifications listed above are subject to change without notice.

ภาพแสดงลักษณะการใช้งานเชื่อมต่อร่วมกับ Wired LAN, USB connection
